Nipples

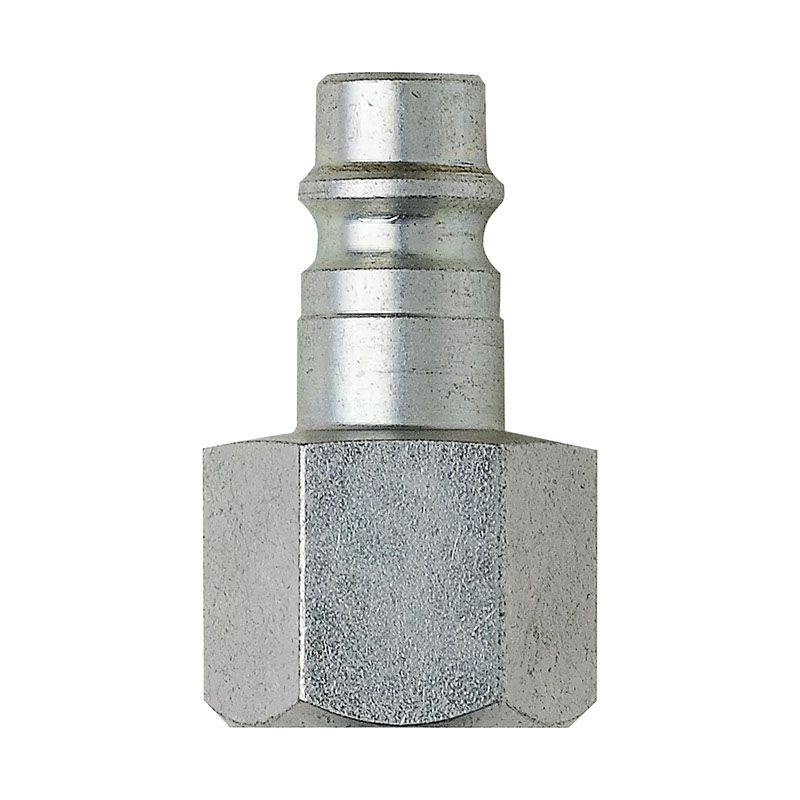

NIPPLE F076E 12 BSP product photo
Chicago Pneumatic nipples serve as connectors between hoses, pipes, and other pneumatic components. They allow air to flow smoothly within the system. Country of origin is SE. Customs tariff is 73079910

Technical Specifications

ImperialMetric
Power & Battery
Max Ambient Operating Temperature
100 °C
Min Ambient Operating Temperature
-20 °C
Air information
Air connection thread gender
Female
Air connection thread size (in)
1/2
Air connection thread type
BSP
Max dynamic air working pressure
16 bar
Max air flow
37 l/s
Design & Functions
Coupling profile
Europe 7.6
Main Material type
Hardened zinc plated steel
Product content
Single part
NIPPLE F076E 12 BSP product photo

NIPPLE F076E 12 BSP

6158105930

NIPPLE F076E 12 BSP
dimention
Package Dimensions 4.5 x 2 x 2 cm
weight
Package Weight 50 g

Benefits

Pressure Drop Minimization: ergonomic design eliminates air restriction, resulting in minimal pressure drop.
Rugged Environment Suitability: Chicago Pneumatic nipples are well-suited for rough environments.
