CP2008/10/12 Series - Shut-Off Screwdrivers

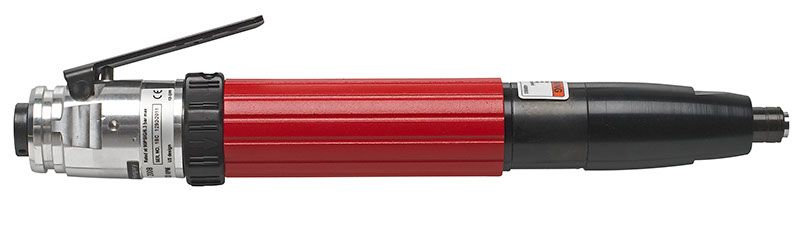

CP2008 product photo
The CP2008/10/12 Series are 1/4" hex straight shut-off clutch screwdrivers with high reliability and accuracy. The pneumatic screwdrivers feature a speed of up to 1,100/1,470 rpm to meet the demands for industrial performance. It features push-to-start or lever operation and one-hand reverse button for ergonomic handling. Country of origin is HU. Customs tariff is 84671190

Technical Specifications

ImperialMetric
Torque
Max torque in forward
4.3 Nm
Min torque in forward
0.4 Nm
Torque Control System
Shut-off-pneumatic valve
Design & Functions
Adjustment
Key
Body
Steel
Clutch housing
Steel
Clutch Type
Ball clutch
Handle type
Straight handle
Output drive size (in)
1/4
Output drive type
Hex
Output retainer type
Quick change
Reversible
Yes
Starting system
Lever
Speed
Free Speed
1100 rpm
Air consumption at free speed
6.5 l/s
Air information
Air inlet thread size (in)
1/8
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Size & Weight
Length (L)
275 mm
Weight
0.7 kg
Noise & vibrations
Sound Power
87 dB(A)
Sound Pressure
76 dB(A)
Vibration (m/s²)
<2.5
CP2008 product photo

CP2008

6151922008

1/4" Hex straight shut off reverse pneumatic screwdriver
dimention
Package Dimensions 38 x 18 x 6.5 cm
weight
Package Weight 989 g
THIS PRODUCT IS UNAVAILABLE
We have a better solution for replacement.
CP2622 product photo
CP2622

6151922622

Benefits

Accurate and durable shut-off clutch for various fastening
Low noise level
Robust aluminum body, even for heavy duty applications
Convenient straight push-to-start operation and one-hand reverse button for ergonomic handling
