CP0200 Series - Sand Rammers
Technical Specifications
Air information
Air consumption at load
8.4 l/s
Air inlet thread size (in)
3/8
Air inlet thread type
NPT
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
13 mm
Design & Functions
Blow per minute
1020
Energy
9.2 J
Main Material type
Steel
Starting system
Safety lever
Size & Weight
Bore diameter
22 mm
Butt diameter
51 mm
Length (L)
350 mm
Stroke
64 mm
Weight
3 kg
Noise & vibrations
Sound Power
106 dB(A)
Sound Pressure
95 dB(A)
Uncertainty vibration-K
6.1 m/s²
Vibration
19.4 m/s²

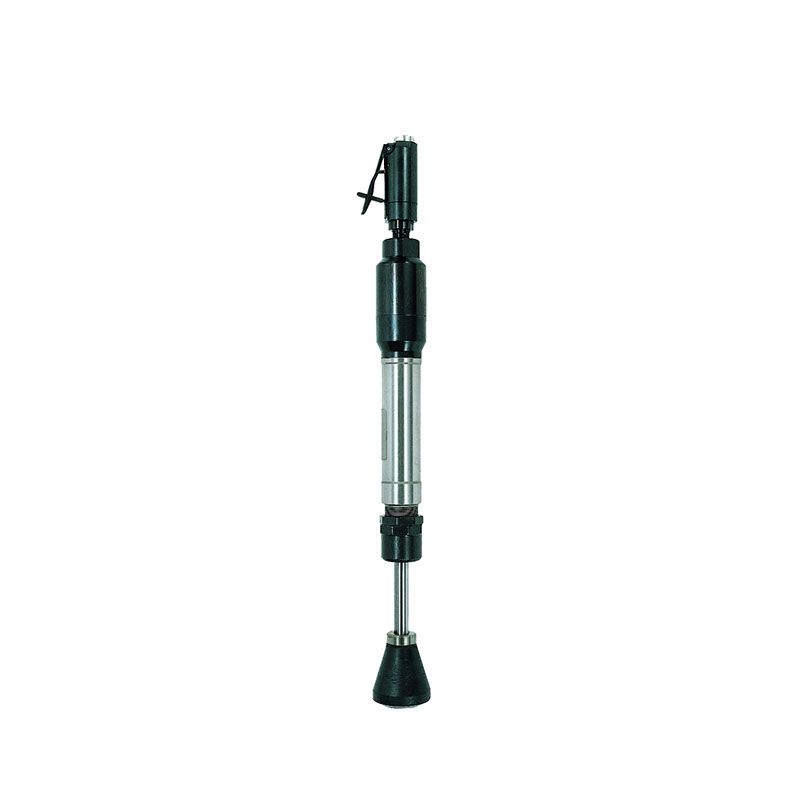

CP0200B22-2F
6151618040
Dimensions 54 x 10 x 8 cm
Weight 3.46 kg
