Spring retractor balancer

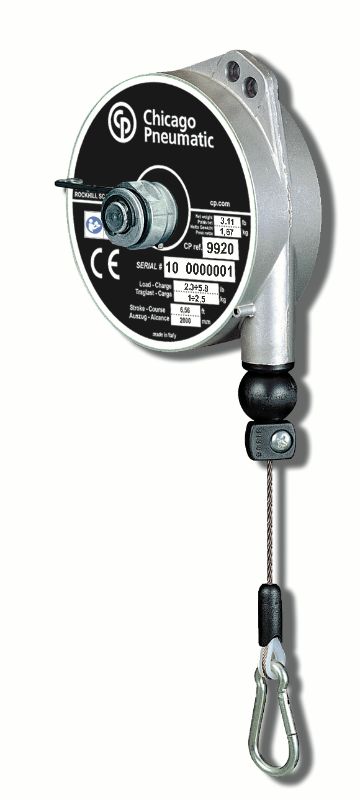

CP9923 BALANCER 6.0-8.0KG 13.2-17.6LB product photo
Designed to improve operator ergonomics while also improving your quality of production. The spring retractor balancers have a working load up to 33 lbs (15 Kg). They feature stainless steel cables with automatic load retraction and adjustable weight and height limits. In addition, the durable impact-resistant cast aluminum housing with safety suspension, helps to improve operator safety while increasing your productivity. Country of origin is IT. Control code is 84289090

Technical Specifications

ImperialMetric
Projeto e Funções
Max balancer load
8 kg
Largura (W)
146 mm
Altura (H)
352 mm
Stroke length (in)
78-3/4
Balancer type
Medium duty balancer
Min balancer load
6 kg
Total product weight
2.5 kg
Housing material
Aluminum
Depth (D)
87 mm
Stroke cable
Stainless steel
Stroke length (mm)
2000

CP9923 BALANCER 6.0-8.0KG 13.2-17.6LB

8941 0992 30

Benefits

Stainless steel cables to ensure high performance
Adjustable weight limit and adjustable height limit
Antifriction cable guide
Safety suspension
Inert spring drum assembly
PDF
CE Certificate
CP9923 BALANCER 6.0-8.0KG 13.2-17.6LB
View document
PDF
Safety instructions & safety data sheets
CP9923 BALANCER 6.0-8.0KG 13.2-17.6LB
View document
PDF
Operators manual
CP9923 BALANCER 6.0-8.0KG 13.2-17.6LB
View document
PDF
Exploded View
CP9923 BALANCER 6.0-8.0KG 13.2-17.6LB
View document
