Tambur pentru furtun

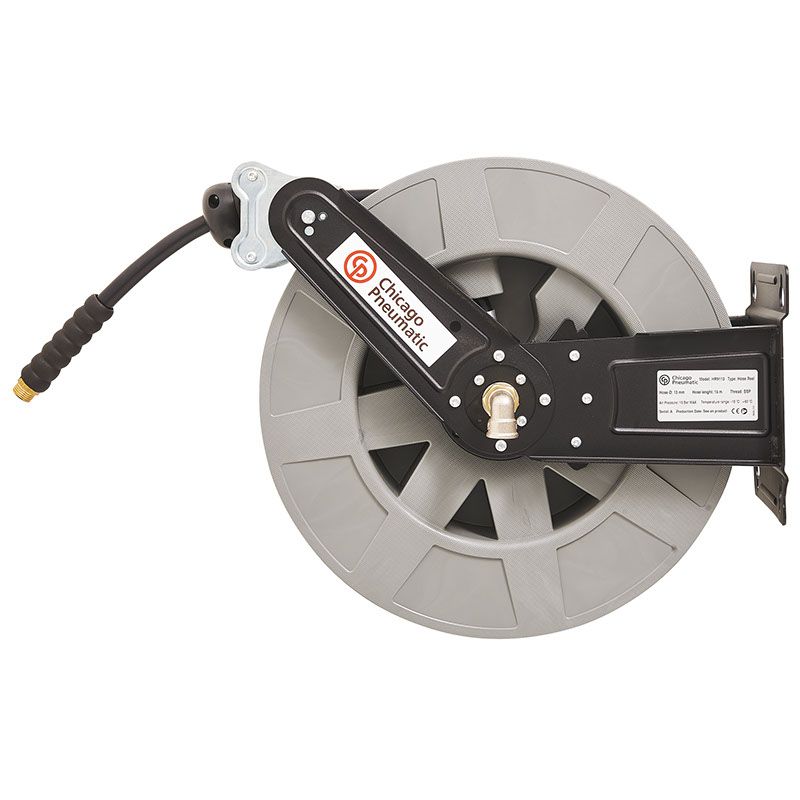

HOSE REEL 13 MM BSP HR9113 fotografie produs
HOSE REEL 13 MM BSP HR9113 fotografie produs
HOSE REEL 13 MM BSP HR9113 fotografie produs
HOSE REEL 13 MM BSP HR9113 fotografie produs
Țara de origine este IT. Tariful vamal este 39173300

Specificații tehnice

Design & Functions
Dimensiunea filetului de intrare (in)
1/2
Hose outer diameter (mm)
18
Hose inner diameter (in)
1/2
Endpoint thread size (in)
1/2
Hose outer diameter (in)
11/16
Housing material
Steel structure. plastic drum
Incoming thread type
BSP
Type of the hose reel
Open
Temperatura ambientală max. la Utilizare
60 °C
Hose length
15 m
Type of endpoint thread fixation
Fix
Presiune maximă dinamică de lucru a aerului
15 bar
Type of incoming thread fixation
90° turning
Incoming thread gender
Female
Tip material principal
KPU
Endpoint thread gender
Male
Lichide
Air/water
Total product weight
13.8 kg
Hose inner diameter (mm)
12.5
Temperatura ambientală min. la funcționare
14 ºF
Endpoint thread type
BSP

HOSE REEL 13 MM BSP HR9113

8940 1720 03
dimention
Dimensions 51 x 28 x 54 cm
weight
Weight 13.2 kg
