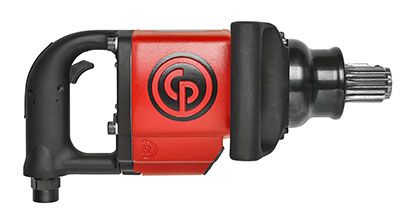

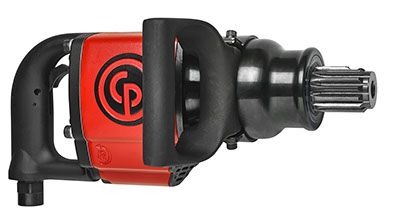

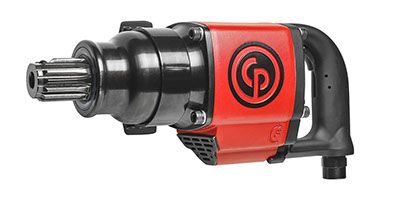

CP0611 Series - Impact Wrenches
Technical Specifications
Design & Functions
Clutch housing
Steel
Starting system
Trigger
Side handle
Yes
Max dynamic air working pressure
6.3 bar
Output retainer type
Hole
Clutch lubrication type
Grease
Torque limited
No
Max torque reverse
3790 Nm
Handle type
D-Handle
Output drive type
#5 Spline
Sound Power
110 dB(A)
Sound Pressure
99 dB(A)
Vibration (m/s²)
18
Length (L)
360 mm
Min working torque fwd
1.22 Nm
Min hose diam (5 m hose length)
25 mm
Uncertainty vibration-K
4.1 m/s²
Output drive size (in)
#5 Spline
Blow per minute
1020
Body
Aluminum
Weight
10.4 kg
Min hose diam (16 ft hose length)
1 in
Impact mecanism
2-jaws
Air inlet thread size (in)
1/2
Max working torque fwd
2440 Nm
Free Speed
3500 rpm
CP0611-D28L
6151 5901 70
