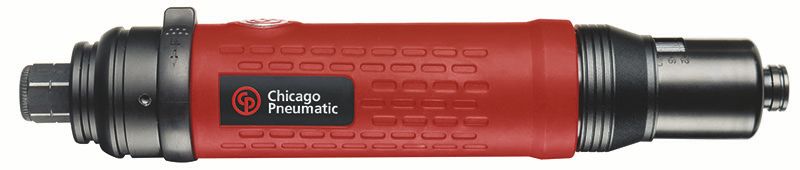

CP2621/CP2622 Series - Shut-Off Screwdrivers
Technical Specifications
Torque
Max torque in forward
6.5 Nm
Min torque in forward
0.8 Nm
Torque Control System
Shut-off-pneumatic valve
Design & Functions
Adjustment
Rotative ring
Body
Steel
Clutch housing
Steel
Clutch Type
Ball clutch
Handle type
Straight handle
Main Material type
Aluminium, Composite over-sleeve
Output drive size (in)
1/4
Output drive type
Hex
Output retainer type
Quick change
Reversible
Yes
Starting system
Push start
Speed
Free Speed
1000 rpm
Air consumption at free speed
14 l/s
Air information
Air inlet thread size (in)
1/4
Air inlet thread type
NPT
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power
87 dB(A)
Sound Pressure
76 dB(A)
Vibration (m/s²)
<2.5
Size & Weight
Length (L)
232 mm
Weight
0.8 kg
CP2621
6151922621
