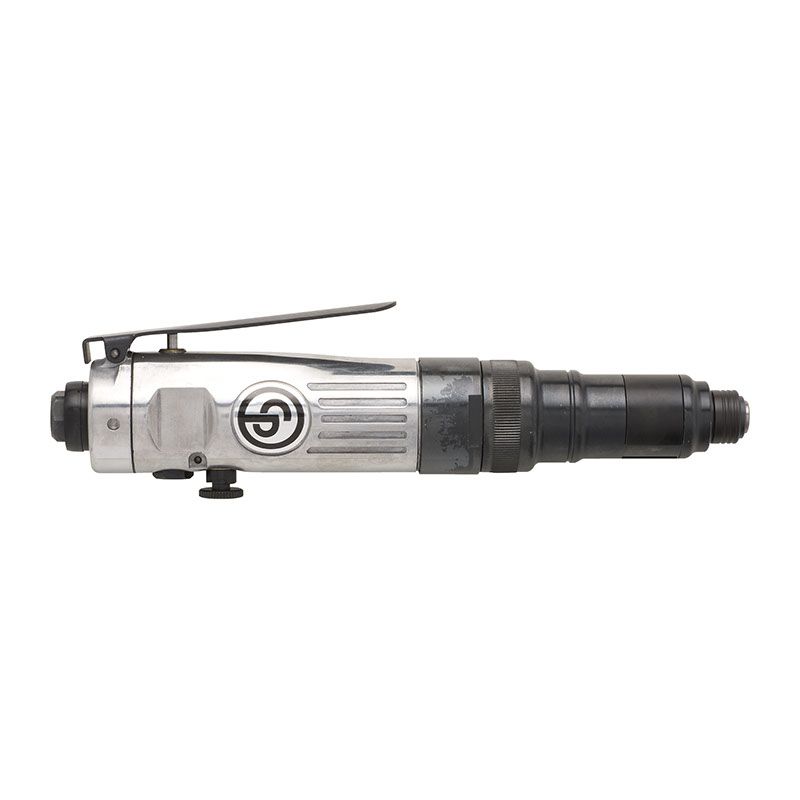

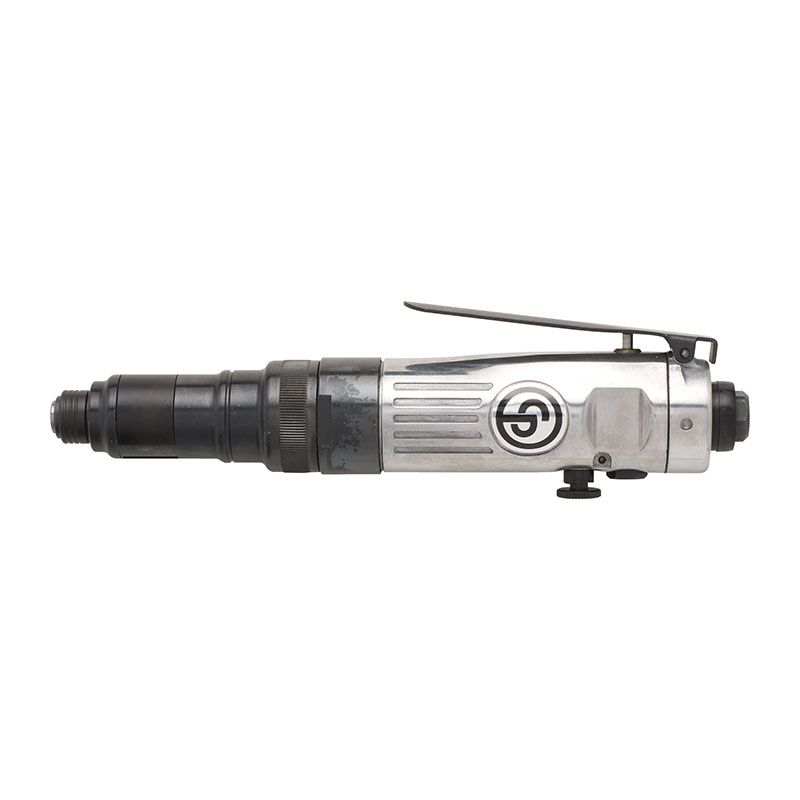

CP782/CP783 Series - Cushion Screwdrivers
Technical Specifications
Design & Functions
Output drive size (in)
1/4
Torque Control System
Non shut-off-clutch
Weight
1.13 kg
Max torque in forward
4.97 Nm
Clutch Type
Cushion clutch
Body
Aluminum
Adjustment
Rotative ring
Length (L)
245 mm
Air consumption at free speed
7.6 l/s
Max dynamic air working pressure
63 bar
Starting system
Lever
Output drive type
Hex
Sound Pressure
93.9 dB(A)
Air inlet thread size (in)
1/4
Reversible
Yes
Min torque in forward
3.5 Nm
Min hose diam (5 m hose length)
10 mm
Output retainer type
Quick change
Handle type
Straight handle
Free Speed
1800 rpm
Sound Power
104.9 dB(A)
Min hose diam (16 ft hose length)
0.38 in
Clutch housing
Steel
