CP86 Series - Battery torque wrenches
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Design & Functions
Height (H)
11.22 in
Reversible
Yes
Sound Pressure
83 dB(A)
Length (L)
12.52 in
Output drive size (in)
3/4
Min torque in forward
221 ft.lbf
Starting system
Double-trigger
Reaction bar type
S-type
Torque Control System
Shut-off-current control
Max torque in forward
959 ft.lbf
Output drive type
Sq
Weight without reaction arm
8.16 lb
Recommended Torque
767 ft.lbf
Battery capacity
2.5 Ah
Suspension option
Optional
Battery Weight
1.76 lb
Battery voltage
36 V
Weight with reaction arm
9.92 lb
Max torque reverse
959 ft.lbf
Weight
8.16 lb
Max Ambient Operating Temperature
140 ºF
Battery type
Lithium-ion
Adjustment
Digital
Accuracy (%)
±4 %
Max Ambient Storage Temperature
140 ºF
Max Recommended Ambient Charging Temperature
113 ºF
Main Material type
Steel
Vibration (m/s²)
<2,5
Output retainer type
Hole
Free Speed
10 rpm
Min Ambient Operating Temperature
32 ºF
Power weight ratio
350 Nm/kg
Handle type
Pistol
Joint Type
Hard & Soft
Min Recommended Ambient Charging Temperature
32 ºF
Width (W)
3.03 in
Sound Power (dba)
<72
Dimensional Drawings
J
2.64 in
K
2.99 in
M
1.38 in
I
4.57 in
B
2.48 in
E
3.5 in
F
1.26 in
D
5.83 in
A
1.26 in
C
5.12 in

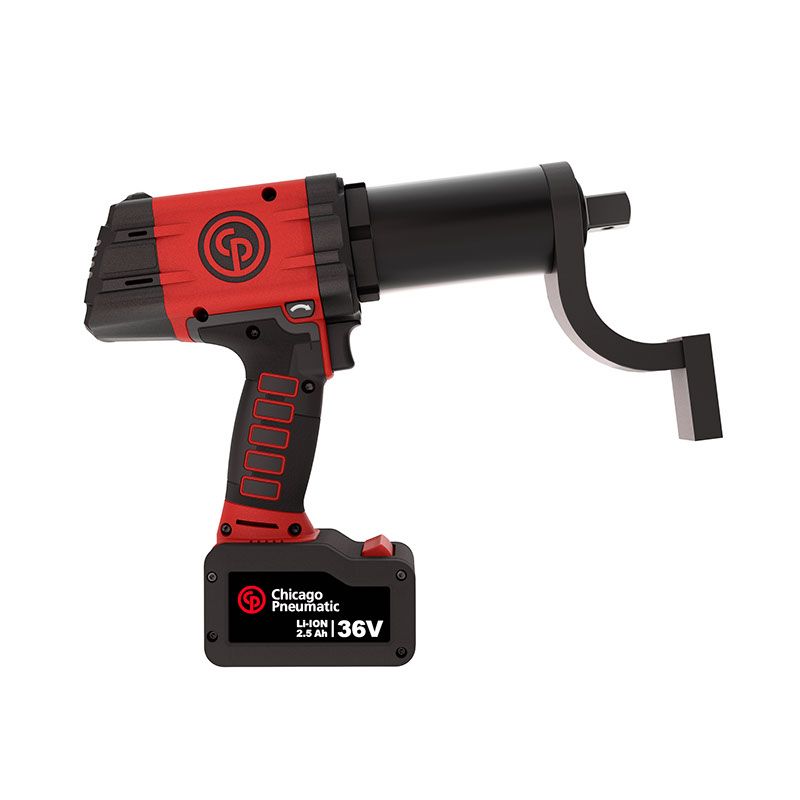

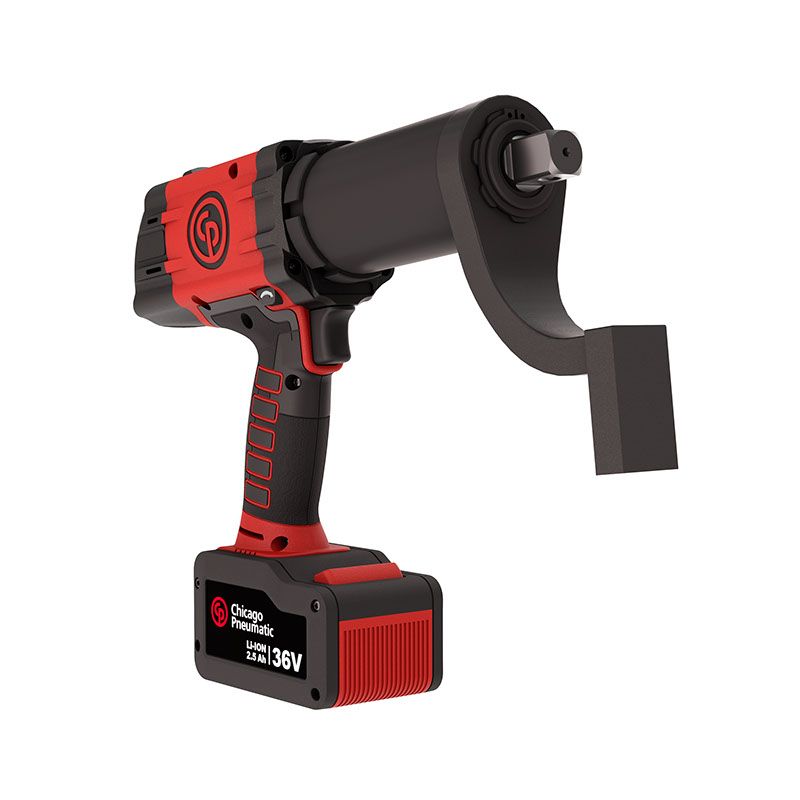

CP8613TC PACK 36V 2.5AH
6151 5706 70
