CP86 Series - Battery torque wrenches
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Design & Functions
Accuracy (%)
±4 %
Adjustment
Digital
Battery capacity
2.5 Ah
Battery type
Lithium-ion
Battery voltage
36 V
Battery Weight
1.76 lb
Height (H)
11.22 in
Length (L)
12.52 in
Width (W)
3.03 in
Free Speed
10 rpm
Handle type
Pistol
Joint Type
Hard & Soft
Main Material type
Steel
Max Ambient Operating Temperature
140 ºF
Max Ambient Storage Temperature
140 ºF
Max Recommended Ambient Charging Temperature
113 ºF
Max torque in forward
959 ft.lbf
Max torque reverse
959 ft.lbf
Min Ambient Operating Temperature
32 ºF
Min Ambient Storage Temperature
-4 ºF
Min Recommended Ambient Charging Temperature
32 ºF
Min torque in forward
221 ft.lbf
Output drive size (in)
3/4
Output drive type
Sq
Output retainer type
Hole
Power weight ratio
350 Nm/kg
Recommended Torque
767 ft.lbf
Reversible
Yes
Sound Pressure
83 dB(A)
Starting system
Double-trigger
Suspension option
Optional
Torque Control System
Shut-off-current control
Vibration (m/s²)
<2.5
Weight
8.16 lb
Weight without reaction arm
8.16 lb
Dimensional Drawings
A
1.26 in
B
2.48 in
C
5.12 in
D
5.83 in
E
3.5 in
F
1.26 in
I
4.57 in
J
2.64 in
K
2.99 in

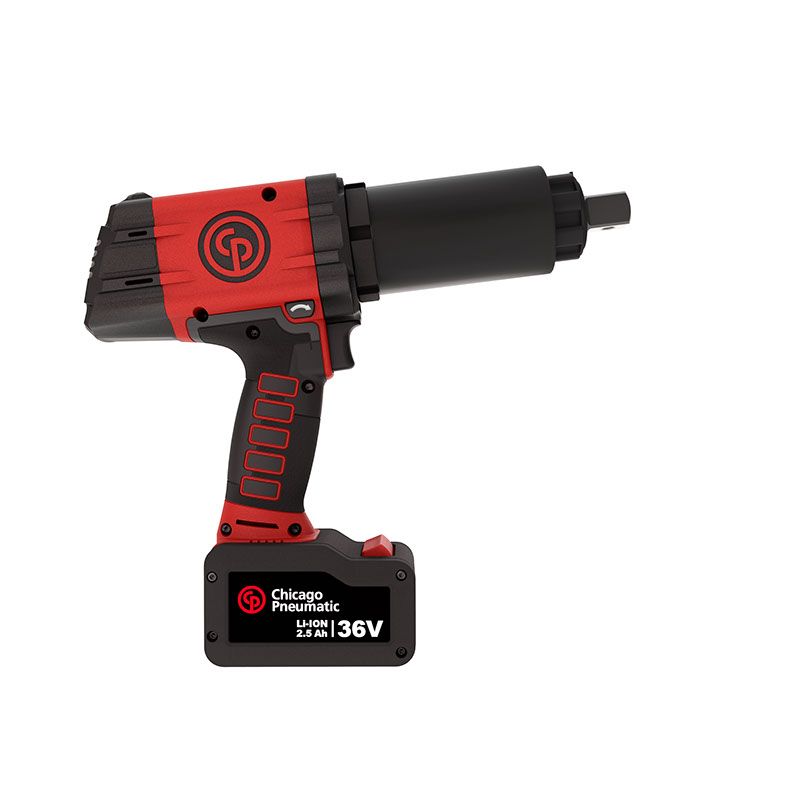

CP8613TC WOB PACK 36V 2.5AH
6151 5707 10
Dimensions 41 x 50 x 60 cm
Weight 13 kg
