CP86 Series - Battery torque wrenches
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Design & Functions
Height (H)
11.22 in
Max Recommended Ambient Charging Temperature
113 ºF
Reversible
Yes
Sound Pressure
83 dB(A)
Length (L)
16.1 in
Output drive size (in)
1
Min torque in forward
738 ft.lbf
Starting system
Double-trigger
Recommended Torque
2420 ft.lbf
Reaction bar type
S-type included
Torque Control System
Shut-off-current control
Width (W)
3.98 in
Min Recommended Ambient Charging Temperature
32 ºF
Weight with reaction arm
23.3 lb
Max torque in forward
3020 ft.lbf
Output drive type
Sq
Weight without reaction arm
18.9 lb
Battery capacity
2.5 Ah
Joint Type
Hard & Soft
Suspension option
Optional
Max Ambient Operating Temperature
140 ºF
Battery Weight
1.76 lb
Handle type
Pistol
Battery voltage
36 V
Max torque reverse
3020 ft.lbf
Power weight ratio
470 Nm/kg
Min Ambient Operating Temperature
32 ºF
Weight
18.9 lb
Free Speed
3 rpm
Output retainer type
Hole
Battery type
Lithium-ion
Vibration (m/s²)
<2,5
Sound Power (dba)
<72
Adjustment
Digital
Main Material type
Steel
Accuracy (%)
±4 %
Max Ambient Storage Temperature
140 ºF
Dimensional Drawings
J
2.64 in
K
2.99 in
M
1.65 in
I
4.57 in
E
3.5 in
D
9.41 in
B
3.19 in
C
8.46 in
F
1.5 in
A
1.97 in

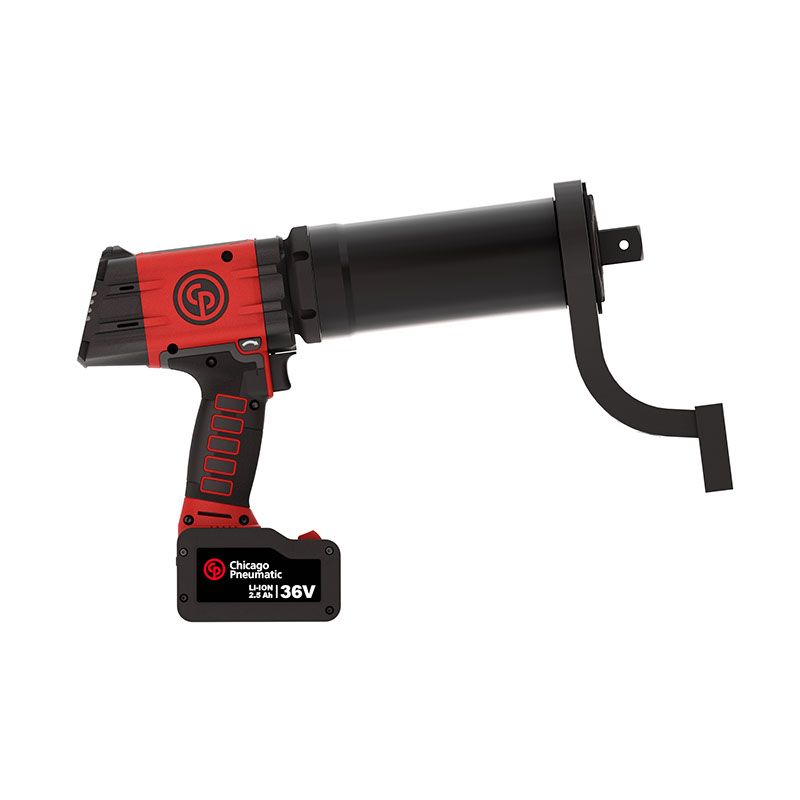

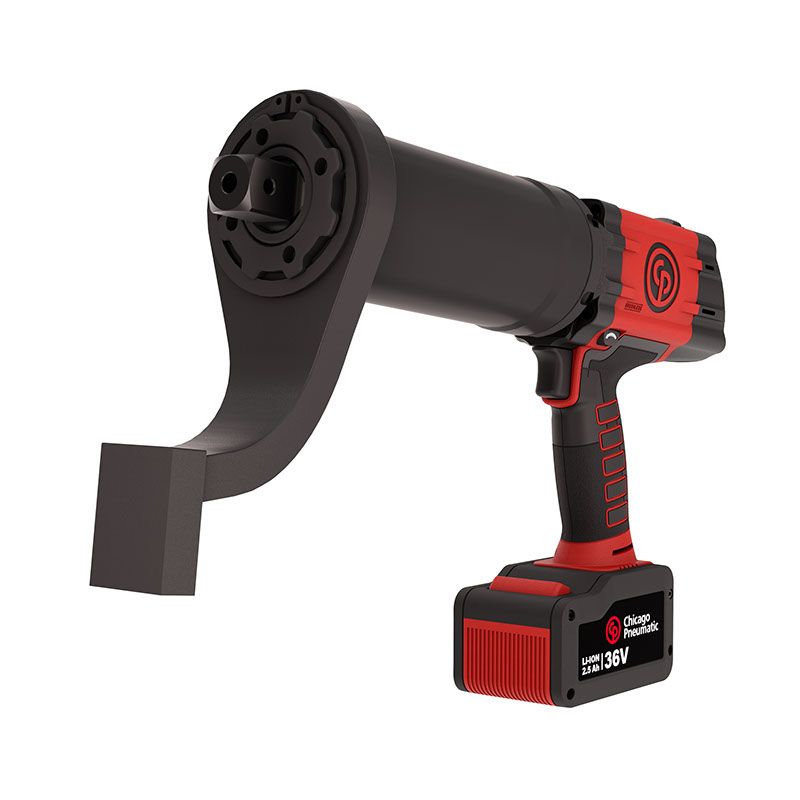

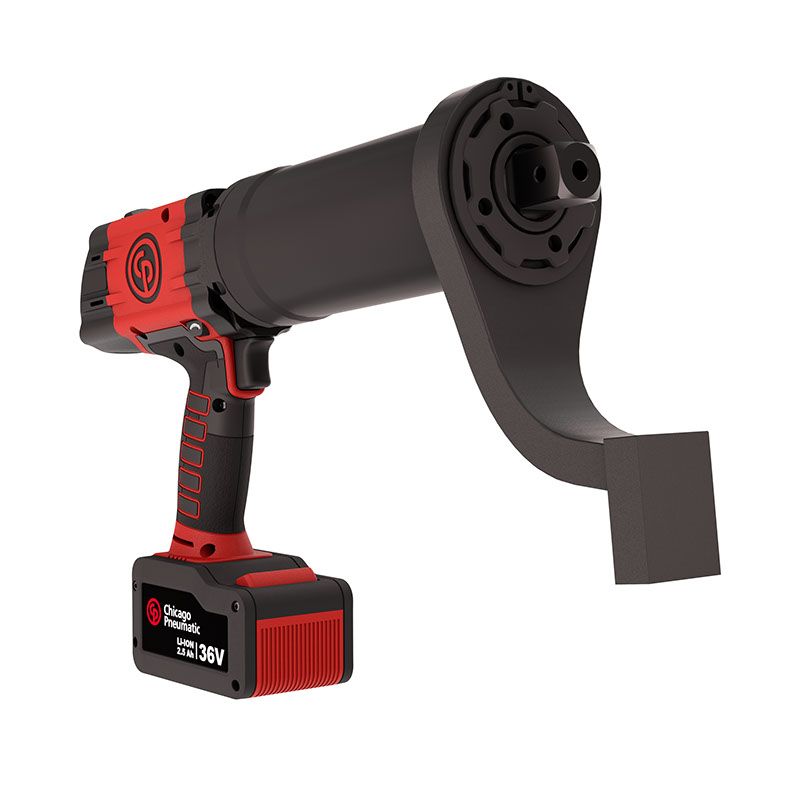

CP8641C PACK 36V 2.5AH
6151 5700 70
