CP86 Series - Battery torque wrenches
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Included Items
1 CP8681, 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic caseTechnical Specifications
Battery information
Battery capacity
2.5 Ah
Battery type
Lithium-ion
Battery voltage
36 V
Max Ambient Operating Temperature
140 ºF
Max Recommended Ambient Charging Temperature
113 ºF
Min Ambient Operating Temperature
32 ºF
Min Recommended Ambient Charging Temperature
32 ºF
Noise & vibrations
Sound Power (dba)
<72
Sound Power
64 dB(A)
Sound Pressure
83 dB(A)
Vibration (m/s²)
<2,5
Storage
Max Ambient Storage Temperature
140 ºF
Min Ambient Storage Temperature
-4 ºF
Size & Weight
Battery Weight
1.76 lb
Height (H)
11.22 in
Length (L)
16.3 in
Width (W)
4.17 in
Power weight ratio
710 Nm/kg
Weight
25.1 lb
Weight without reaction arm
25.1 lb
Weight with reaction arm
34.6 lb
Speed
Free Speed
1 rpm
Torque
Max torque in forward
5970 ft.lbf
Max torque reverse
5970 ft.lbf
Min torque in forward
1480 ft.lbf
Recommended Torque
4780 ft.lbf
Torque Control System
Shut-off-current control
Design & Functions
Accuracy (%)
±4 %
Adjustment
Digital
Handle type
Pistol
Joint Type
Hard & Soft
Main Material type
Steel
Output drive size (in)
1-1/2
Output drive type
Sq
Output retainer type
Hole
Reaction bar type
S-type
Reversible
Yes
Spline type
0
Starting system
Double-trigger
Suspension option
Optional

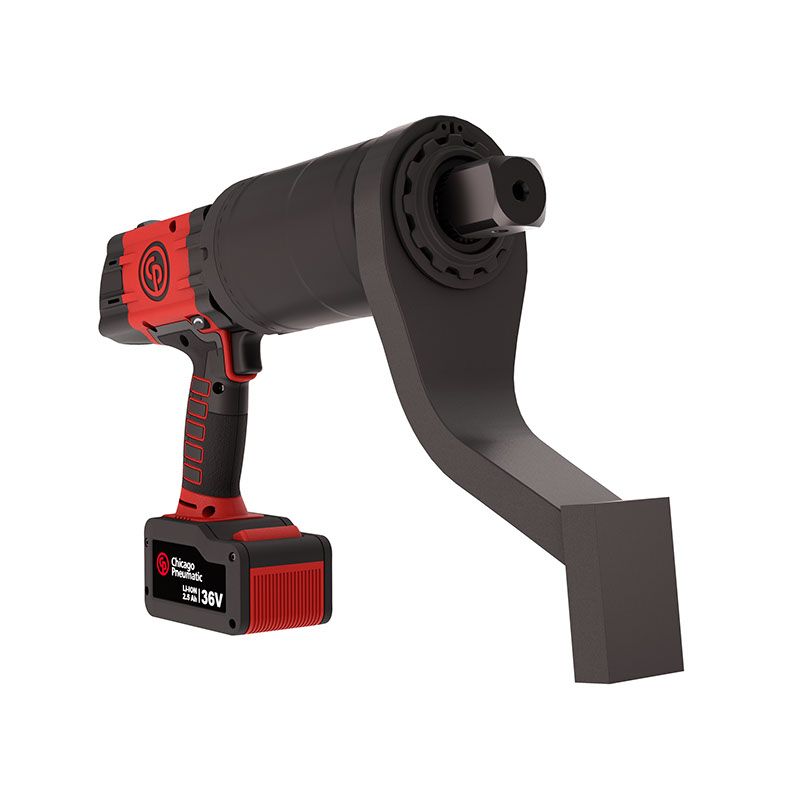

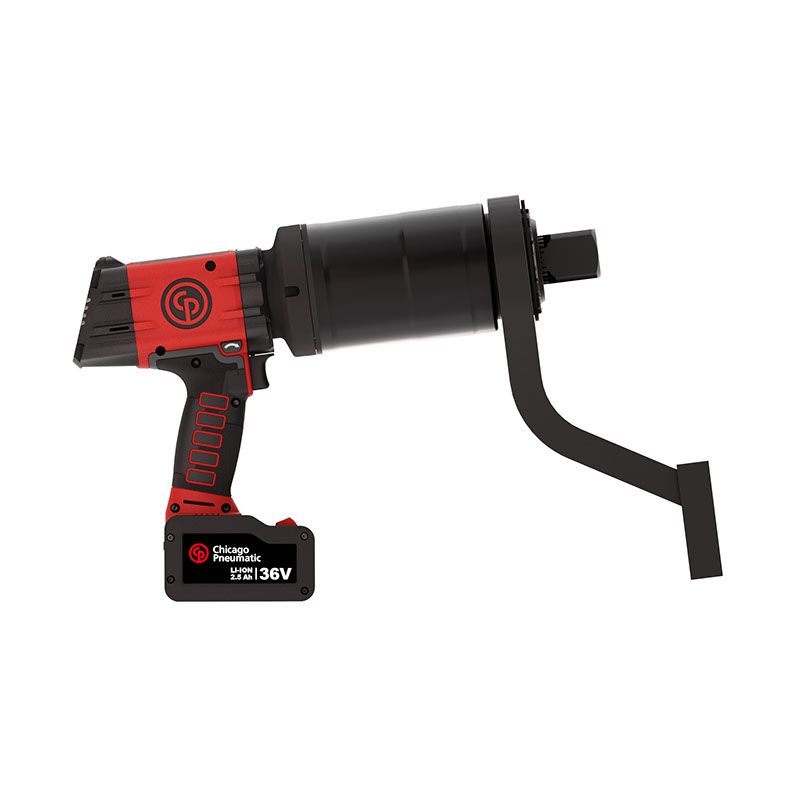

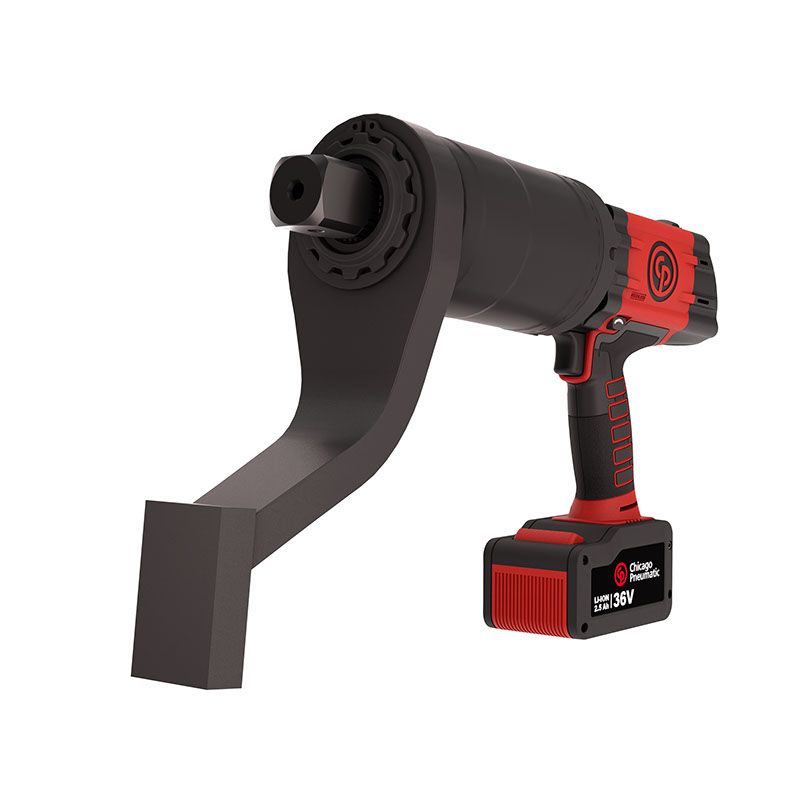

CP8681 PACK 36V 2.5AH
6151570090
Dimensions 60 x 40 x 50 cm
Weight 24.8 kg
