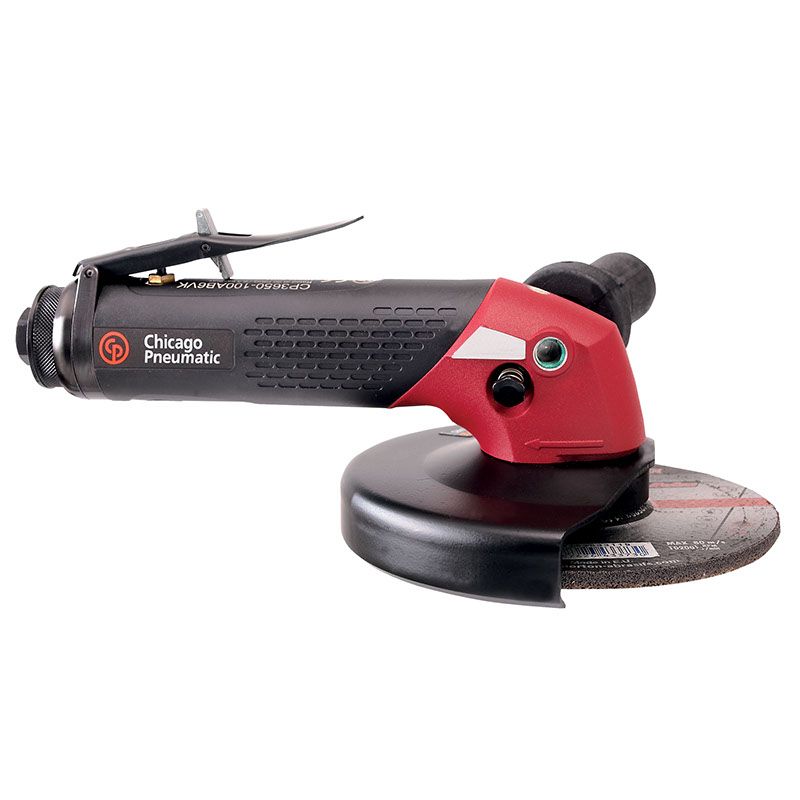

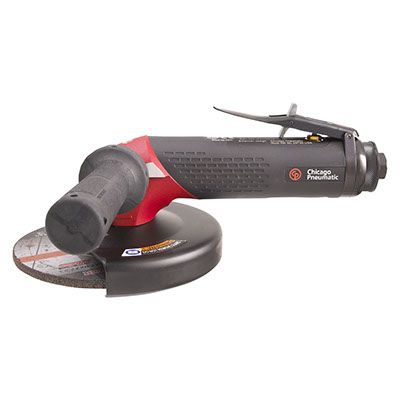

CP3650 Series - Angle Grinders
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Speed
Free Speed
10000 rpm
Air consumption at free speed
42 cfm
Design & Functions
Autobalancer
Yes
Guard max rotation
165 °
Guard positions
7
Main Material type
Aluminium, Composite over-sleeve
Output Spindle Thread
5/8-11 UNC
Rotative guard type
Screws
Spindle lock
Yes
Starting system
Safety lever
Swiveling guard
Key
Wheel/Disc diameter (in)
6
Wheel/Disc diameter (mm)
150
Noise & vibrations
Sound Power
90 dB(A)
Sound Pressure
79 dB(A)
Uncertainty vibration-K
4.9 ft/s²
Vibration
17.1 ft/s²
Air information
Air consumption at load
67 cfm
Air inlet thread size (in)
3/8
Air inlet thread type
BSP
Max dynamic air working pressure
90 psi
Min hose diam (16 ft hose length)
0.5 in
Min hose diam (5 m hose length)
13 mm
Power
Max power
2.41 hp
Size & Weight
Length (L)
9.37 in
Side to Center
1.06 in
Weight
4.19 lb
CP3650-100AB6VK
6151607300
