CP7540/45/50 Series - Angle Grinders
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Speed
Free Speed
12000 rpm
Air consumption at free speed
19 cfm
Design & Functions
Autobalancer
No
Guard positions
0
Main Material type
Aluminium, Composite over-sleeve
Output Spindle Thread
5/8-11 UNC
Rotative guard type
Lock
Spindle lock
No
Starting system
Safety lever
Swiveling guard
Keyless
Wheel/Disc diameter (in)
4-1/2
Wheel/Disc diameter (mm)
115
Noise & vibrations
Sound Power
96 dB(A)
Sound Pressure
85 dB(A)
Uncertainty vibration-K
6.9 ft/s²
Vibration
23 ft/s²
Air information
Air consumption at load
40 cfm
Air inlet thread size (in)
1/4
Air inlet thread type
NPT
Max dynamic air working pressure
90 psi
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Power
Max power
1.13 hp
Size & Weight
Length (L)
10.63 in
Weight
3.53 lb

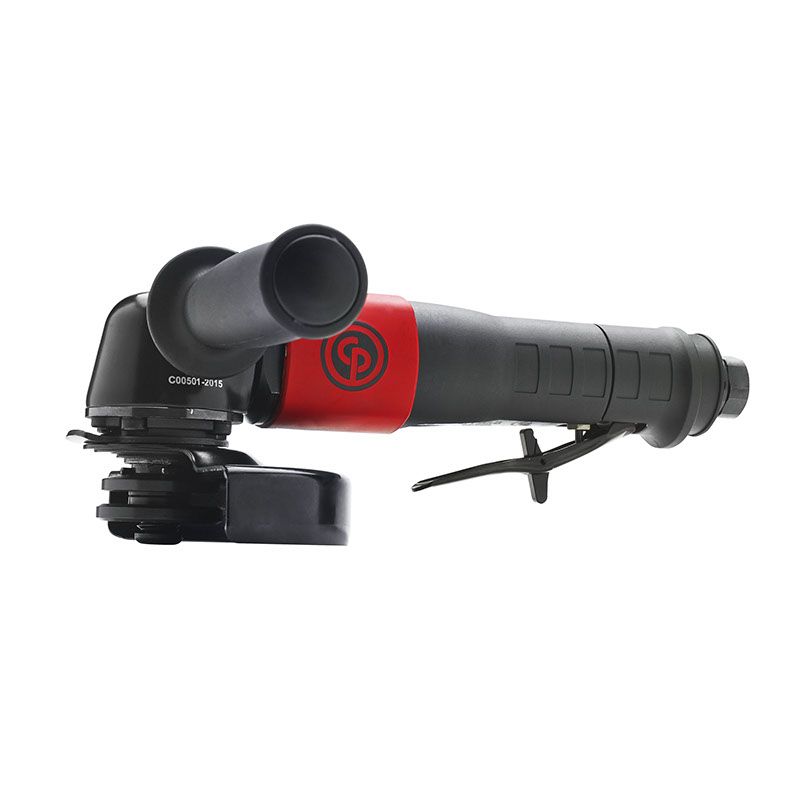

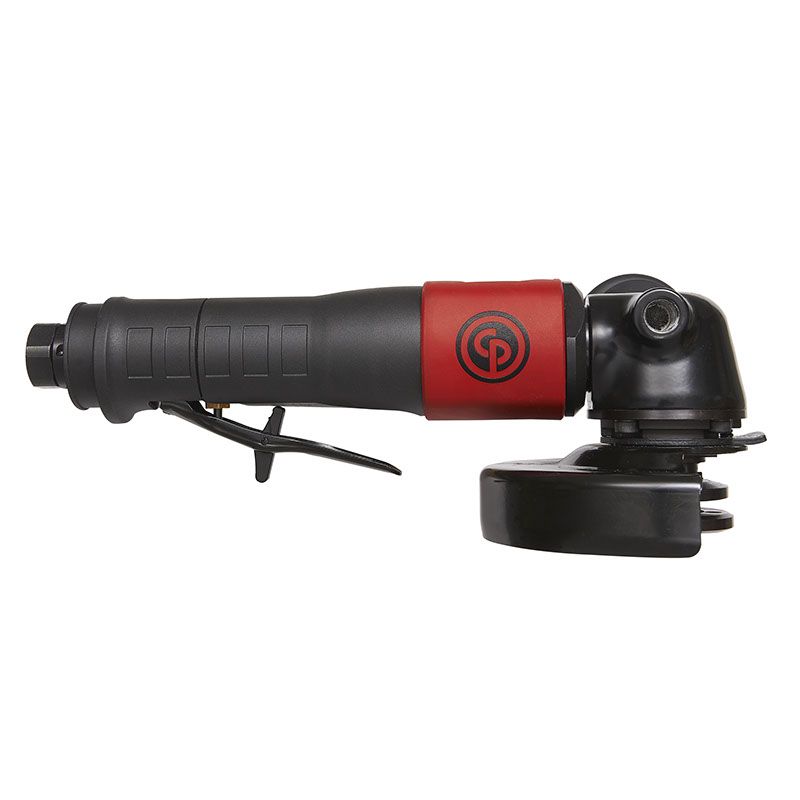

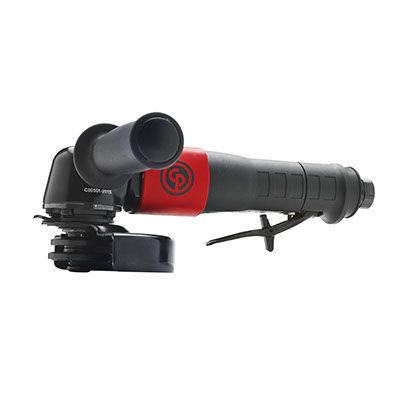

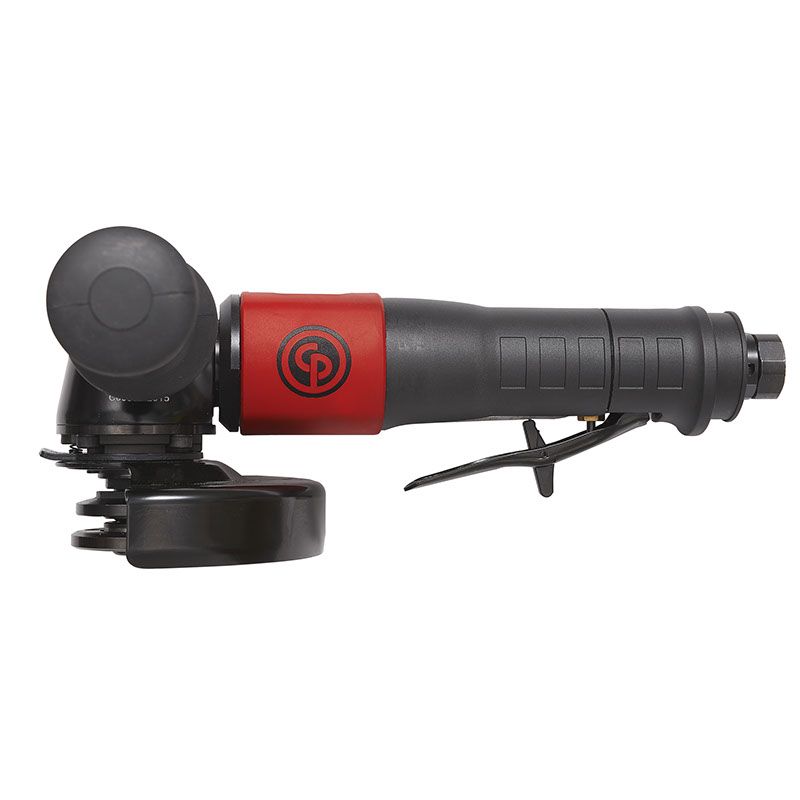

CP7545-B
8941075452
