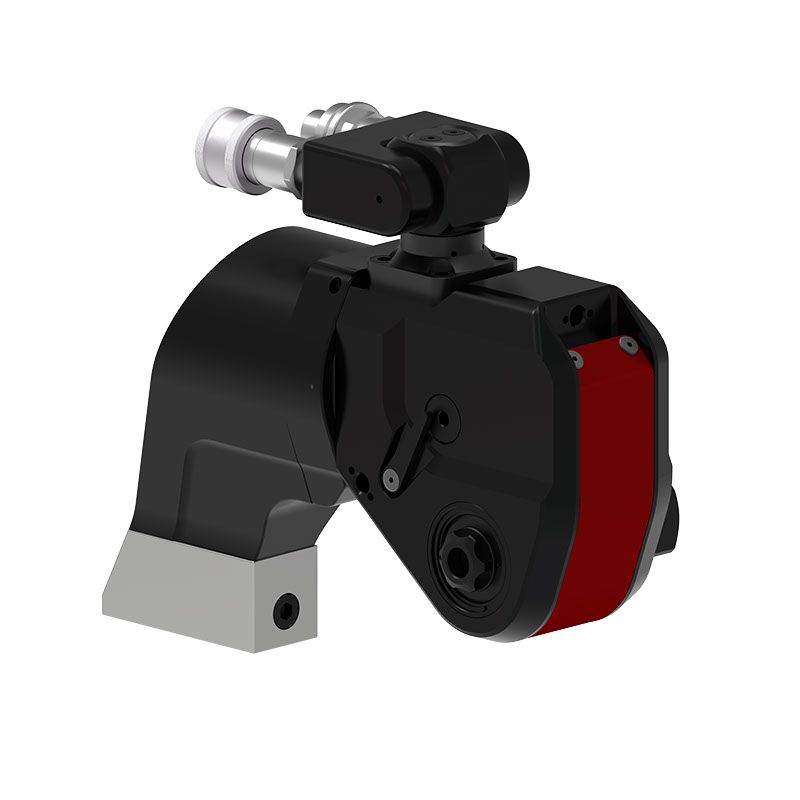

THS - Square Drive Hydraulic Torque Tools
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Included Items
CP THS Series Square Drive tools are delivered with calibration certificate, adjustable handle, and molded caseTechnical Specifications
Air information
Max power supply hydraulic pressure range
10000 psi
Min power supply hydraulic pressure range
1000 psi
Torque
Max torque
11500 ft.lbf
Min torque
1730 ft.lbf
Design & Functions
Output drive size (in)
1-1/2
Output drive type
Sq
Coupling Type
Twin-Screw In
Battery information
Max Ambient Operating Temperature
104 ºF
Min Ambient Operating Temperature
-4 ºF
Noise & vibrations
Sound Pressure
70 dB(A)
Size & Weight
Height (H)
7.68 in
Height (H2)
7.68 in
Length (L)
12.32 in
Length (L2)
8.19 in
Width (W)
3.94 in
Width (W2)
4.65 in
Width (W3)
2.68 in
Radius
1.93 in
Weight
35.2 lb
General
Energy type
Hydraulic
Family
Hydraulic tools
Subfamily
Square drive wrenches
THS10-T
6151551030
Package Dimensions 57 x 43 x 24 cm
Package Weight 17.6 kg
