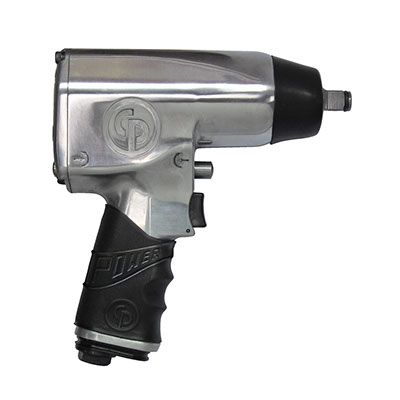

CP734 Series - Impact Wrenches
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Torque
Max working torque fwd
310 ft.lbf
Max torque reverse
425 ft.lbf
Min working torque fwd
25.1 ft.lbf
Torque limited
No
Air information
Air inlet thread size (in)
1/4
Max dynamic air working pressure
90 psi
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power
104 dB(A)
Sound Pressure
93 dB(A)
Uncertainty vibration-K
10.8 ft/s²
Vibration (m/s²)
7.2
Vibration
23.6 ft/s²
Speed
Free Speed
8400 rpm
Size & Weight
Length (L)
7.52 in
Power weight ratio
240 Nm/kg
Weight
5.11 lb
Design & Functions
Blow per minute
1020
Body
Aluminum
Clutch housing
Aluminum
Clutch lubrication type
Oil bath
Handle type
Pistol
Impact mecanism
Pin clutch
Main Material type
Aluminium
Output drive size (in)
1/2
Output drive type
Sq
Output retainer type
Friction ring
Starting system
Trigger
