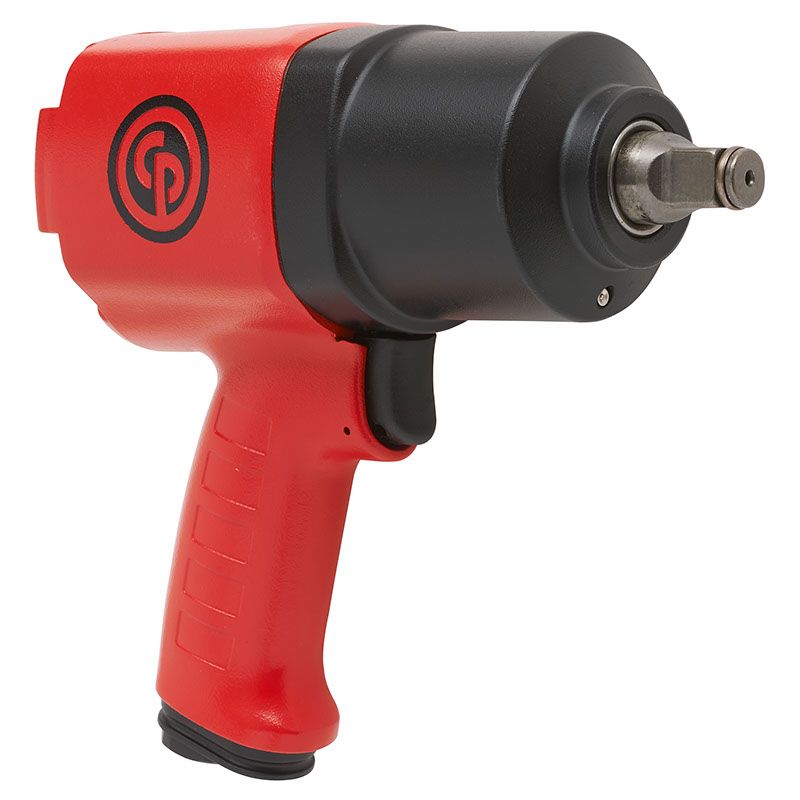

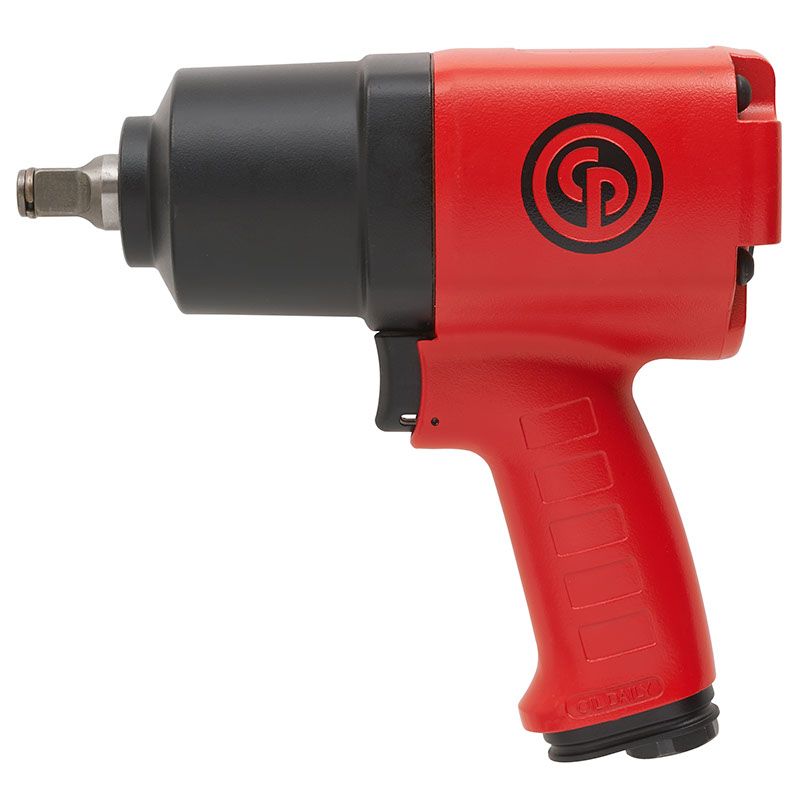

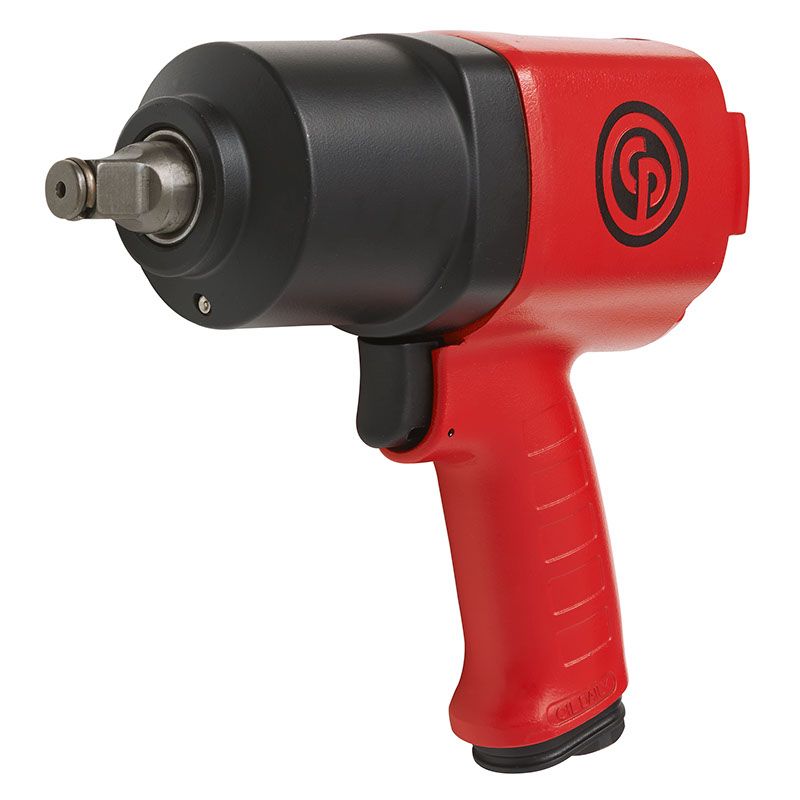

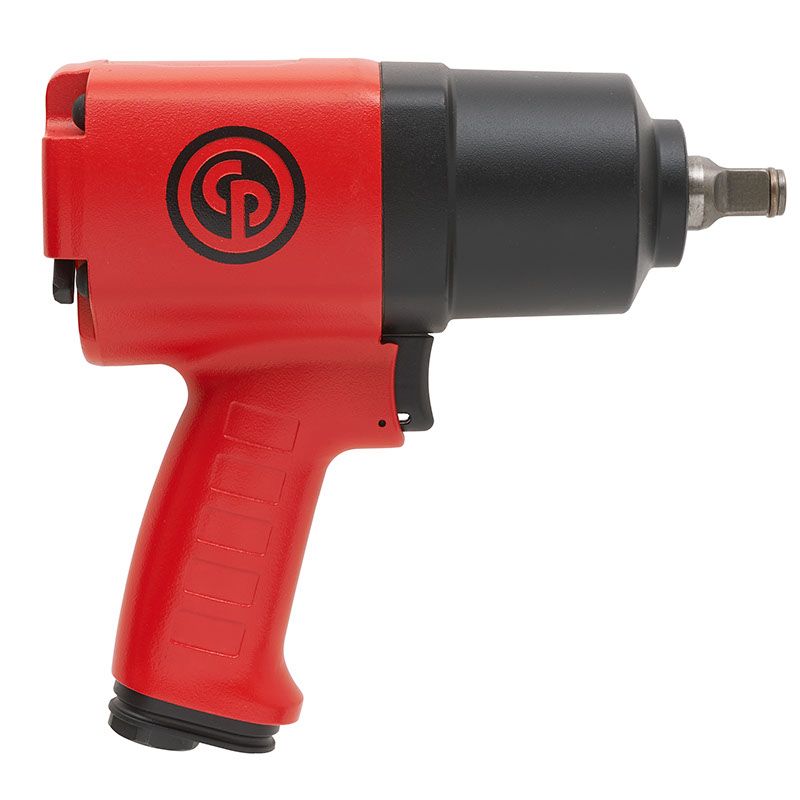

CP7736 Series - Impact Wrenches
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Torque
Max working torque fwd
568 ft.lbf
Max torque reverse
664 ft.lbf
Min working torque fwd
50.9 ft.lbf
Torque limited
No
Air information
Air inlet thread size (in)
1/4
Max dynamic air working pressure
90 psi
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Pressure
93.8 dB(A)
Uncertainty vibration-K
7.2 ft/s²
Speed
Free Speed
10000 rpm
Size & Weight
Length (L)
7.56 in
Side to Center
2.76 in
Weight
5.69 lb
Design & Functions
Body
Aluminum
Clutch housing
Steel
Clutch lubrication type
Grease
Handle type
Pistol
Impact mecanism
Twin hammer
Output drive size (in)
1/2
Output drive type
Sq
Output retainer type
Friction ring
Starting system
Trigger
CP7736
8941077360
Dimensions 21.5 x 21 x 7.5 cm
Weight 2.87 kg
