CP7600 Series - BlueTork Nutrunners
CP7600C-R product photo
CP7600C-R product photo
CP7600C-R product photo
CP7600C-R product photo

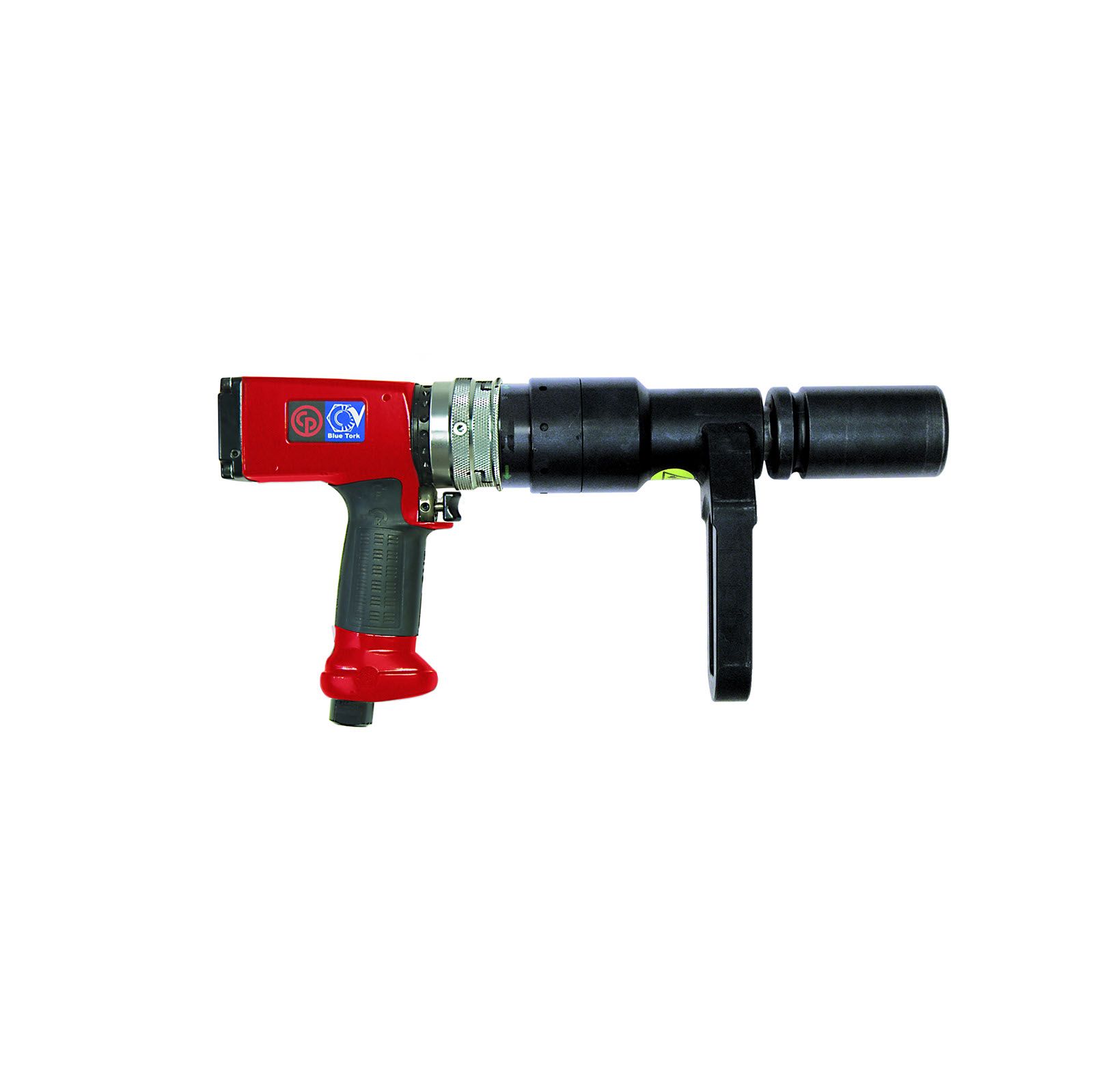

The CP7600 BlueTork pneumatic nutrunner is intended for bus and truck maintenance companies. It offers a shut-off torque-controlled solution in safe condition to tighten nuts of trucks and buses, preventing over-tightening without impacting. The CP7600 series is available in 7 models: Cup reversible with 1 torque preset, cup reversible with 4 torque presets, extended cup reversible with 1 torque preset, extended cup reversible with 4 torque presets, blade non-reversible 1 torque preset, blade reversible 1 torque preset, blade reversible 4 torque presets.
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Design & Functions
Reaction bar type
Blade & Cup not included
Reversible
Yes
Length (L)
13.58 in
Output drive size (in)
1
Sound Pressure
79 dB(A)
Weight
16.3 lb
Max dynamic air working pressure
100 psi
Free Speed
100 rpm
Min hose diam (5 m hose length)
13 mm
Sound Power
90 dB(A)
Max torque in forward
664 ft.lbf
Air consumption at free speed
40 cfm
Output drive type
Sq
Vibration (m/s²)
<2.5
Output retainer type
Hole
Adjustment
Key
Torque Control System
Shut-off-pneumatic valve
Air inlet thread type
BSPP
Min torque in forward
332 ft.lbf
Air inlet thread size (in)
3/8
Starting system
Trigger
Max torque reverse
664 ft.lbf
Handle type
Pistol

CP7600C-R

8941 0760 31
1" SHUT OFF VALVE BAR CUP PNEUMATIC NUTRUNNER
dimention
Dimensions 57.1 x 18.2 x 29.6 cm
weight
Weight 7.05 kg

Benefits

Air Shut-off torque control at preset torque
Selection of up to 4 calibrated tightening torques with high accuracy
Short version with CUPS reaction bar optional
Low noise level (<77dB)
Low vibration increases operator comfort for greater productivity. (<2.5 m/s²)
