CP7600 Series - BlueTork Nutrunners

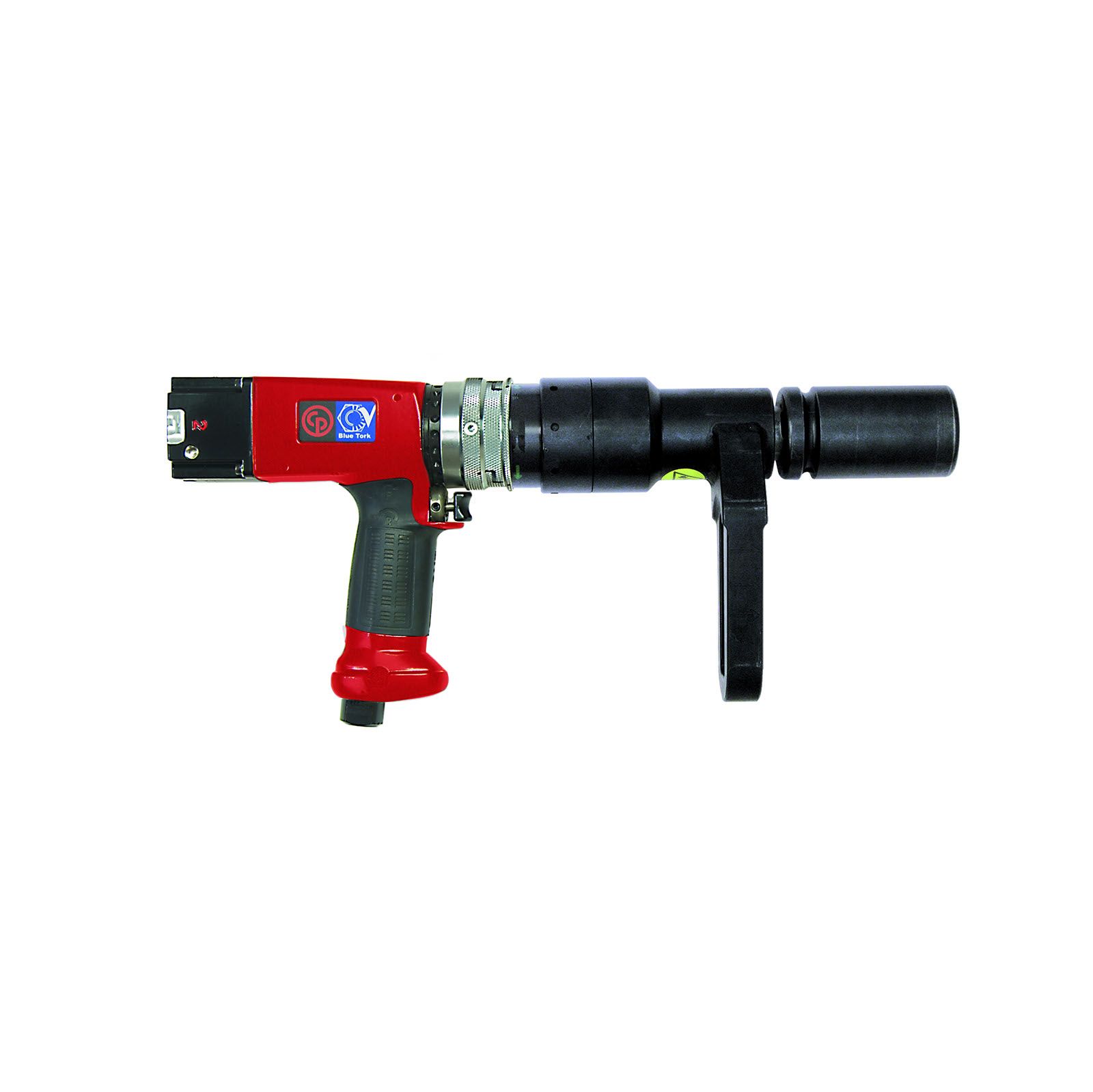

CP7600C-R4P product photo

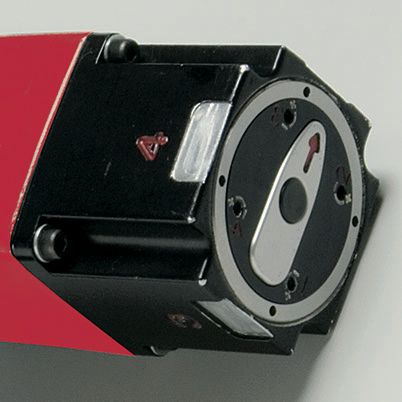

CP7600C-R4P product photo
CP7600C-R4P product photo
CP7600C-R4P product photo
The CP7600 BlueTork pneumatic nutrunner is intended for bus and truck maintenance companies. It offers a shut-off torque-controlled solution in safe condition to tighten nuts of trucks and buses, preventing over-tightening without impacting. The CP7600 series is available in 7 models: Cup reversible with 1 torque preset, cup reversible with 4 torque presets, extended cup reversible with 1 torque preset, extended cup reversible with 4 torque presets, blade non-reversible 1 torque preset, blade reversible 1 torque preset, blade reversible 4 torque presets.
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

ImperialMetric
Design & Functions
Vibration (m/s²)
<2.5
Output drive type
Sq
Output drive size (in)
1
Output retainer type
Hole
Adjustment
Key
Torque Control System
Shut-off-pneumatic valve
Air inlet thread type
BSPP
Reversible
Yes
Air inlet thread size (in)
3/8
Starting system
Trigger
Max torque reverse
664 ft.lbf
Reaction bar type
Blade & Cup not included
Handle type
Pistol

CP7600C-R4P

8941 0760 35
1" SHUT OFF VALVE BAR CUP PNEUMATIC NUTRUNNER
dimention
Dimensions 56.3 x 19.5 x 29.1 cm
weight
Weight 7.36 kg

Benefits

Air Shut-off torque control at preset torque
Selection of up to 4 calibrated tightening torques with high accuracy
Short version with CUPS reaction bar optional
Low noise level (<77dB)
Low vibration increases operator comfort for greater productivity. (<2.5 m/s²)
