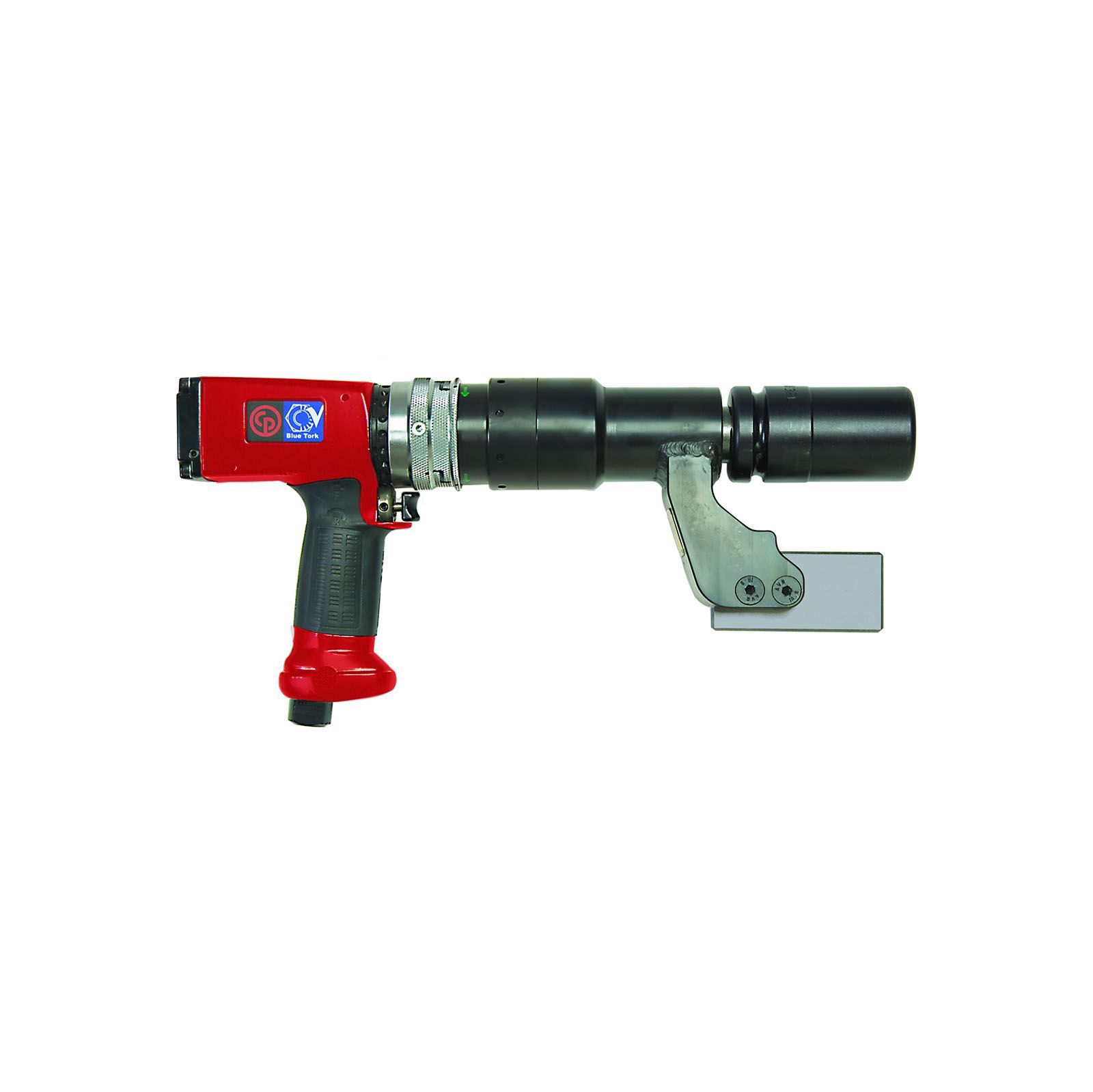

CP7600 Series - BlueTork Nutrunners
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Design & Functions
Reversible
Yes
Max torque in forward
664 ft.lbf
Output drive type
Sq
Weight
14.5 lb
Max dynamic air working pressure
100 psi
Free Speed
100 rpm
Min hose diam (5 m hose length)
13 mm
Sound Power
90 dB(A)
Air consumption at free speed
40 cfm
Sound Pressure
79 dB(A)
Vibration (m/s²)
<2.5
Output drive size (in)
1
Output retainer type
Hole
Adjustment
Key
Torque Control System
Shut-off-pneumatic valve
Length (L)
13.58 in
Air inlet thread type
BSPP
Min torque in forward
332 ft.lbf
Air inlet thread size (in)
3/8
Starting system
Trigger
Max torque reverse
664 ft.lbf
Reaction bar type
Blade included
Handle type
Pistol
CP7600xB-R
8941 0760 11
