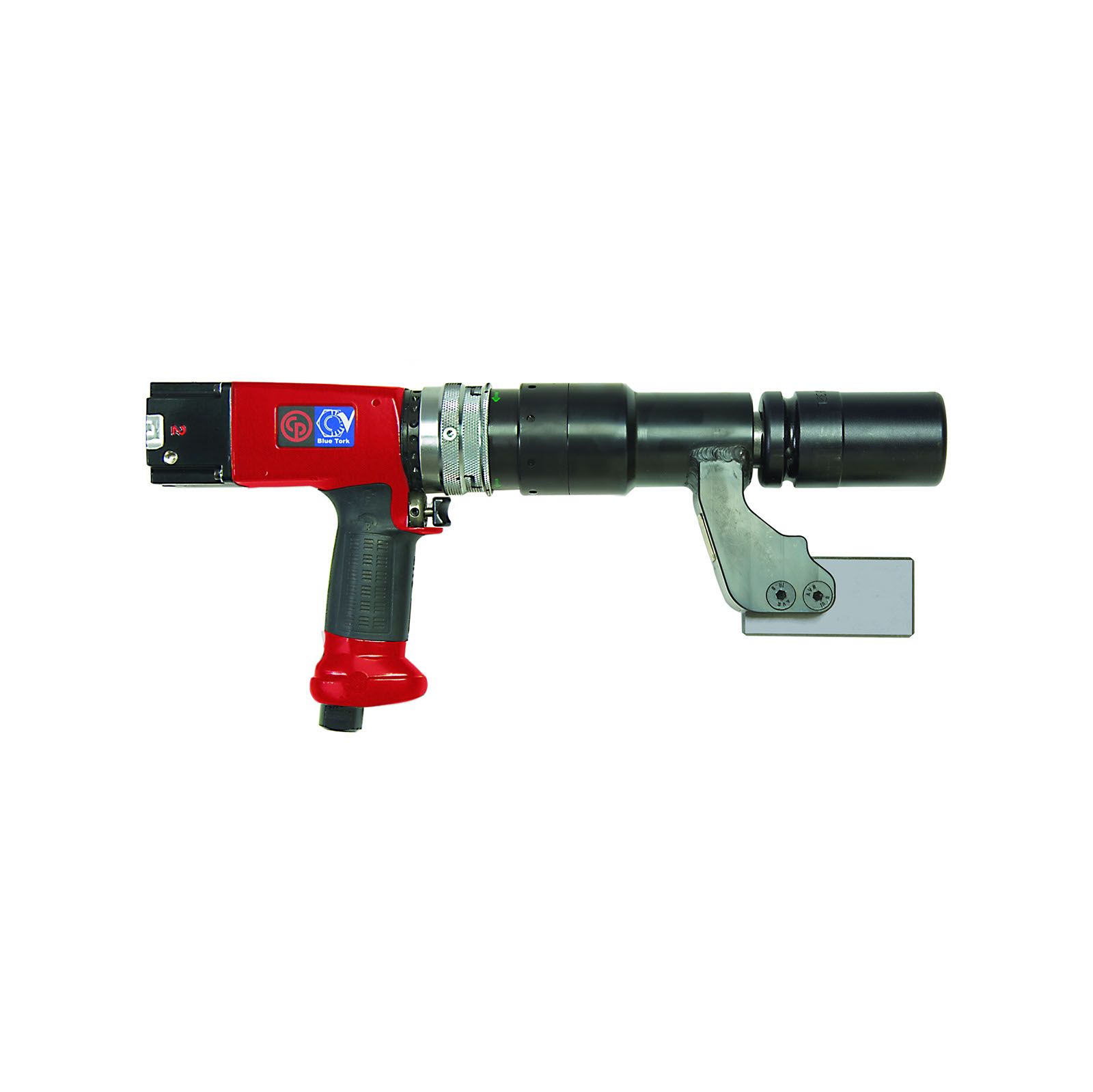

CP7600 Series - BlueTork Nutrunners
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Design & Functions
Min torque in forward
332 ft.lbf
Handle type
Pistol
Reaction bar type
Blade included
Max torque reverse
664 ft.lbf
Starting system
Trigger
Reversible
Yes
Length (L)
14.96 in
Adjustment
Key
Max torque in forward
664 ft.lbf
Output retainer type
Hole
Output drive size (in)
1
Vibration (m/s²)
<2.5
Air consumption at free speed
40 cfm
Min hose diam (5 m hose length)
13 mm
Free Speed
100 rpm
Max dynamic air working pressure
100 psi
Weight
15.2 lb
Sound Power
90 dB(A)
Output drive type
Sq
Torque Control System
Shut-off-pneumatic valve
Air inlet thread type
BSPP
Air inlet thread size (in)
3/8
Sound Pressure
79 dB(A)
CP7600xB-R4P
8941 0760 15
