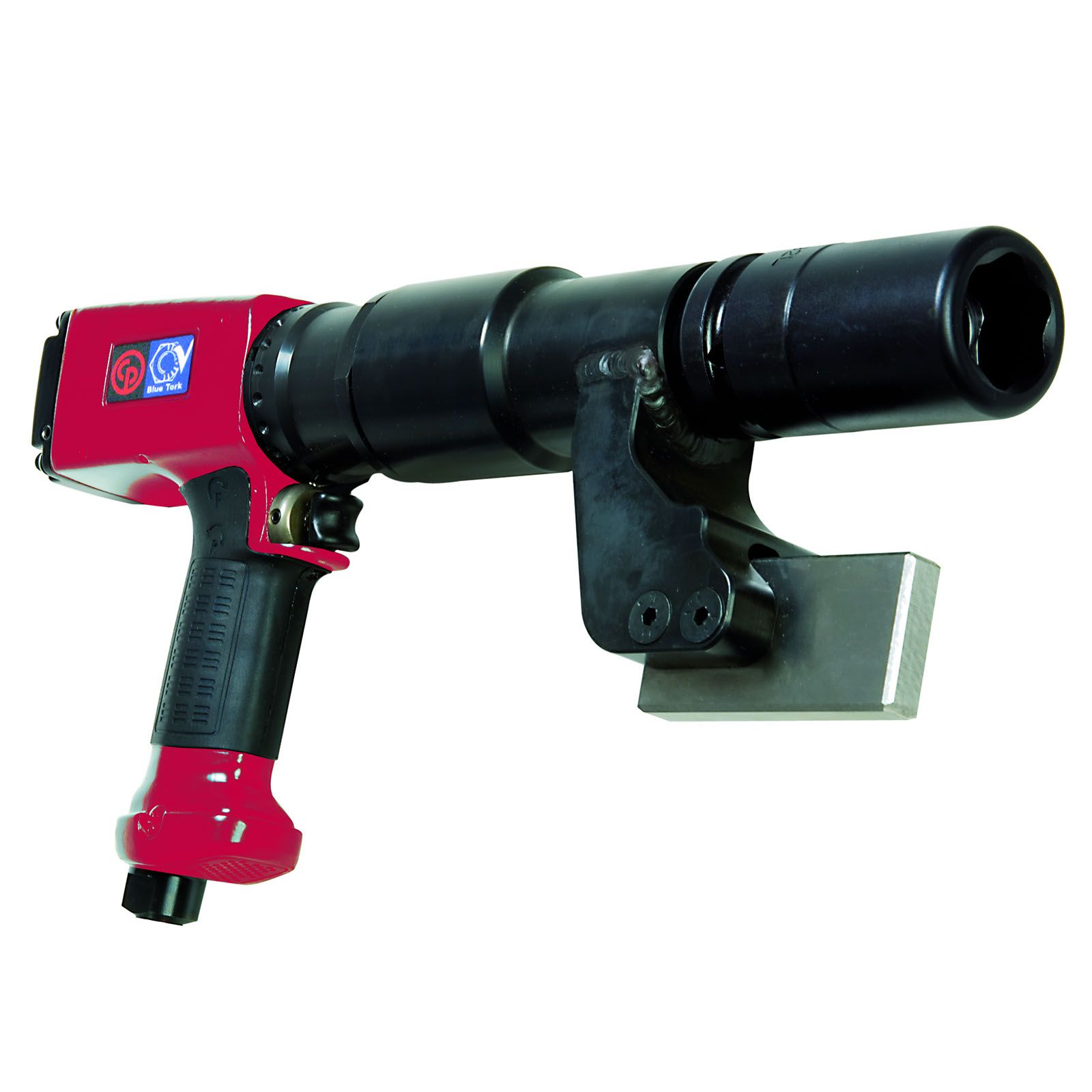

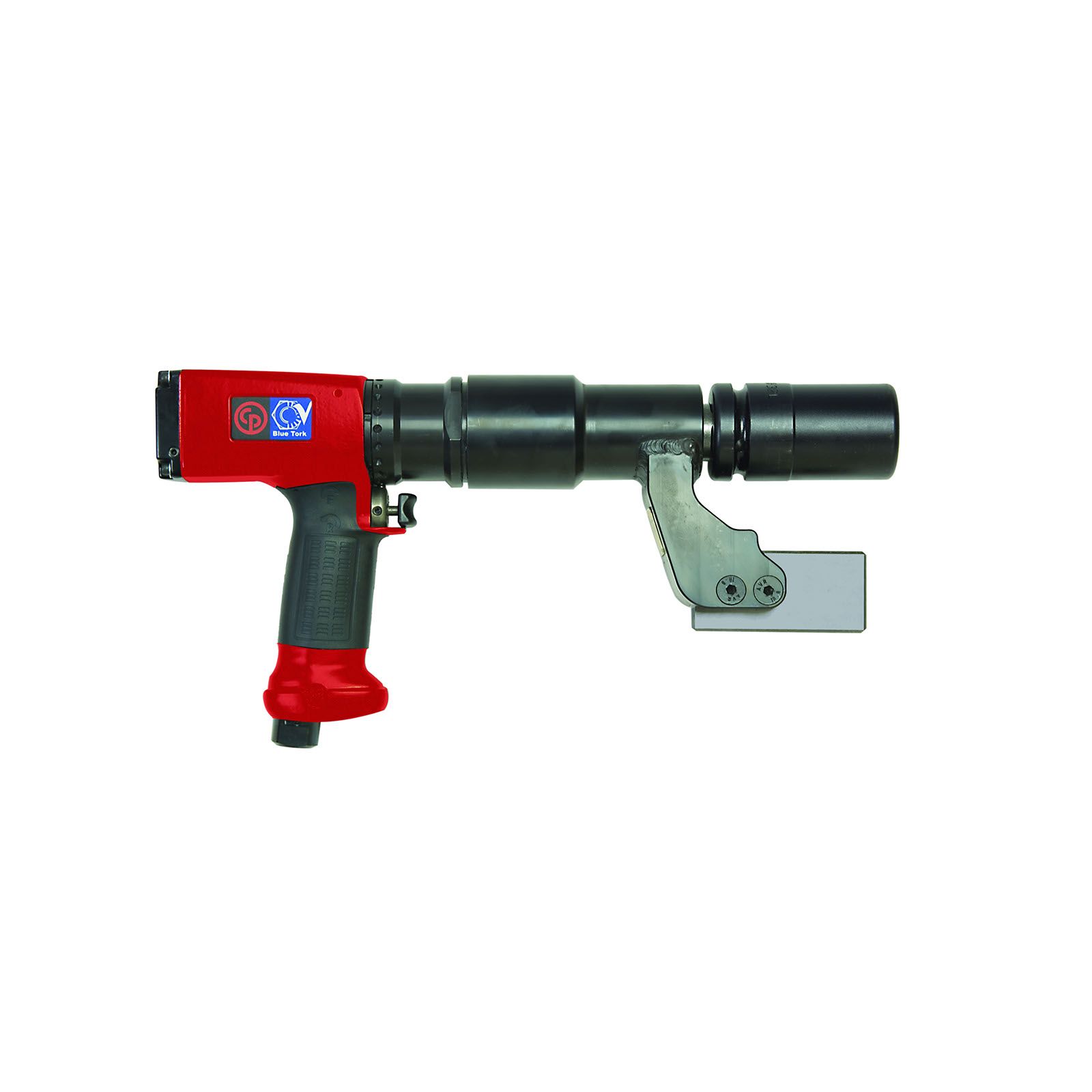

CP7600 Series - BlueTork Nutrunners
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Torque
Max torque in forward
664 ft.lbf
Max torque reverse
664 ft.lbf
Min torque in forward
332 ft.lbf
Torque Control System
Shut-off-pneumatic valve
Design & Functions
Adjustment
Key
Handle type
Pistol
Output drive size (in)
1
Output drive type
Sq
Output retainer type
Hole
Reaction bar type
Blade included
Reversible
No
Spline type
0
Starting system
Trigger
Size & Weight
Length (L)
12.91 in
Weight
13.2 lb
Speed
Free Speed
100 rpm
Air consumption at free speed
40 cfm
Noise & vibrations
Sound Power
90 dB(A)
Sound Pressure
79 dB(A)
Vibration (m/s²)
<2.5
Air information
Air inlet thread size (in)
3/8
Air inlet thread type
BSPP
Max dynamic air working pressure
100 psi
Min hose diam (5 m hose length)
13 mm
CP7600xB
8941076010
Dimensions 55.5 x 29.5 x 18 cm
Weight 7.38 kg
