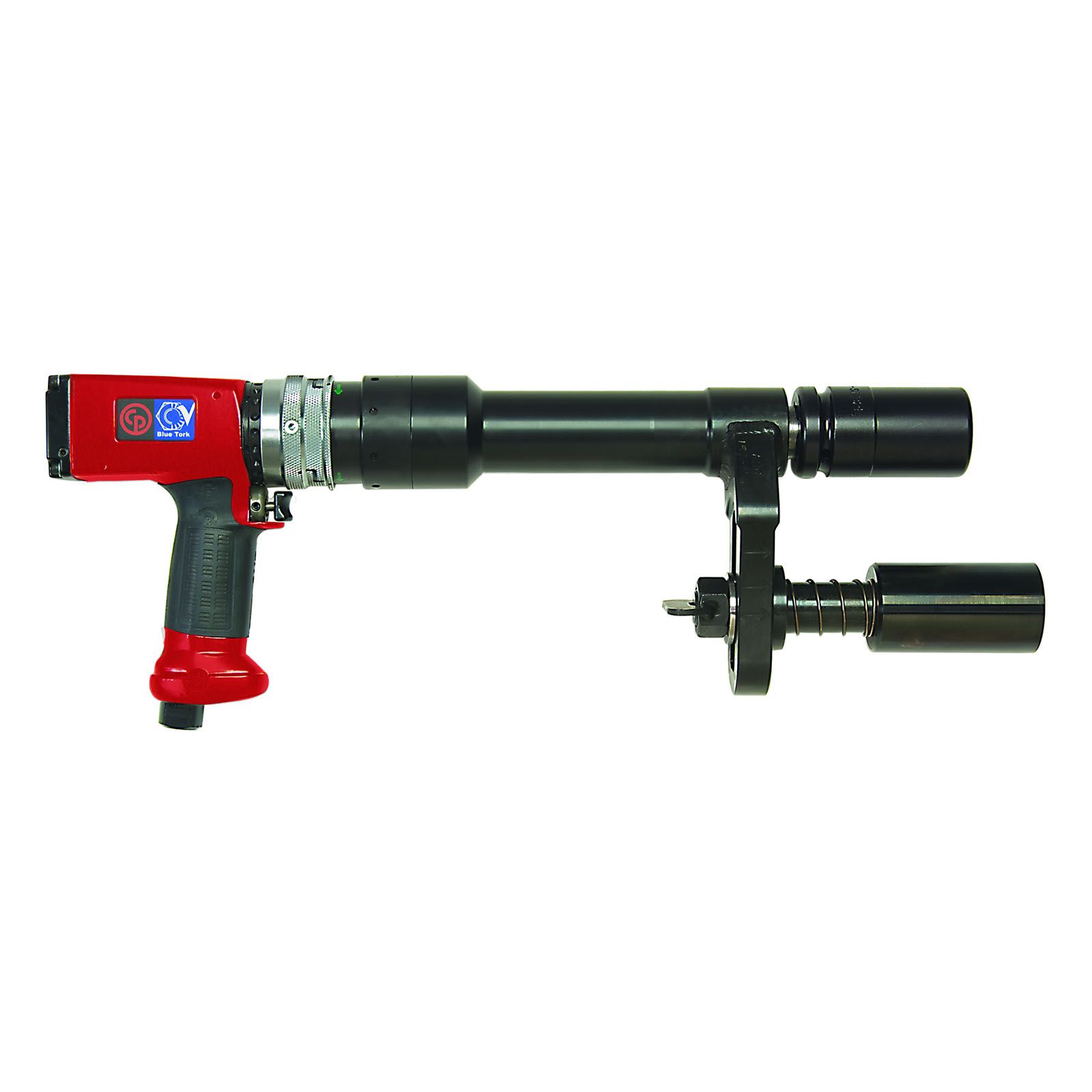

CP7600 Series - BlueTork Nutrunners

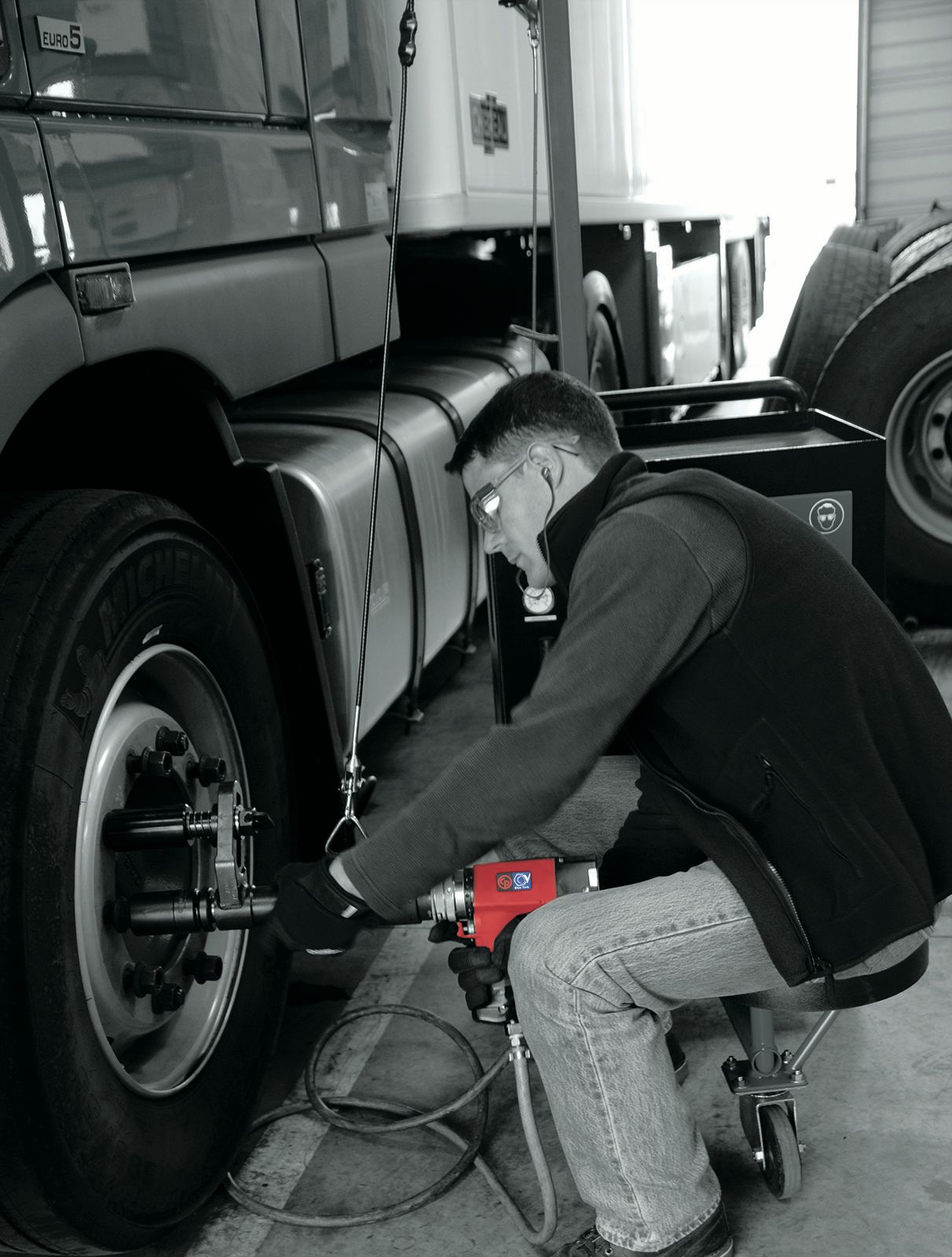

The CP7600 BlueTork pneumatic nutrunner is intended for bus and truck maintenance companies. It offers a shut-off torque-controlled solution in safe condition to tighten nuts of trucks and buses, preventing over-tightening without impacting. The CP7600 series is available in 7 models: Cup reversible with 1 torque preset, cup reversible with 4 torque presets, extended cup reversible with 1 torque preset, extended cup reversible with 4 torque presets, blade non-reversible 1 torque preset, blade reversible 1 torque preset, blade reversible 4 torque presets.
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Design & Functions
Handle type
Pistol
Reaction bar type
Standard Cup included
Max torque reverse
664 ft.lbf
Max torque in forward
664 ft.lbf
Output retainer type
Hole
Output drive size (in)
1
Output drive type
Sq
Max dynamic air working pressure
100 psi
Weight
19.4 lb
Free Speed
100 rpm
Min hose diam (5 m hose length)
13 mm
Sound Power
90 dB(A)
Air consumption at free speed
40 cfm
Category
Power Tools Solutions
Sound Pressure
79 dB(A)
Vibration (m/s²)
<2.5
Adjustment
Key
Torque Control System
Shut-off-pneumatic valve
Length (L)
18.11 in
Air inlet thread type
BSPP
Reversible
Yes
Min torque in forward
332 ft.lbf
Air inlet thread size (in)
3/8
Starting system
Trigger
Size & Weight
Min hose diam (5 m hose length)
13 mm
Weight
19.4 lb
Length (L)
18.11 in
CP7600xC-R
8941 0760 21
