CP3019 Series - Rotary Angle Sanders
Warning
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.
Technical Specifications
Size & Weight
Height (H)
2.32 in
Length (L)
6.54 in
Weight
1.32 lb
Power
Max power
0.5 hp
Air information
Air consumption at load
19 cfm
Air inlet thread size (in)
1/4
Air inlet thread type
NPT
Max dynamic air working pressure
90 psi
Min hose diam (16 ft hose length)
0.31 in
Min hose diam (5 m hose length)
8 mm
Speed
Free Speed
18000 rpm
Air consumption at free speed
6.4 cfm
Overspeed shut-off
No
Design & Functions
Autobalancer
No
Circular Abrasive Pad Size (in)
3
Circular Abrasive Pad Size (mm)
75
Exhaust
Rear
Governor type
Ball
Main Material type
Aluminium, Composite over-sleeve
Output Spindle Thread
1/4-20 UNC
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever
Noise & vibrations
Sound Power
88 dB(A)
Sound Pressure
77 dB(A)
Uncertainty vibration-K
4.3 ft/s²
Vibration
8.2 ft/s²
General
Energy type
Pneumatic
Family
Sanders
Subfamily
Angle Sanders

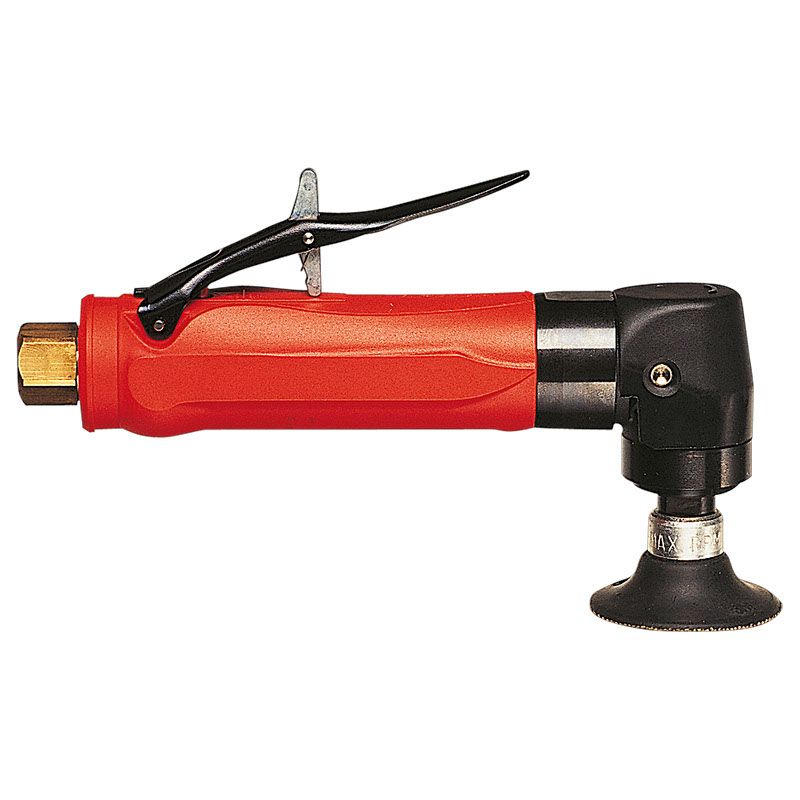

CP3019-18AF
6151703100
Dimensions 35.8 x 17.2 x 6.2 cm
Weight 950 g
