CP2003/CP2007 Series - Shut-Off Screwdrivers

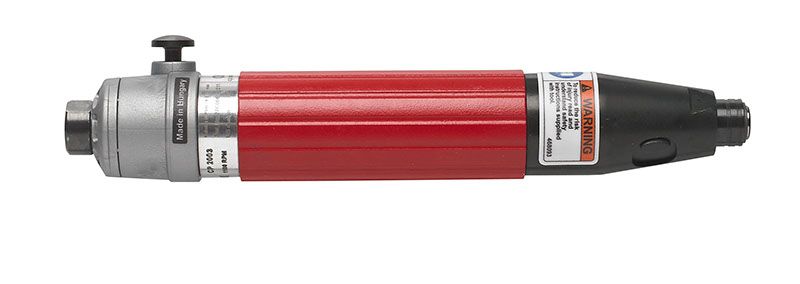

CP2003 product photo
CP2003 product photo
CP2003 product photo
CP2003 product photo
CP2003 product photo
CP2003 product photo
The CP2003/CP2007 Series 1/4" hex straight pneumatic screwdriver has a speed of 1,100 rpm and has a tightening torque range of up to 3.17 ft.lb/4.3 Nm. The pneumatic screwdrivers come in straight compact and very lightweight design with a robust straight shut-off clutch mechanic and low sound power for high operational comfort. Shut-off tools are an ideal choice if you're looking for precision. The handling is facilitated by a straight push-to-start operation and one-hand reverse button.
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

ImperialMetric
Design & Functions
Air inlet thread type
BSP
Output drive size (in)
1/4
Clutch Type
Ball clutch
Body
Steel
Adjustment
Key
Air inlet thread size (in)
1/8
Clutch housing
Steel
Output drive type
Hex
Starting system
Push to start
Air consumption at free speed
8.5 cfm
Reversible
Yes
Max torque in forward
1.1 ft.lbf
Min torque in forward
0.3 ft.lbf
Torque Control System
Shut-off-pneumatic valve
Output retainer type
Quick change
Handle type
Straight handle
Min hose diam (16 ft hose length)
0.38 in

CP2003

6151 9220 03
1/4" HEX STRAIGHT SHUT OFF PNEUMATIC SCREWDRIVER
This product is no longer available
This product is no longer sold.Contact us if you need support on this.

Benefits

Accurate and durable shut-off clutch for various fastening
Low noise level
Straight push-to-start operation and one-hand reverse button for ergonomic handling
Compact and comfortable for production operations
Lightweight to minimize fatigue
