CP80 series - Trolley Jacks
CP80031 product photo
CP80031 product photo
CP80031 product photo
CP80031 product photo

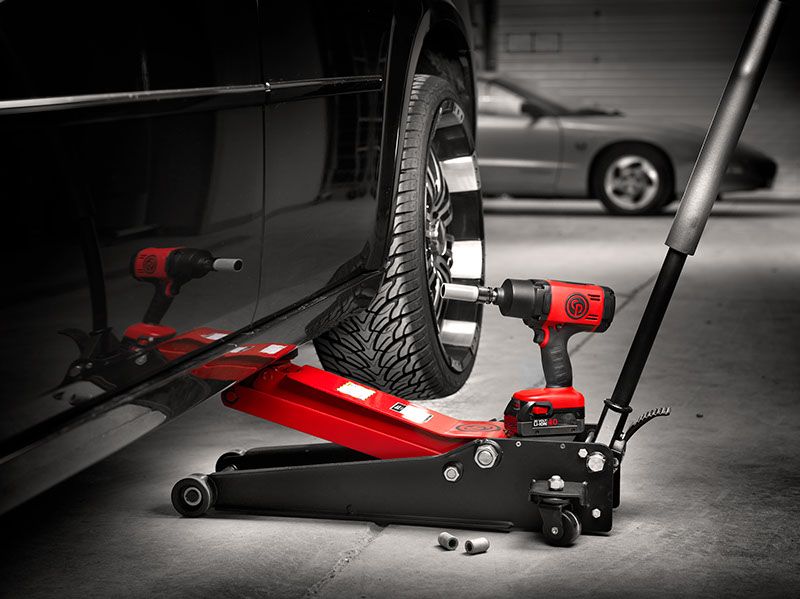

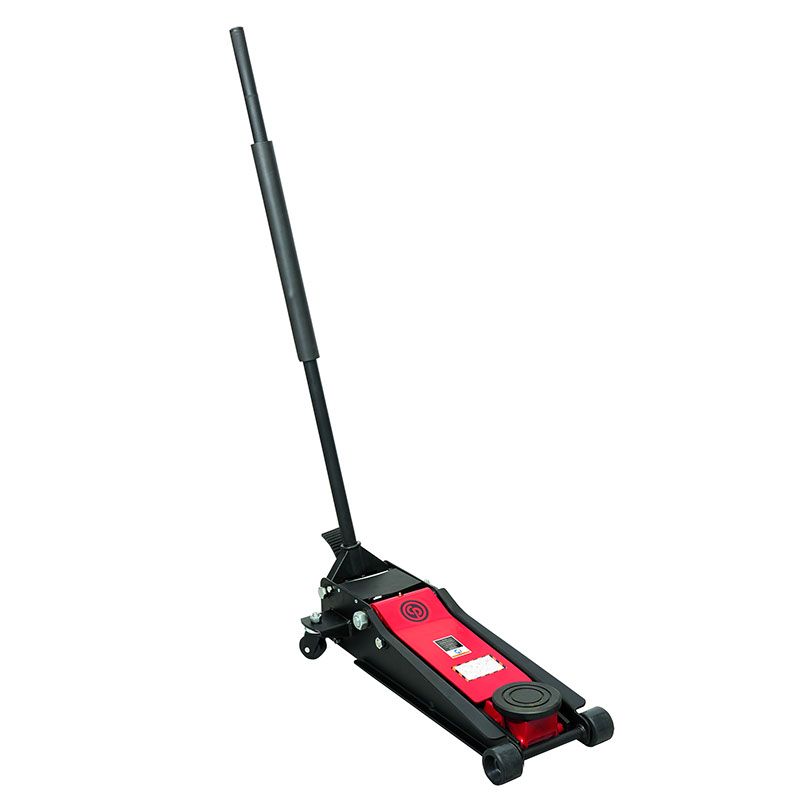

The CP80 series trolley jacks have a heavy duty steel welded chassis including a sledge rim that allows them to slide over uneven flooring and even workshop gates. Resistant to high dirt areas and equipped with re-lubrication grease plugs. The turning handle enables simple and safe load release. To protect vehicles, the handle comes with a long protective sponge and soft rubber pad on the saddle plate. Chicago pneumatic trolley jacks are CE, TUV, and ASME certified to guarantee quality and safety in the workplace. The CP80 series offers 3 models from 1.5 to 3 tons.
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

ImperialMetric
Design & Functions
Max Lifting Capacity
6610 lb
Stroke
17.91 in
Wheel type
Steel
CP80031 product photo
CP80031 product photo
CP80031 product photo
CP80031 product photo

CP80031

8941181031
This product is no longer available
This product is no longer sold.Contact us if you need support on this.

Benefits

Super low pick-up height to go easily under low profile vehicles
Equipped with a double pump design to increase lifting speed and ergonomic foot pedal for fast approach without load
Heavy duty steel welded chassis with reinforcing rims to ensure high resistance and durability
Lifting arm allows high lifting capacities - height to max. 550 mm / 21.65 in. for use in SUV or pickup trucks.
Includes a safety valve to prevent overloading
