Included Items
Includes: 3/32", 1/8", 5/32"& 3/16" (2.4, 3.2, 4 & 4.8mm) nose pieces, jaw pusher for 2.4 & 3.2mm rivets, jaws, syringe, service wrenches & oil bottleTechnical Specifications
Size & Weight

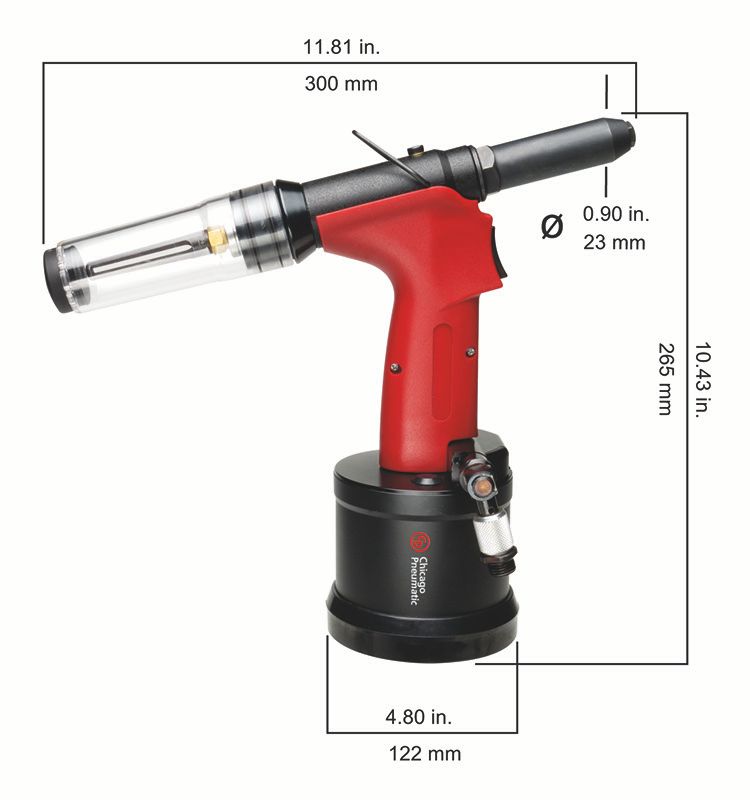

Length (L)
300 mm
Pulling force
865 kg
Weight
1.46 kg
Noise & vibrations
Sound Power
55 dB(A)
Sound Pressure
66 dB(A)
Vibration (m/s²)
<2.5 m/s**2
Design & Functions
Main Material type
Composite
Max rivet size (in)
3/16
Max rivet size (mm)
4.8
Mouthpiece delivered
4
Pulling force
1900 lb
Rivet type
Blind
Starting system
Trigger
Air information
Air consumption at load
2.1 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm

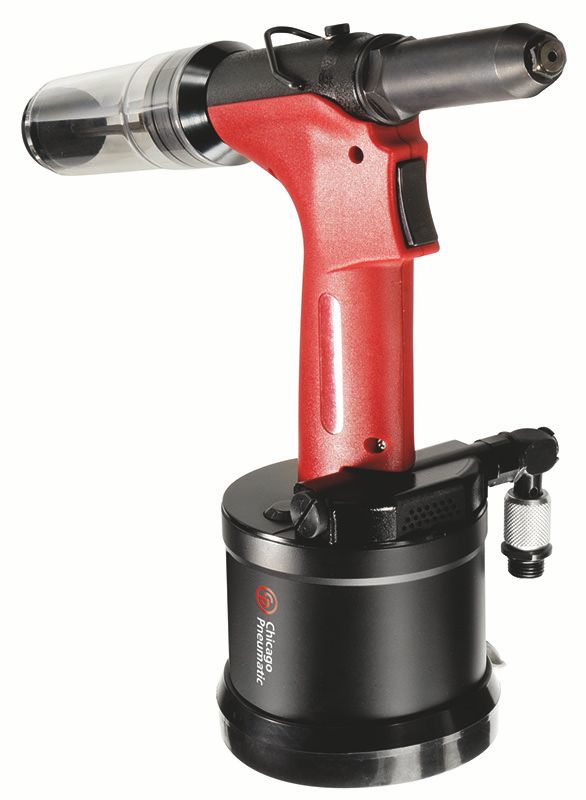

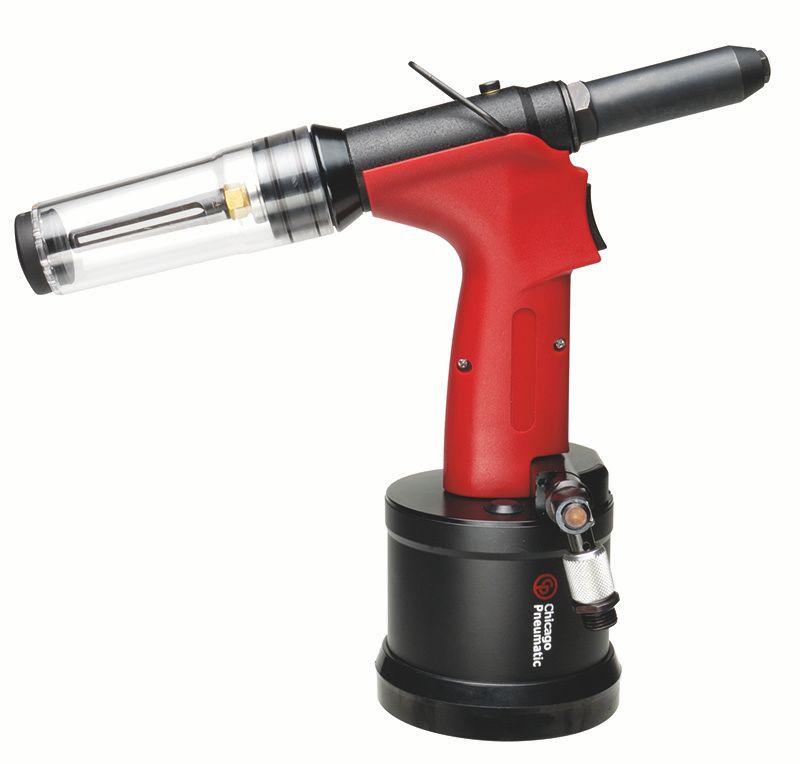

CP9883 RIVETER
8941098830
Dimensions 31.5 x 31 x 30 cm
Weight 2.5 kg
