CP3109 Series - Die Grinders
Technical Specifications
Size & Weight
Length (L)
222 mm
Weight
0.9 kg
Speed
Free Speed
15000 rpm
Air information
Air consumption at load
15 l/s
Air inlet thread size (in)
3/8
Air inlet thread type
BSP
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power
85 dB(A)
Sound Pressure
74 dB(A)
Uncertainty vibration-K
2 m/s²
Vibration (m/s²)
3.4
Tightening Strategies
Angle Type
Straight
Power
Max power
600 W
Design & Functions
Collet max capacity
1/4 (6.35mm)
Collet/Collet holder/Collet nut type
Erickson serie 200 type
Exhaust
Rear
Governor type
Ball
Main Material type
Aluminium, Composite over-sleeve
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever

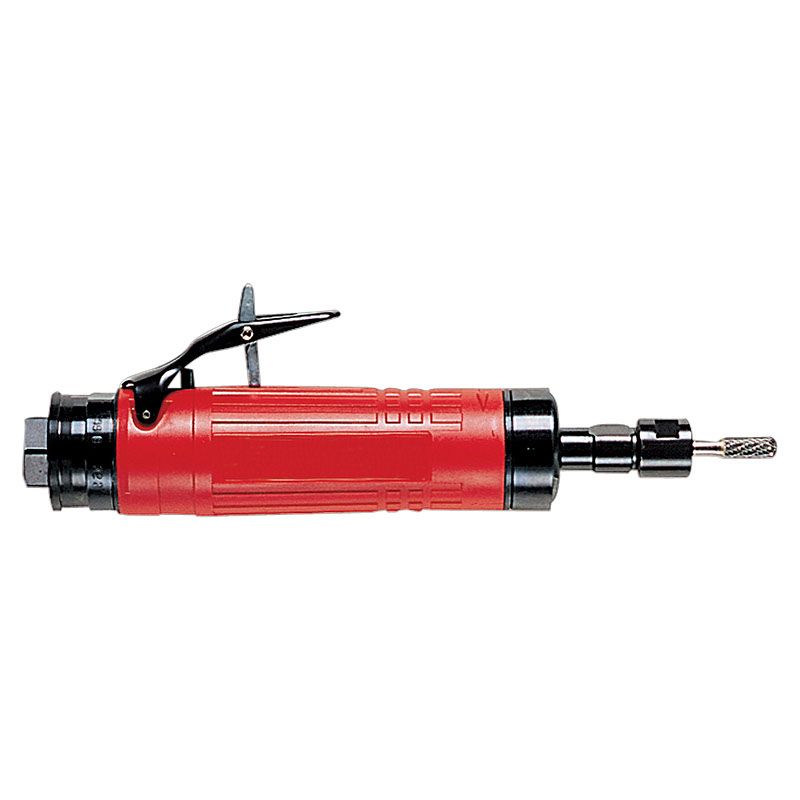

CP3109-15
6151701630
Dimensions 35 x 17 x 6.5 cm
Weight 1.54 kg
