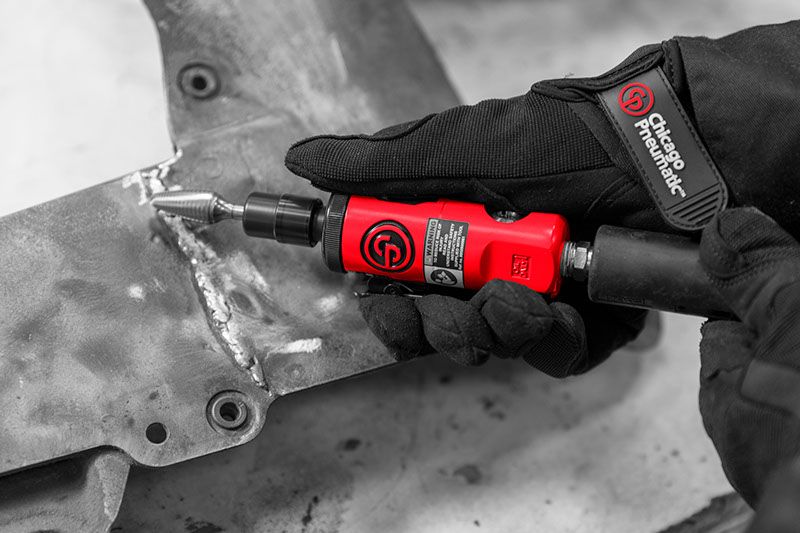

CP876 Series - Die Grinders
Technical Specifications
Size & Weight
Length (L)
121 mm
Weight
0.34 kg
Speed
Free Speed
30000 rpm
Air consumption at free speed
11 l/s
Air information
Air consumption at load
11 l/s
Air inlet thread size (in)
1/4
Air inlet thread type
NPT
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power
112.3 dB(A)
Sound Pressure
101.3 dB(A)
Vibration (m/s²)
<2.5
Tightening Strategies
Angle Type
Straight
Power
Max power
220 W
Design & Functions
Collet max capacity
1/4 (6.4mm)
Exhaust
Front
Governor type
NA
Main Material type
Aluminium, Composite over-sleeve
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever
