CP7748 Series - Impact Wrenches

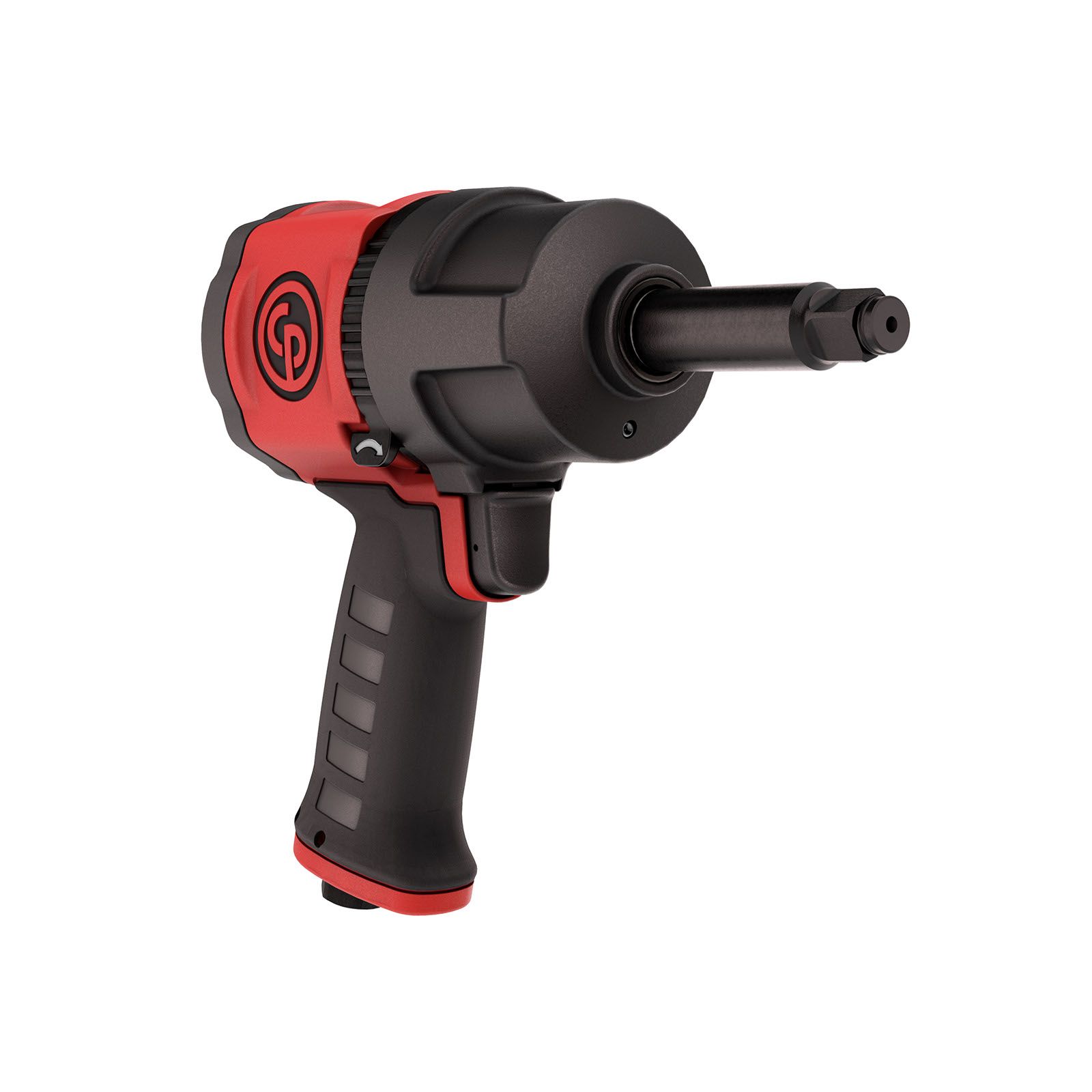

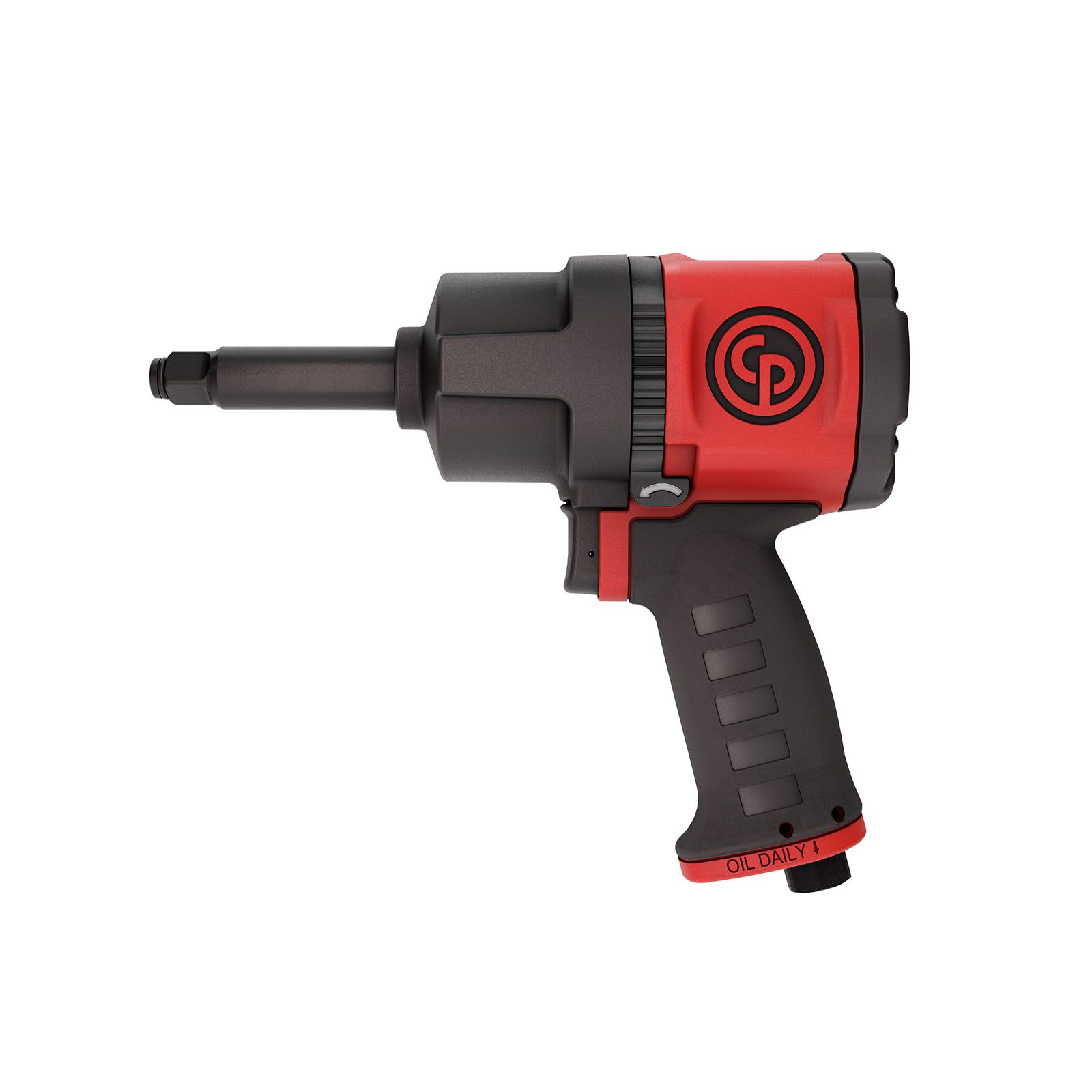

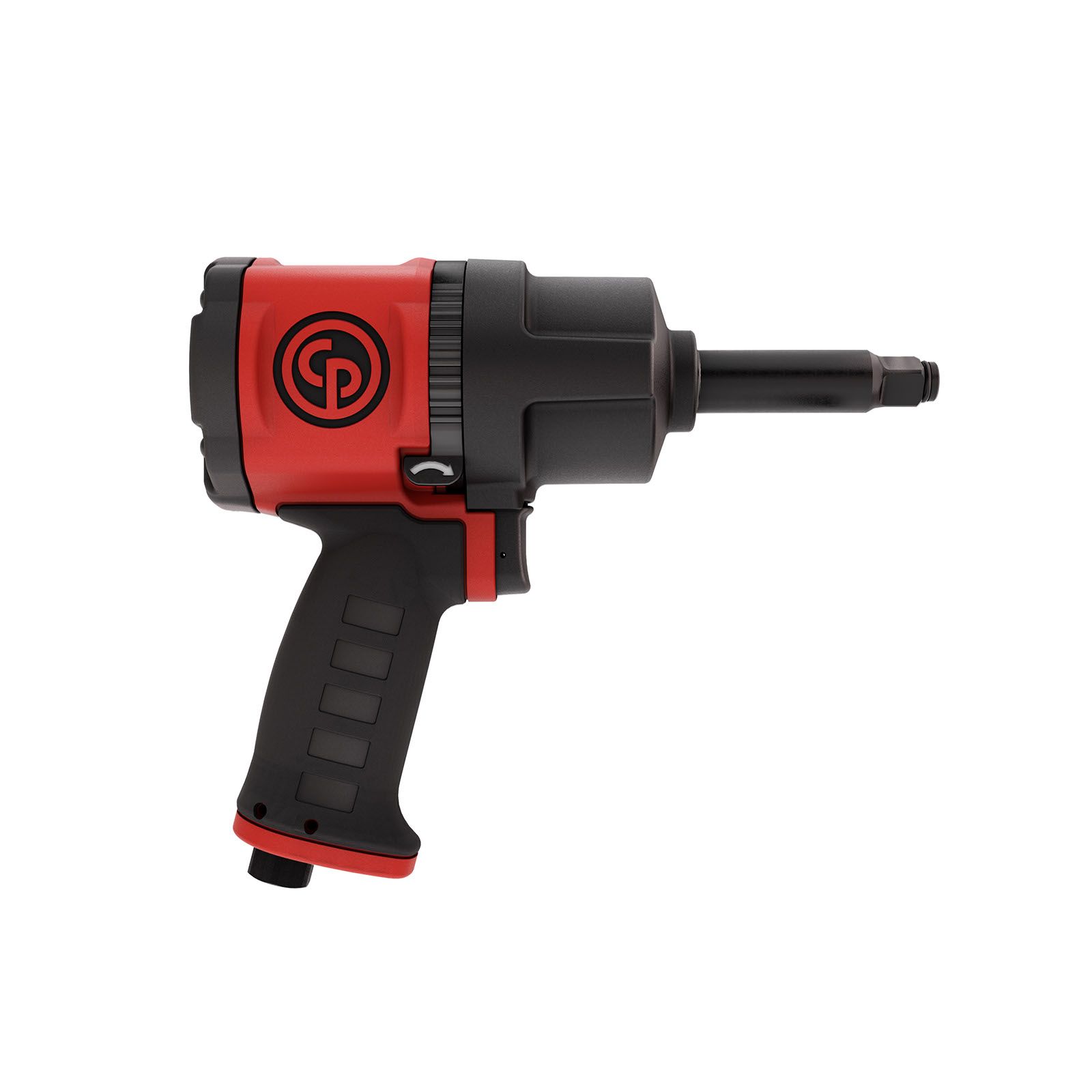

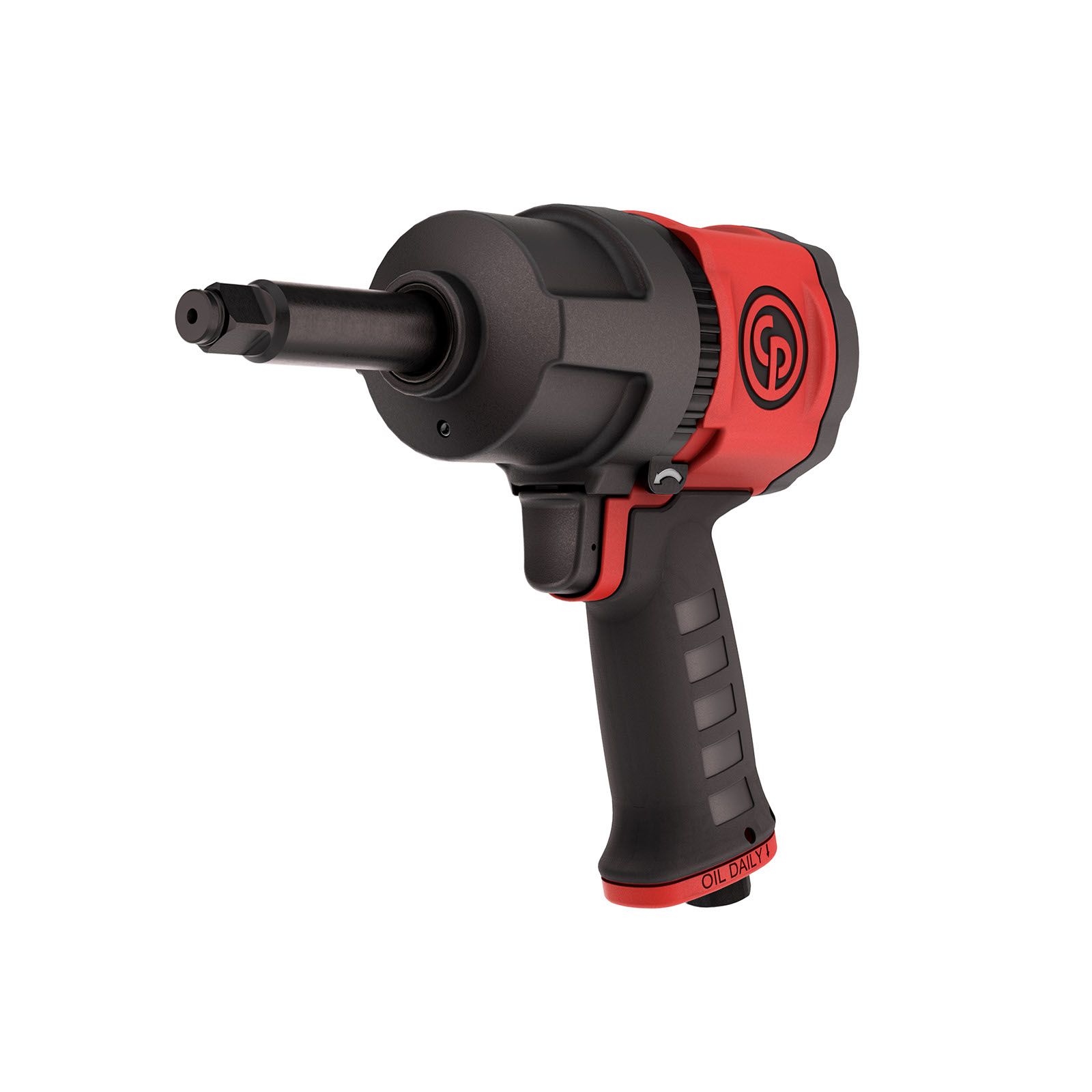

CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
CP7748-2 product photo
The CP7748 series impact wrench with its torque of 960ft.lbs / 1,300 Nm, twin hammer impact mechanism, and composite housing is powerful and durable and ensures efficient bolting and unbolting when changing wheels and tires on light vehicles. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748 series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil). Country of origin is TW. Customs tariff is 84671190

Technical Specifications

Design & Functions
Length (L)
225 mm
Air inlet thread size (in)
1/4
Impact mecanism
Twin hammer
Body
Composite
Blow per minute
1350
Sound Pressure
94.3 dB(A)
Sound Power
105.3 dB(A)
Output drive type
Sq
Max torque reverse
1300 Nm
Starting system
Trigger
Max dynamic air working pressure
6.3 bar
Output retainer type
Friction ring
Clutch lubrication type
Grease
Torque limited
No
Handle type
Pistol
Clutch housing
Aluminum
Min working torque fwd
95 Nm
Min hose diam (5 m hose length)
10 mm
Uncertainty vibration-K
3.8 m/s²
Output drive size (in)
1/2
Weight
2.11 kg
Max working torque fwd
750 Nm
Free Speed
7000 rpm

CP7748-2

8941 0774 86
1/2" PNEUMATIC IMPACT WRENCH
dimention
Dimensions 21.9 x 10.1 x 27.9 cm
weight
Weight 2.57 kg

Benefits

960 ft.lbs / 1,300 Nm of max torque in reverse position for high productivity
Composite housing, twin hammer impact mechanism, hard anodized end plates, and hard chromium aluminum cylinder for high durability
Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort
One-hand reverse system (Ring system) for better ergonomics
Curved rubber handle to help prevent slipping
