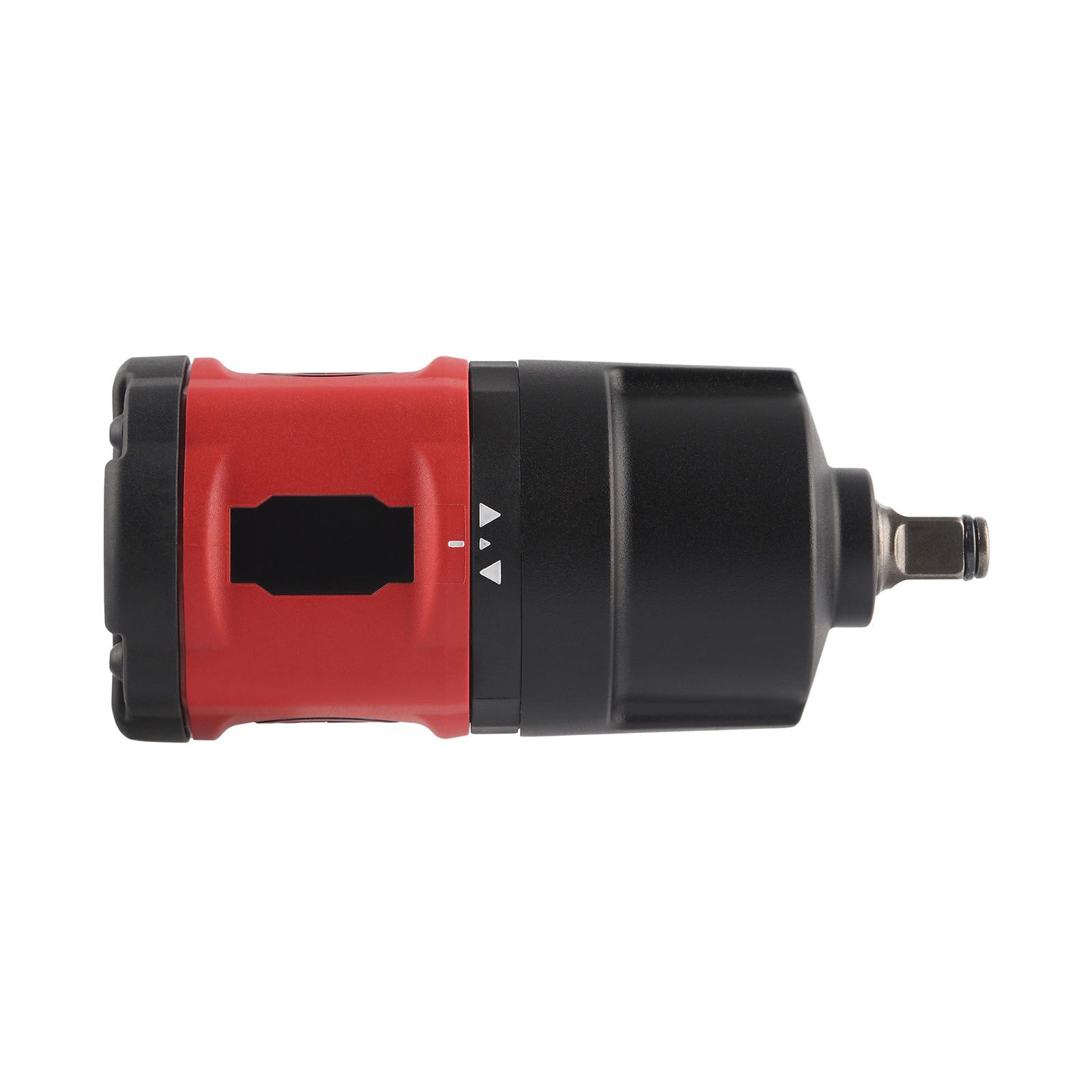

CP7748 Series - Impact Wrenches

The CP7748 series impact wrench with its torque of 960ft.lbs / 1,300 Nm, twin hammer impact mechanism, and composite housing is powerful and durable and ensures efficient bolting and unbolting when changing wheels and tires on light vehicles. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748 series is composed of 3 models: 1/2" short anvil with Friction Ring retainer; 1/2" short anvil with Pin-Style retainer; and 1/2" extended anvil with Friction Ring retainer.

Country of origin is TW. Customs tariff is 84671190

Technical Specifications

Imperial Metric

Torque

Max working torque fwd

750 Nm

Max torque reverse

1300 Nm

Min working torque fwd

95 Nm

Torque limited

Air information

Air consumption at load

12 l/s

Air inlet thread size (in)

1/4

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.38 in

Min hose diam (5 m hose length)

10 mm

Noise & vibrations

Sound Power

105.3 dB(A)

Sound Pressure

94.3 dB(A)

Uncertainty vibration-K

4.5 m/s²

Vibration (m/s²)

Speed

Free Speed

7000 rpm

Size & Weight

Height (H)

200 mm

Length (L)

175 mm

Width (W)

78 mm

Side to Center

39 mm

Weight

2 kg

Design & Functions

Blow per minute

1350

Body

Composite

Clutch housing

Aluminium

Clutch lubrication type

Grease

Handle type

Pistol

Impact mecanism

Twin hammer

Main Material type

Composite

Output drive size (in)

1/2

Output drive type

Output retainer type

Friction ring

Starting system

Trigger

CP7748

8941077481

1/2" PNEUMATIC IMPACT WRENCH

Package Dimensions 24.1 x 21 x 10 cm

Package Weight 2.33 kg

Add to Quote Contact Us Find a dealer

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort

960 ft.lbs / 1,300 Nm of max torque in reverse position for high productivity

Curved rubber handle to help prevent slipping

One-hand reverse system (Ring system) for better ergonomics

Features

Composite housing

Twin hammer impact mechanism

Hard anodized end plates

Chromium aluminum cylinder for high durability
