CP7776 Series - Impact Wrenches
Technical Specifications
Torque
Max working torque fwd
1450 Nm
Max torque reverse
1760 Nm
Min working torque fwd
340 Nm
Torque limited
No
Air information
Air consumption at load
19 l/s
Air inlet thread size (in)
1/2
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
13 mm
Noise & vibrations
Sound Power
109 dB(A)
Sound Pressure
98 dB(A)
Uncertainty vibration-K
3.3 m/s²
Vibration (m/s²)
12
Vibration
12 m/s²
Speed
Free Speed
6600 rpm
Air consumption at free speed
26 l/s
Size & Weight
Length (L)
290 mm
Side to Center
45 mm
Weight
6.6 kg
Design & Functions
Body
Composite
Clutch housing
Aluminum
Clutch lubrication type
Grease
Handle type
D-handle
Impact mecanism
Twin hammer
Output drive size (in)
1
Output drive type
Sq
Output retainer type
Friction ring
Side handle
Yes
Starting system
Trigger

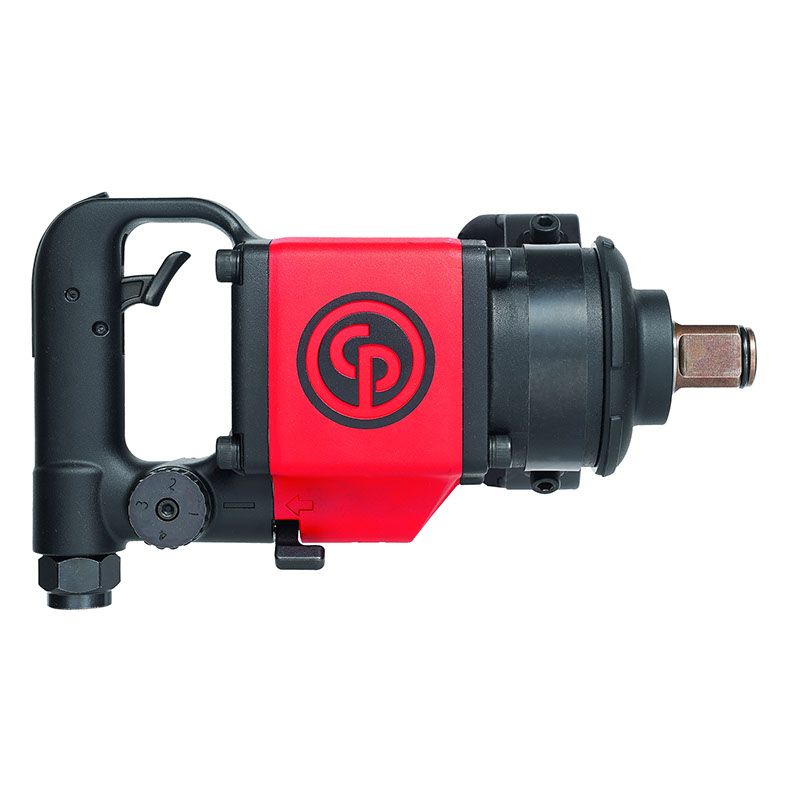

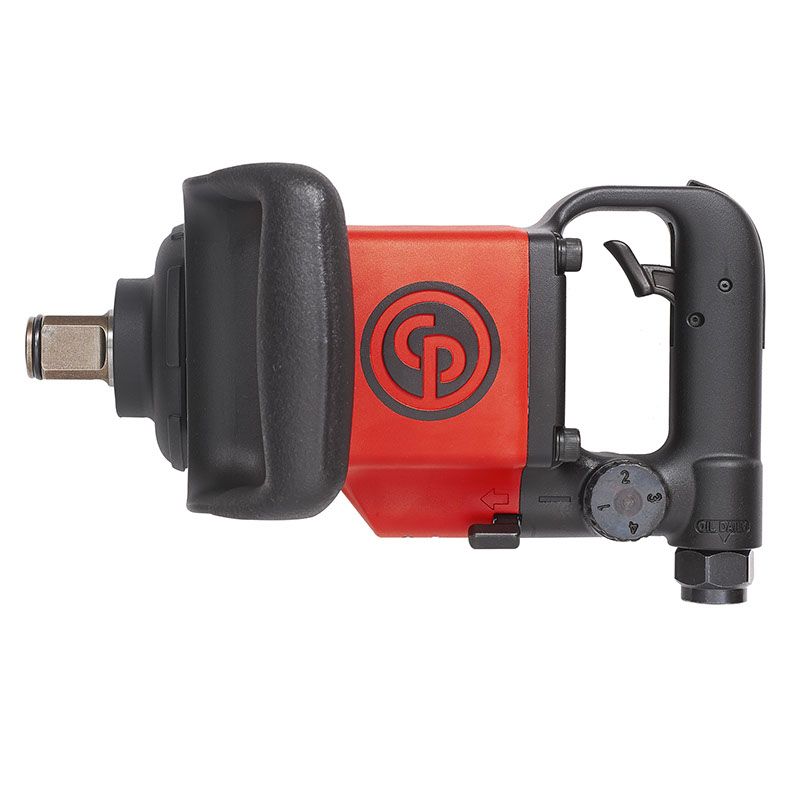

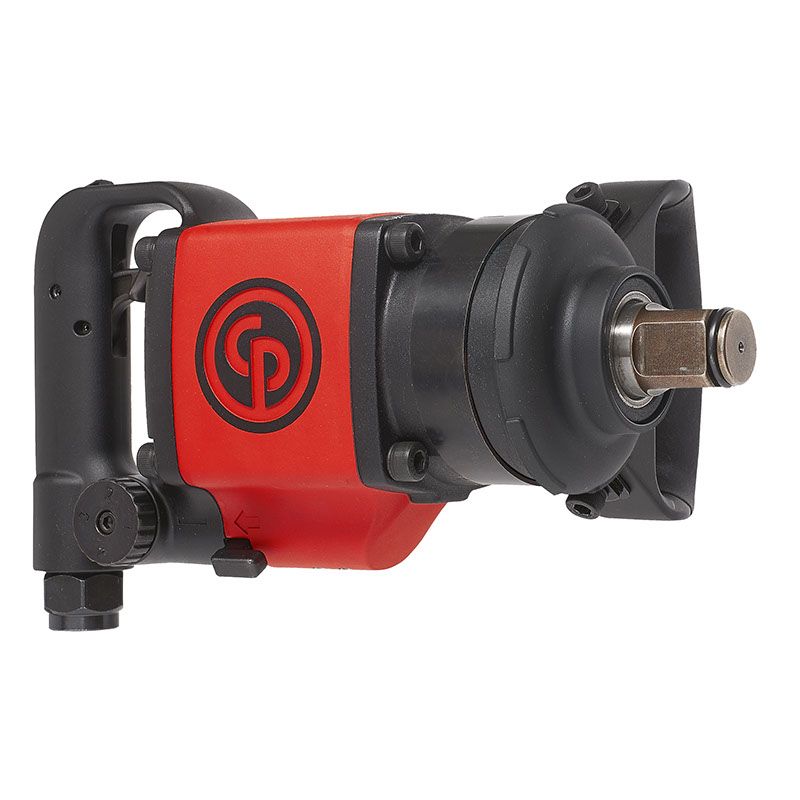

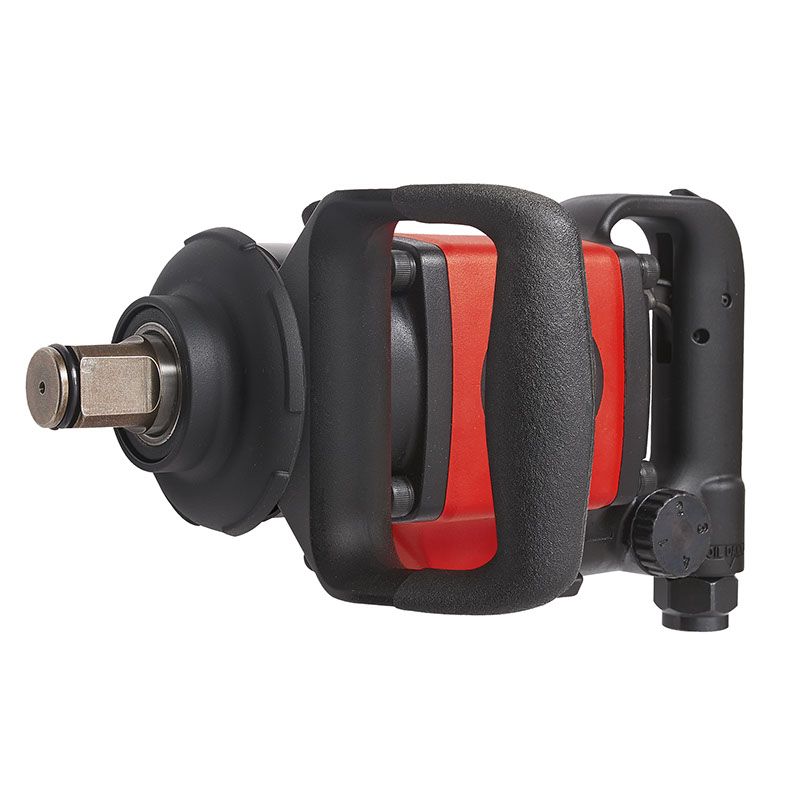

CP7773D
8941077731
Dimensions 33.5 x 19 x 13.5 cm
Weight 7.13 kg
