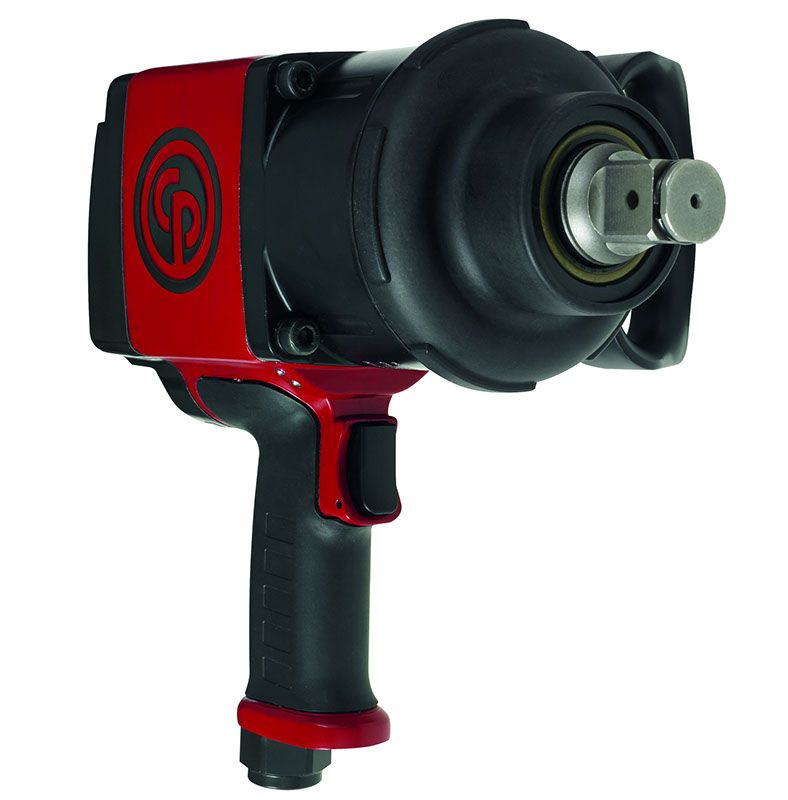

CP7776 Series - Impact Wrenches
Technical Specifications
Torque
Max working torque fwd
2070 Nm
Max torque reverse
2400 Nm
Min working torque fwd
955 Nm
Torque limited
No
Air information
Air consumption at load
15 l/s
Air inlet thread size (in)
1/2
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.5 in
Min hose diam (5 m hose length)
13 mm
Noise & vibrations
Sound Power
104 dB(A)
Sound Pressure
93 dB(A)
Uncertainty vibration-K
2.8 m/s²
Vibration (m/s²)
8.7
Vibration
8.7 m/s²
Speed
Free Speed
5000 rpm
Size & Weight
Length (L)
289 mm
Power weight ratio
210 Nm/kg
Side to Center
109 mm
Weight
11.2 kg
Design & Functions
Body
Aluminium
Clutch housing
Aluminium
Clutch lubrication type
Grease
Handle type
Pistol
Impact mecanism
Pinless rocking dog
Output drive size (in)
1
Output drive type
Sq
Output retainer type
Dual
Side handle
Yes
Starting system
Trigger
