CP717 Series - Hammers
Technical Specifications
Size & Weight
Bore diameter
19 mm
Length (L)
190 mm
Stroke
68 mm
Weight
2.15 kg
Air information
Air consumption at load
5.9 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Design & Functions
Blow per minute
1800
Chisel shank
Round
Chisel shank diameter (in)
0.498
Chisel shank diameter (mm)
12.7
Energy
7.3 J
Max rivet size (in)
1/4
Max rivet size (mm)
6.4
Max rivet size steel (in)
3/16
Max rivet size steel (mm)
4.8
Starting system
Trigger
Noise & vibrations
Sound Power
106 dB(A)
Sound Pressure
95 dB(A)
Uncertainty vibration-K
2.9 m/s²
Vibration
8.6 m/s²

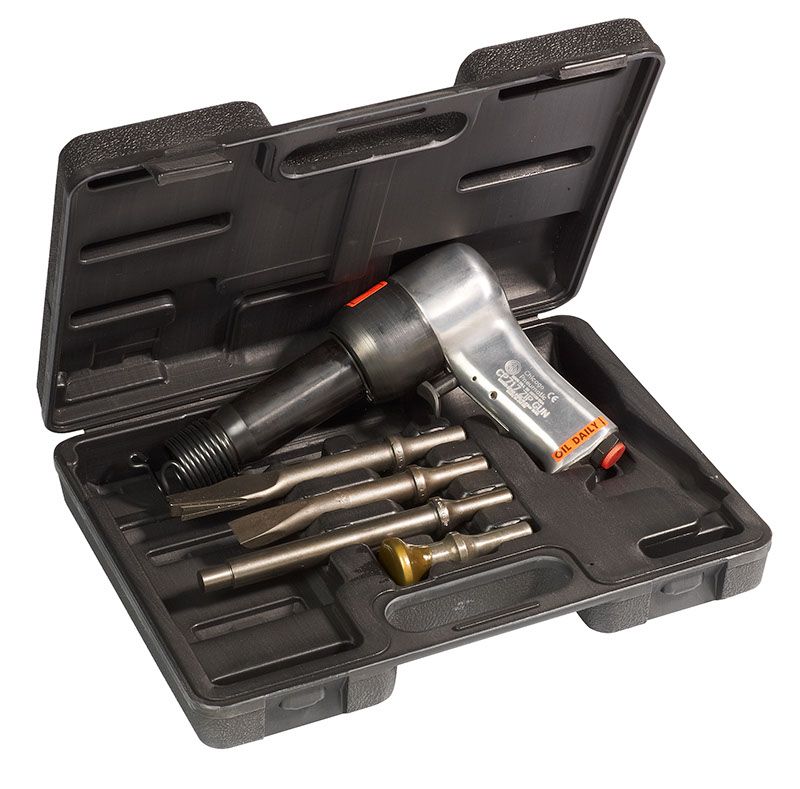

CP717 Kit
T025365
Dimensions 33 x 25 x 7 cm
Weight 3.65 kg
