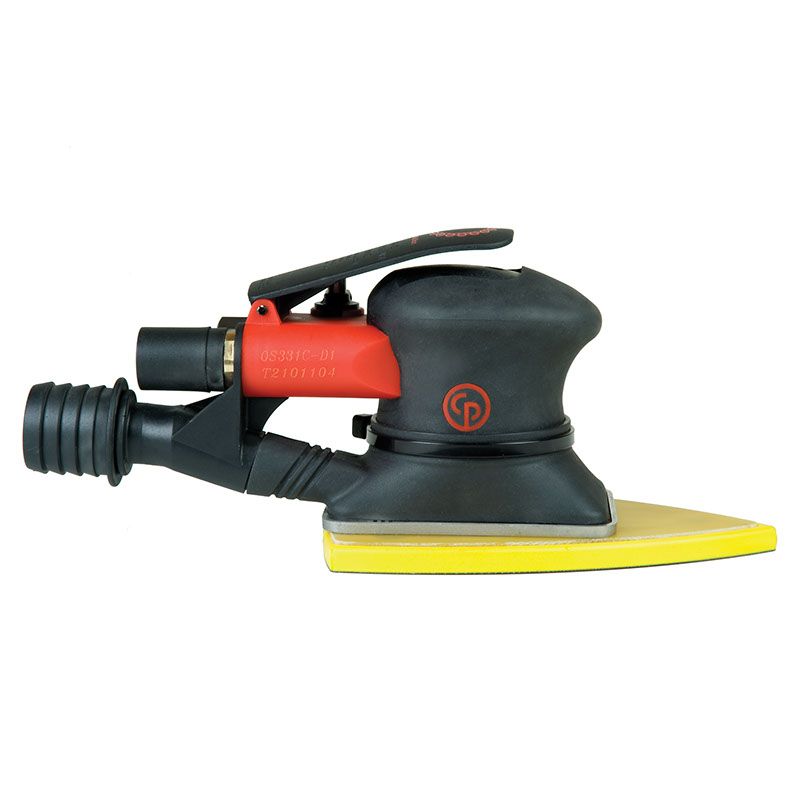

CP7263/64/66/67 Series - Rectangle/Delta Sanders
.tif/jcr:content/renditions/cq5dam.web.800.800.jpeg)
.tif/jcr:content/renditions/cq5dam.web.400.400.jpeg)
Technical Specifications
Power & Battery
Max power
210 W
Speed
Free Speed
10000 rpm
Air consumption at free speed
8.5 l/s
Overspeed shut-off
No
Noise & vibrations
Sound Power
89 dB(A)
Sound Pressure
78 dB(A)
Uncertainty vibration-K
3.7 m/s²
Vibration
9 m/s²
Air information
Air consumption at load
8.5 l/s
Air inlet thread size (in)
1/4
Air inlet thread type
NPT
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Size & Weight
Height (H)
100 mm
Length (L)
240 mm
Width (W)
100 mm
Weight
0.71 kg
Design & Functions
Abrasive Pad Attachment
Hook&Loop
Autobalancer
No
Delta Abrasive Pad Size (in)
3-7/8x5-5/8
Delta Abrasive Pad Size (mm)
100x144
Exhaust
Rear
Main Material type
Aluminium, Composite over-sleeve
Orbit Size (in)
3/32
Orbit Size (mm)
2.5
Orbit type
Jitterbug
Pad holes number
4
Pad type
Foam
Rotative inlet
No
Starting system
Lever
Vacuum
Central vacuum
CP7267CVE
8941172670
