CP7741 Series - Impact wrench
Technical Specifications
Torque
Max working torque fwd
690 Nm
Max torque reverse
970 Nm
Min working torque fwd
120 Nm
Torque limited
No
Air information
Air consumption at load
8.7 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power (dba)
Sound Power
103 dB(A)
Sound Pressure
92.6 dB(A)
Uncertainty vibration-K
3.8 m/s²
Vibration (m/s²)
Vibration
9.4 m/s²
Speed
Free Speed
10000 rpm
Air consumption at free speed
2.1 l/s
Size & Weight
Height (H)
183 mm
Length (L)
245 mm
Width (W)
76 mm
Power weight ratio
410 Nm/kg
Side to Center
38 mm
Weight
2.35 kg
Design & Functions
Blow per minute
1145
Body
Composite
Clutch housing
Aluminium
Clutch lubrication type
Grease
Handle type
Pistol
Impact mecanism
Twin hammer
Main Material type
Composite
Output drive size (in)
1/2
Output drive type
Sq
Output retainer type
Friction ring
Side handle
No
Starting system
Trigger
Suspension option
Not available

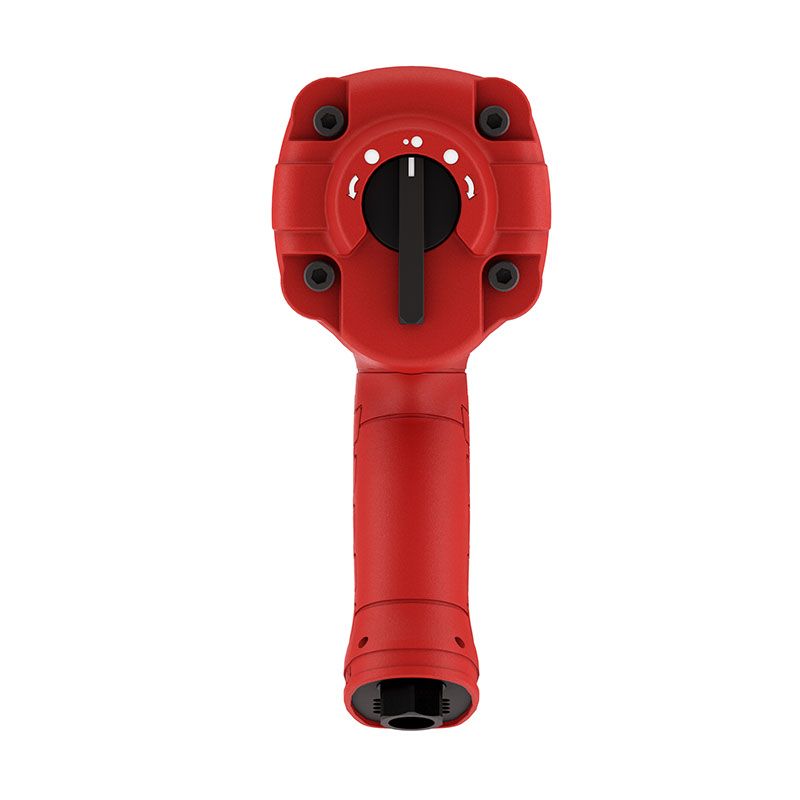

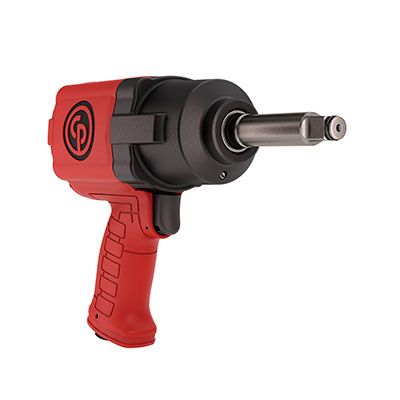

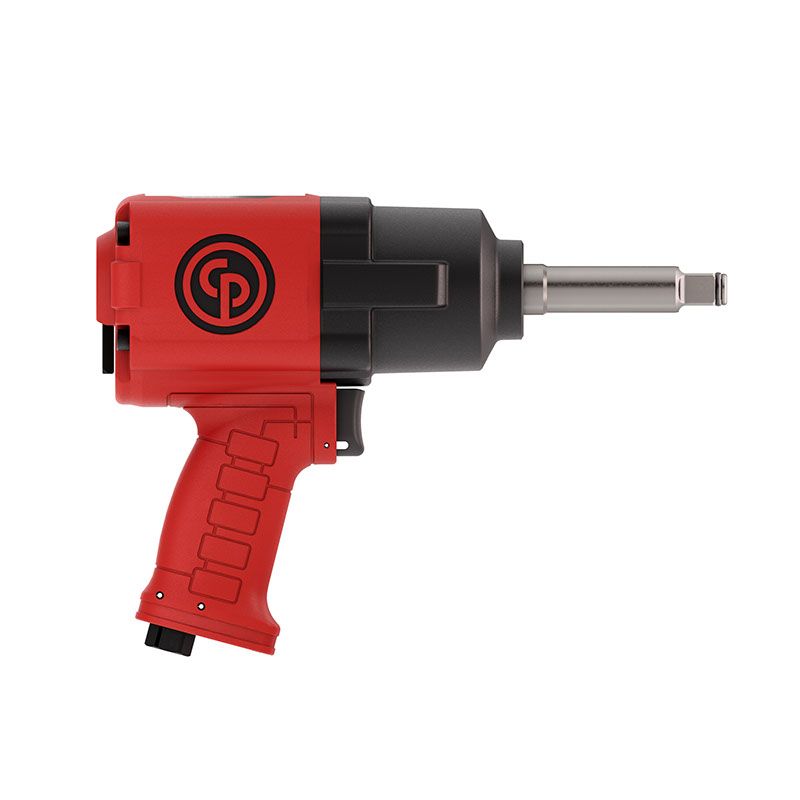

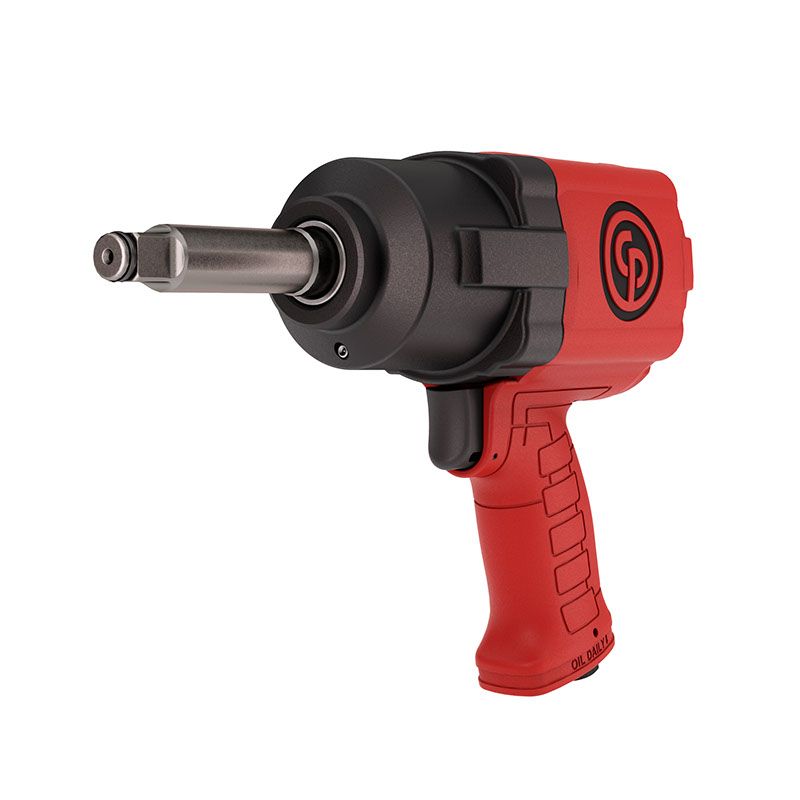

CP7741-2
8941077412
