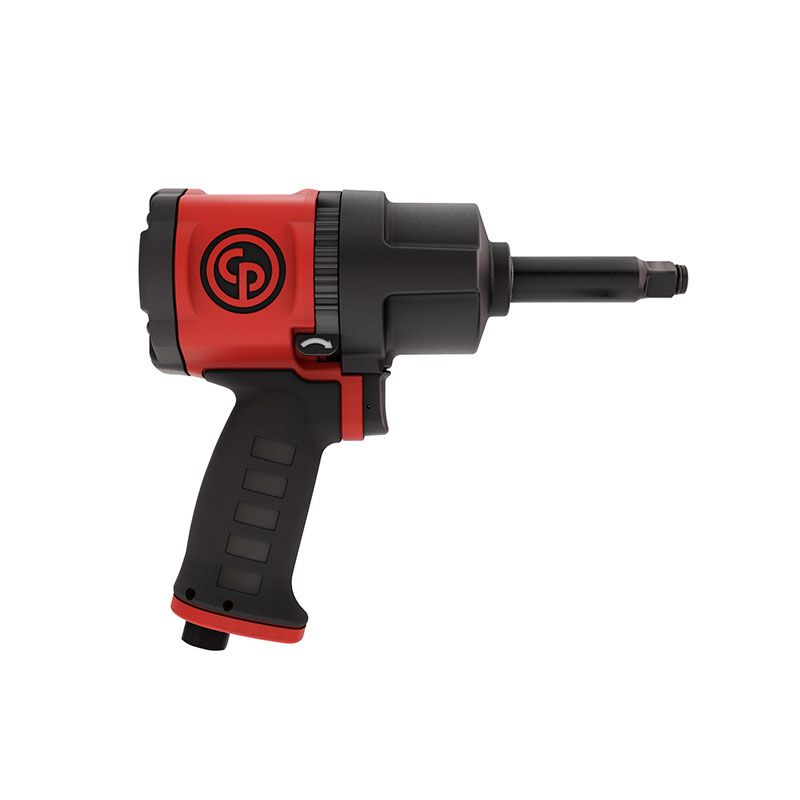

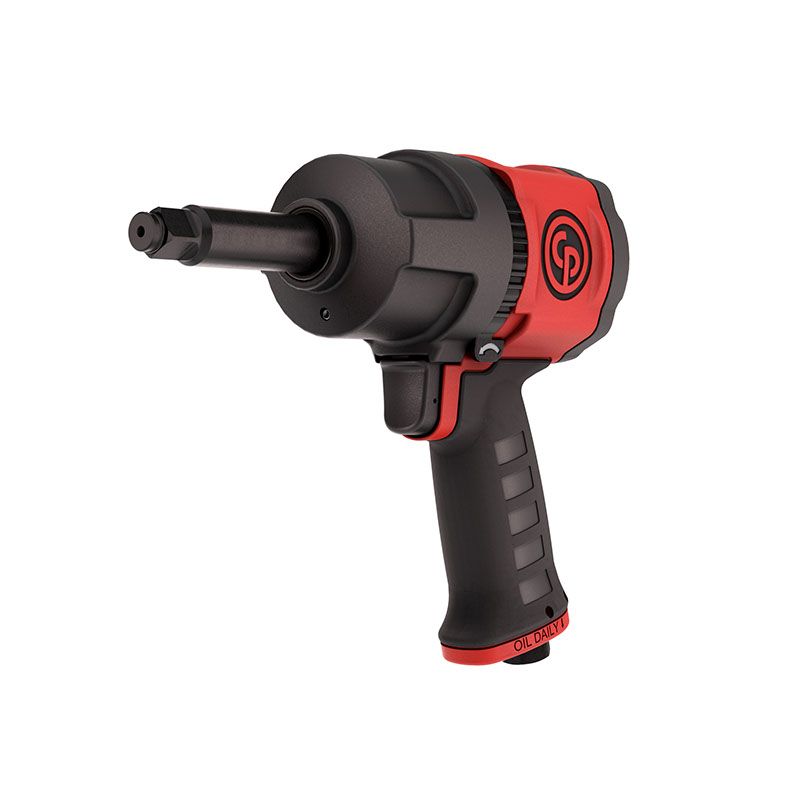

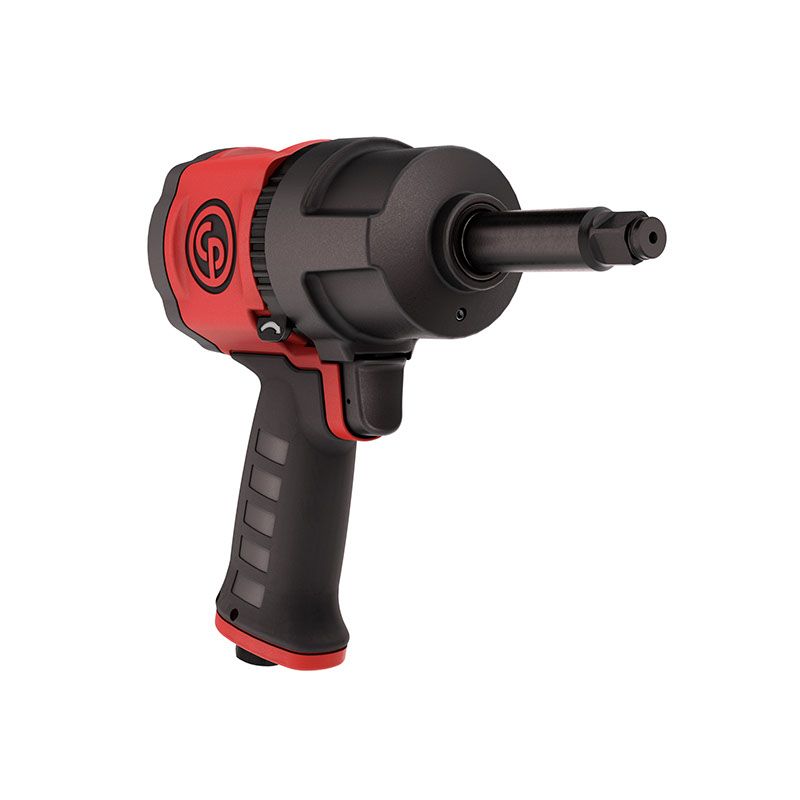

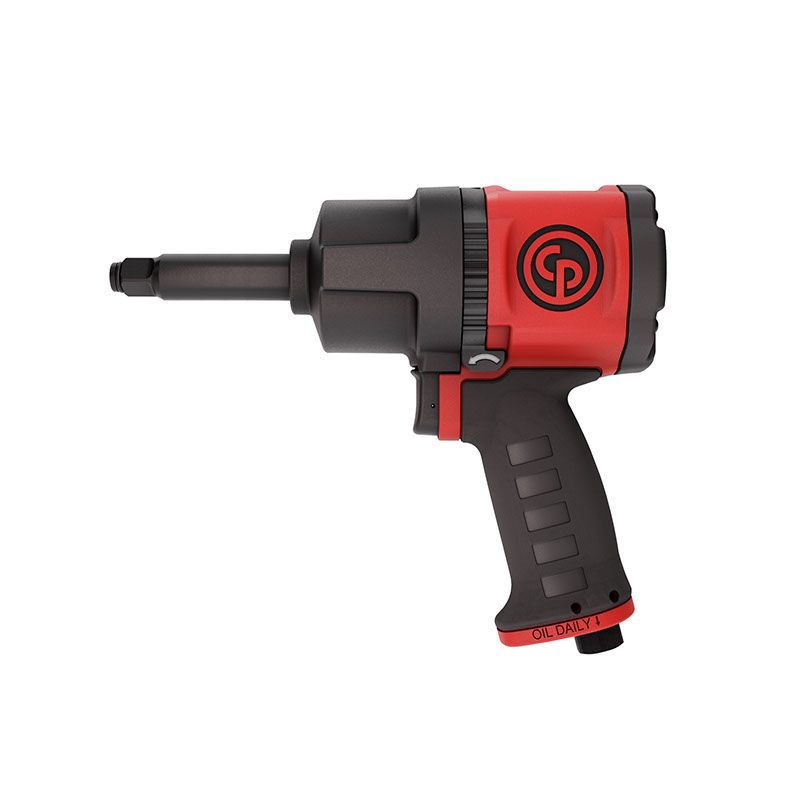

CP7748 Series - Impact Wrenches
Technical Specifications
Design & Functions
Air inlet thread size (in)
1/4
Body
Composite
Output drive type
Sq
Starting system
Trigger
Output retainer type
Friction ring
Torque limited
No
Max torque reverse
1300 Nm
Sound Power
105.3 dB(A)
Min working torque fwd
95 Nm
Min hose diam (5 m hose length)
10 mm
Uncertainty vibration-K
3.8 m/s²
Output drive size (in)
1/2
Blow per minute
1350
Weight
2.11 kg
Min hose diam (16 ft hose length)
0.38 in
Impact mecanism
Twin hammer
Max working torque fwd
750 Nm
Length (L)
225 mm
Free Speed
7000 rpm
Max dynamic air working pressure
6.3 bar
Clutch lubrication type
Grease
Handle type
Pistol
Clutch housing
Aluminum
Sound Pressure
94.3 dB(A)
Vibration (m/s²)
11.3
