CP7748 Series - Impact Wrenches

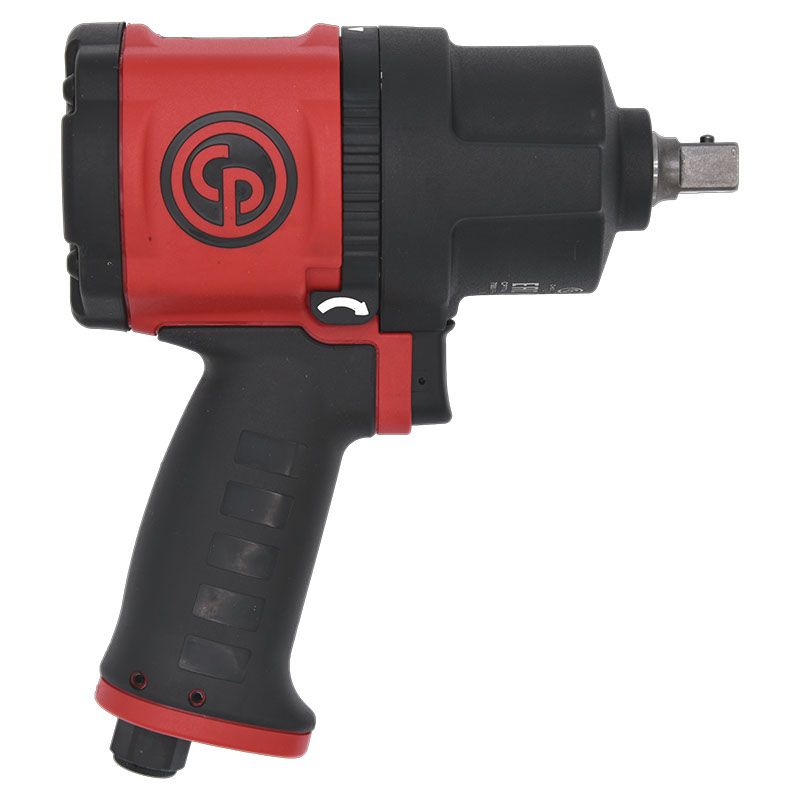

CP7748-P PIN STYLE IMPACT WRENCH product photo
The CP7748 series impact wrench with its torque of 960ft.lbs / 1,300 Nm, twin hammer impact mechanism, and composite housing is powerful and durable and ensures efficient bolting and unbolting when changing wheels and tires on light vehicles. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748 series is composed of 3 models: 1/2" short anvil with Friction Ring retainer; 1/2" short anvil with Pin-Style retainer; and 1/2" extended anvil with Friction Ring retainer. Country of origin is TW. Customs tariff is 84671190

Technical Specifications

ImperialMetric
Torque
Max working torque fwd
72 Nm
Max torque reverse
1250 Nm
Min working torque fwd
779 Nm
Torque limited
No
Air information
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power
105.3 dB(A)
Sound Pressure
94.5 dB(A)
Uncertainty vibration-K
4.5 m/s²
Vibration
12 m/s²
Speed
Free Speed
9200 rpm
Size & Weight
Height (H)
200 mm
Length (L)
184 mm
Width (W)
78 mm
Side to Center
39 mm
Weight
2 kg
Design & Functions
Blow per minute
1350
Body
Composite
Clutch lubrication type
Grease
Handle type
Pistol
Impact mecanism
Twin hammer
Output drive size (in)
1/2
Output drive type
Sq
Output retainer type
Pin retainer
Starting system
Trigger
CP7748-P PIN STYLE IMPACT WRENCH product photo

CP7748-P PIN STYLE IMPACT WRENCH

8941177484

dimention
Dimensions 21.3 x 10.4 x 24.5 cm
weight
Weight 2.33 kg

Benefits

Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort
960 ft.lbs / 1,300 Nm of max torque in reverse position for high productivity
Curved rubber handle to help prevent slipping
One-hand reverse system (Ring system) for better ergonomics

Features

Composite housing
Twin hammer impact mechanism
Hard anodized end plates
Chromium aluminum cylinder for high durability
