CP3109 Series - Angle Grinders
Technical Specifications
Speed
Free Speed
13000 rpm
Air consumption at free speed
10 l/s
Design & Functions
Autobalancer
No
Guard max rotation
360 °
Guard positions
0
Main Material type
Aluminium, Composite over-sleeve
Output Spindle Thread
3/8-24 UNF
Rotative guard type
Band
Spindle lock
No
Starting system
Safety lever
Swiveling guard
Key
Wheel/Disc diameter (in)
4
Wheel/Disc diameter (mm)
100
Noise & vibrations
Sound Power
95 dB(A)
Sound Pressure
84 dB(A)
Uncertainty vibration-K
2.4 m/s²
Vibration
7.2 m/s²
Air information
Air consumption at load
15 l/s
Air inlet thread size (in)
3/8
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Power
Max power
600 W
Size & Weight
Length (L)
287 mm
Weight
1.5 kg

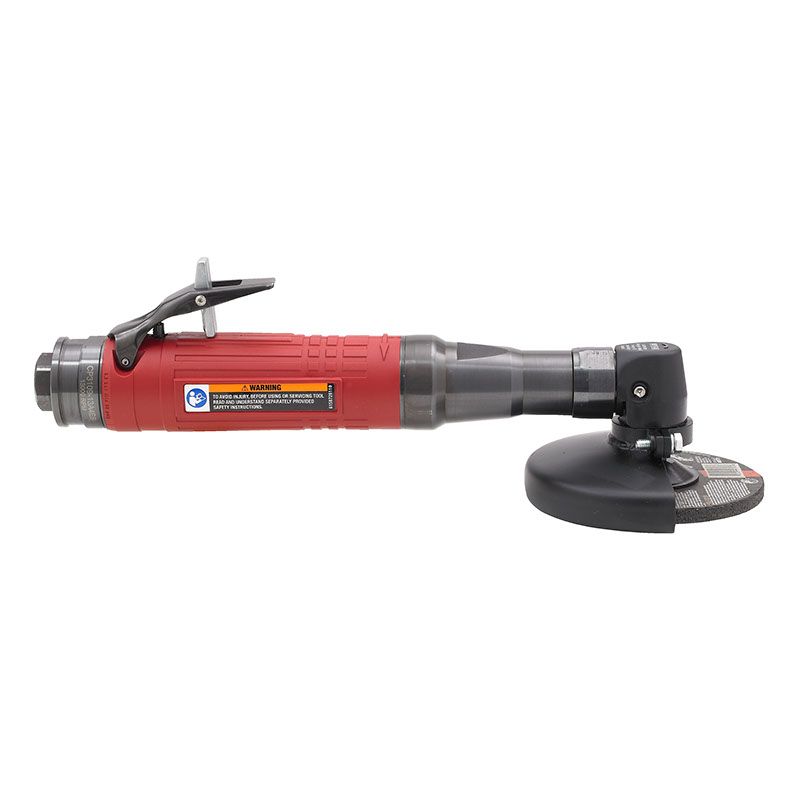

CP3109-13A4ES
6151607040
Dimensions 33 x 23 x 10 cm
Weight 2.3 kg
