CP3119 Series - Straight Grinders
Technical Specifications
Design & Functions
Autobalancer
No
Exhaust
Rear
Governor type
Ball
Main Material type
Aluminium, Composite over-sleeve
Output Spindle Thread
3/8-24 UNF
Rotative guard type
Band
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever
Wheel/Disc diameter (in)
4
Wheel/Disc diameter (mm)
100
Wheel thickness (in)
1/2
Wheel thickness (mm)
13
Power & Battery
Max power
900 W
Air information
Air consumption at load
16 l/s
Air inlet thread size (in)
3/8
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Size & Weight
Length (L)
338 mm
Weight
1.8 kg
Speed
Free Speed
12000 rpm
Air consumption at free speed
7 l/s
Overspeed shut-off
No
Noise & vibrations
Sound Power
89 dB(A)
Sound Pressure
78 dB(A)
Vibration (m/s²)
<2.5

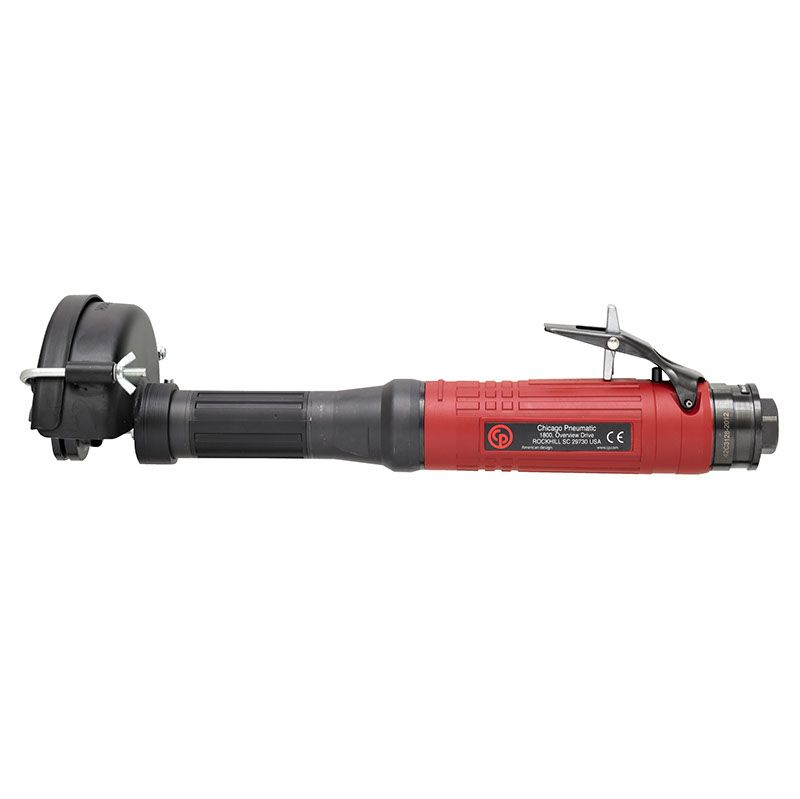

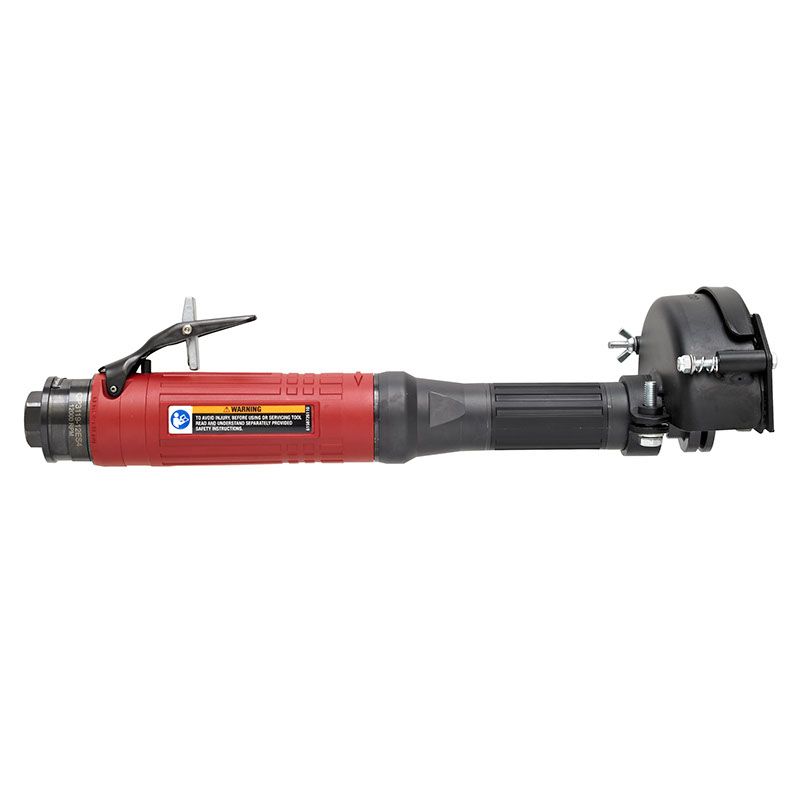

CP3119-12ES4
6151606020
Dimensions 38 x 18 x 17 cm
Weight 2.48 kg
