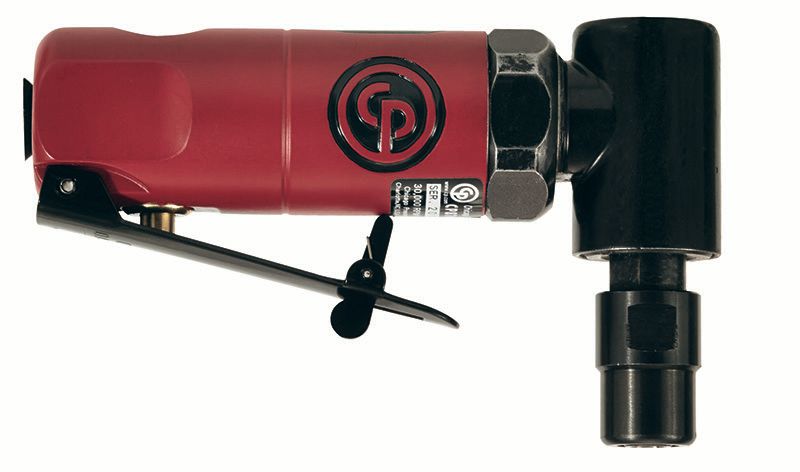

CP875 Series - Die Grinders

The CP875 series is designed for general maintenance in limited spaces. It has an integrated pneumatic regulator with a power of 0.3 hp (220 W). It is a very compact and lightweight tool, ensuring extreme maneuverability in high-speed grinding applications. Available as a bare tool or as a kit.

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Size & Weight

Length (L)

124 mm

Weight

0.45 kg

Speed

Free Speed

22500 rpm

Air consumption at free speed

10 l/s

Air information

Air consumption at load

10 l/s

Air inlet thread size (in)

1/4

Air inlet thread type

NPT

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.38 in

Min hose diam (5 m hose length)

10 mm

Noise & vibrations

Sound Power

112.3 dB(A)

Sound Pressure

101.3 dB(A)

Uncertainty vibration-K

1.9 m/s²

Tightening Strategies

Angle Type

90°

Power

Max power

220 W

Design & Functions

Collet max capacity

1/4 (6.4mm)

Exhaust

Rear

Governor type

Main Material type

Aluminium, Composite over-sleeve

Rotative inlet

Spindle lock

Starting system

Safety lever

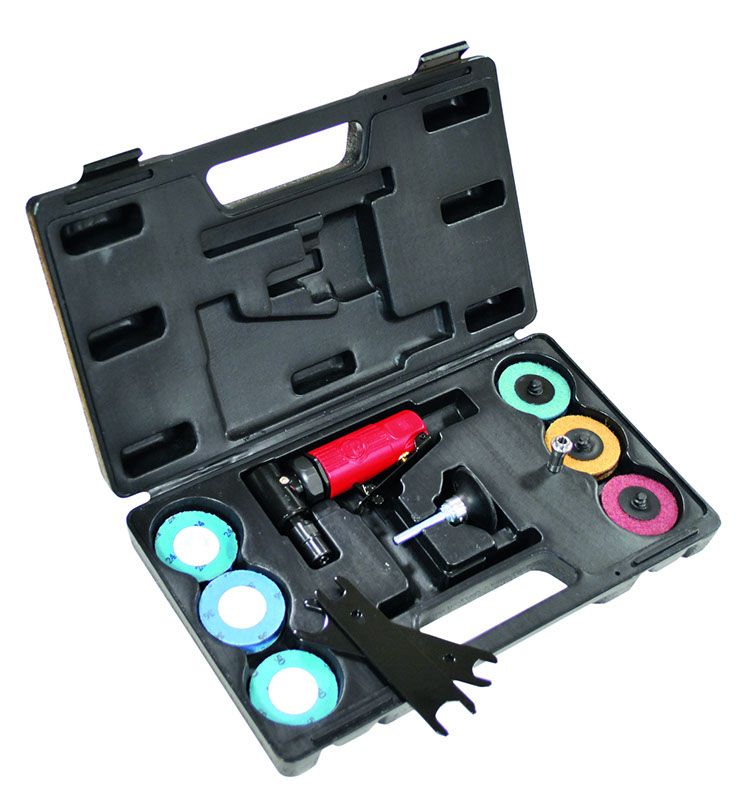

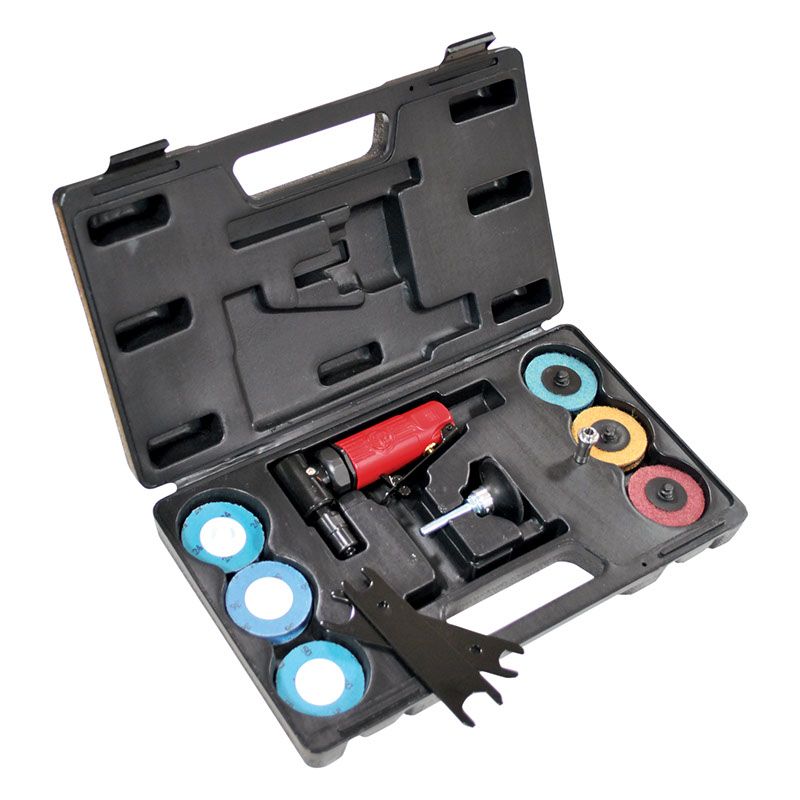

CP875 Kit

8941108751

Kit- 1/4"(6 mm) pneumatic die grinder

Add to Quote Contact Us Find a dealer

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

90° angle head allows flexibility in tight areas

Compact and lightweight tool designed for easy maneuverability

Built-in air regulator

Includes 1/4" and 6 mm collets
