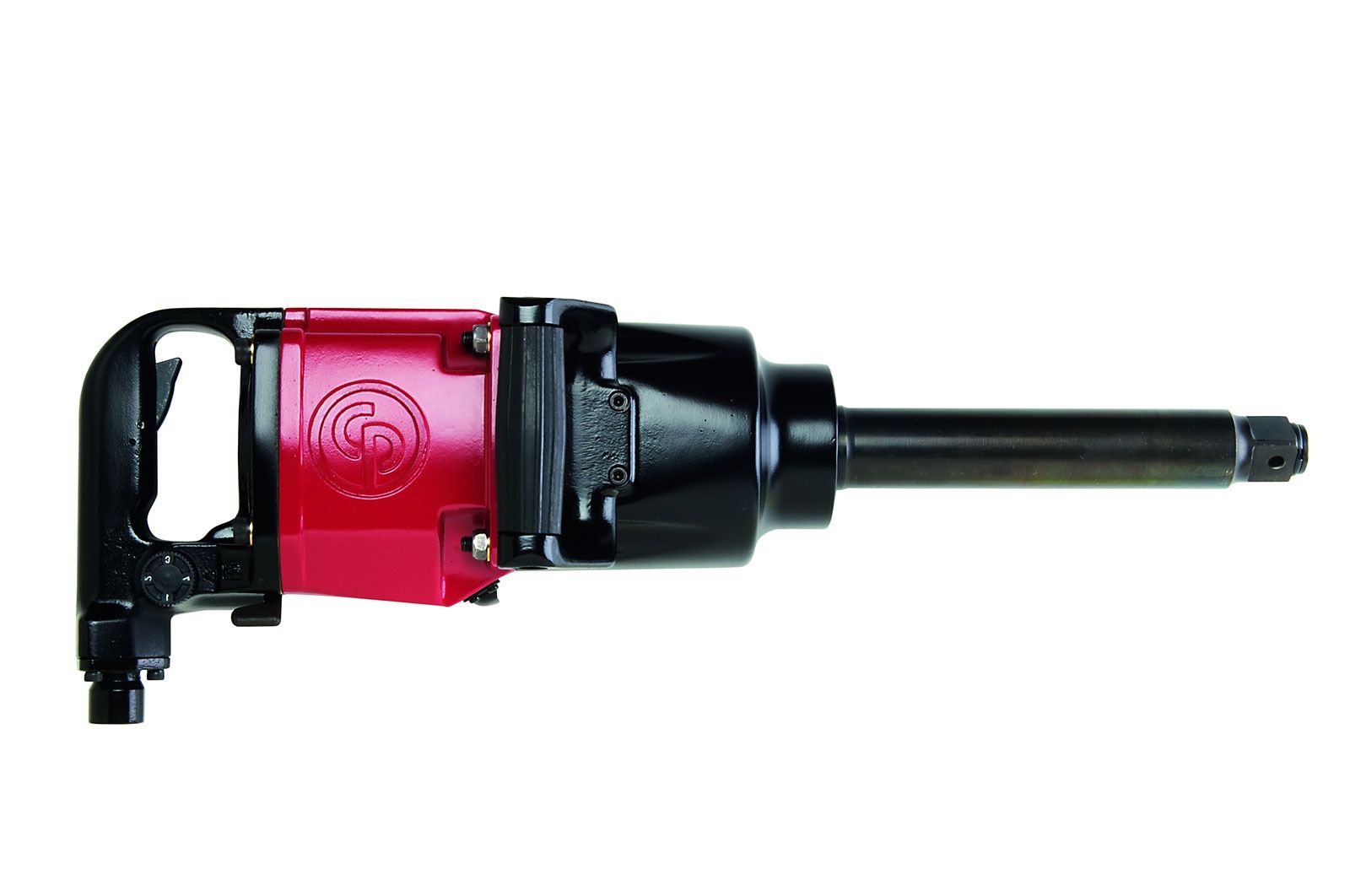

Our strongest and most powerful 1" impact with an extended anvilOperator productivityConvenient reverse valve for ease of useIdeal for high volume tire work on trucks, buses, and heavy equipment


1" impact wrenchRocking dog clutch4-position power settings throttle for ease of useConvenient reverse valvePlus 7" extended anvil

Part numberT024585
Actual air consumption25 l/s52 cfm
Air inlet thread size1/2 "
Average air consumption5.6 l/s11.88 cfm
Blows per minute540
Box dimensions680x240x170 mm
Clutch typePinless rocking dog
European StandardsEN ISO 11148-6:2013
Free speed3700 rpm
Handle typeD-Handle Inside Trigger
Length572 mm22.5 "
Maximum Torque (reverse)3390 Nm2500 ft.lbs
Min. hose size13 mm1/2 "
Net weight16.2 kg35.71 lb
Power/weight ratio209.3 Nm/kg70
Socket retainerDual (hole+friction)
Sound Power114 db(A)
Sound pressure103 db(A)
Square drive1 "
Vibration8.5 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)2.6 m/s²
Working Torque Range (fwd)240 - 2,800 Nm185 - 2,065 ft.lbs
