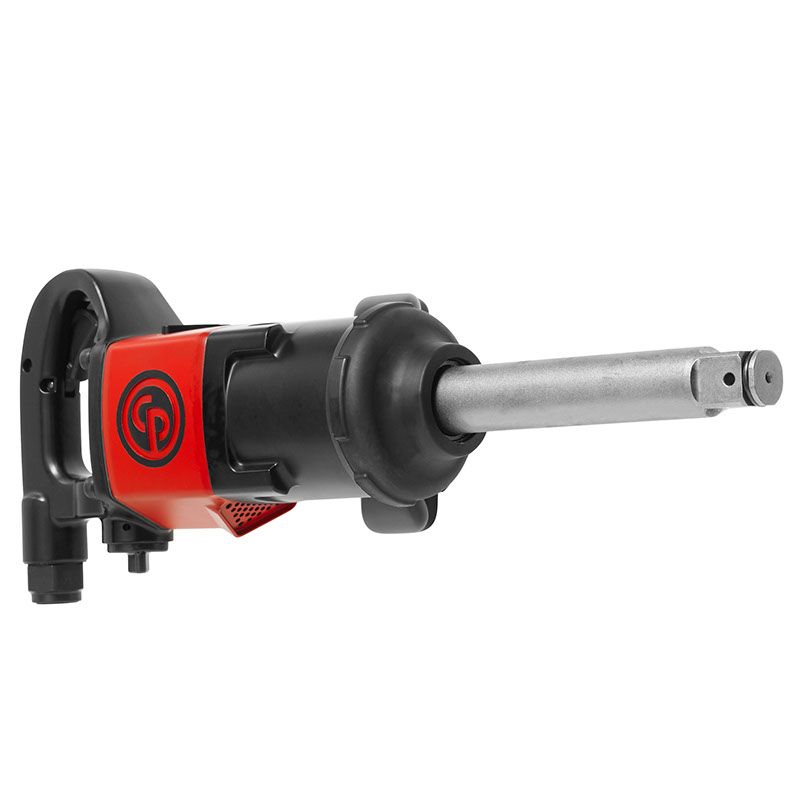

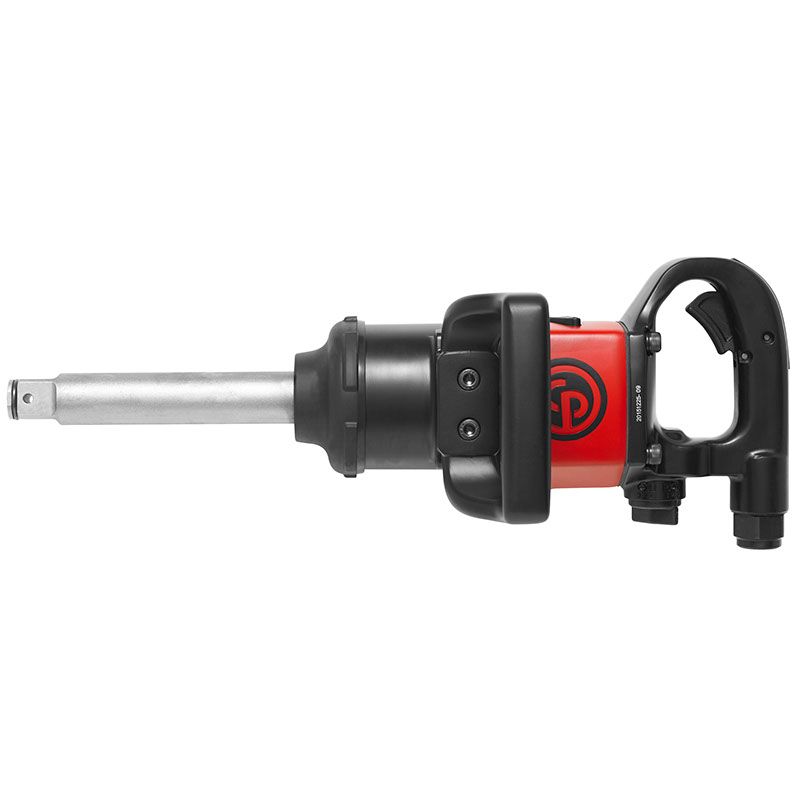

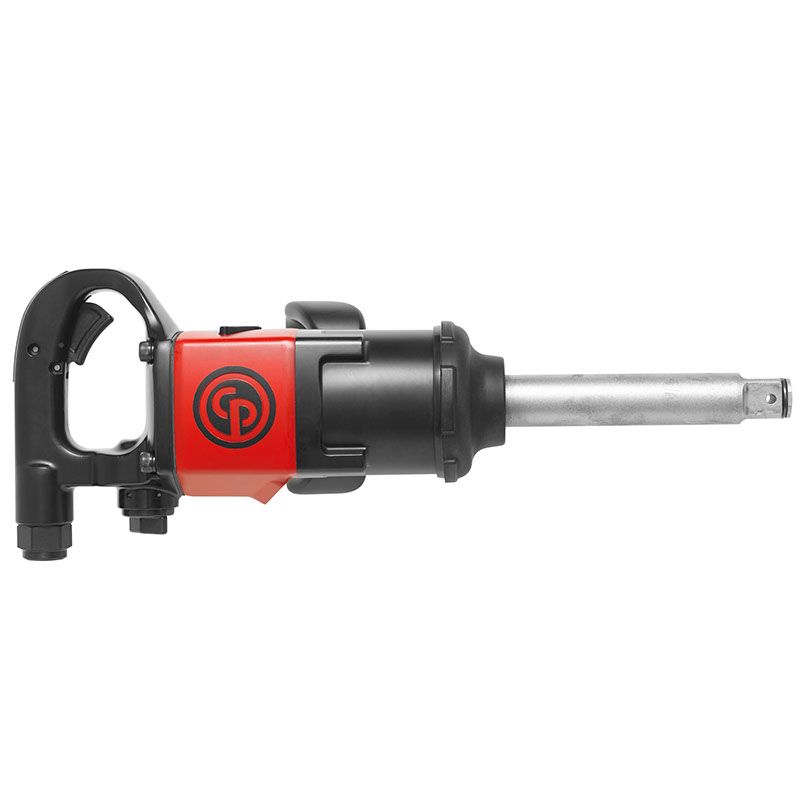

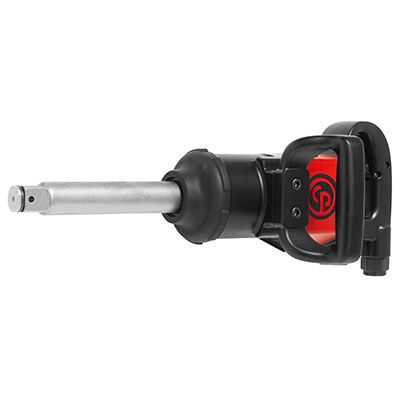

CP7783 Series - Impact Wrenches

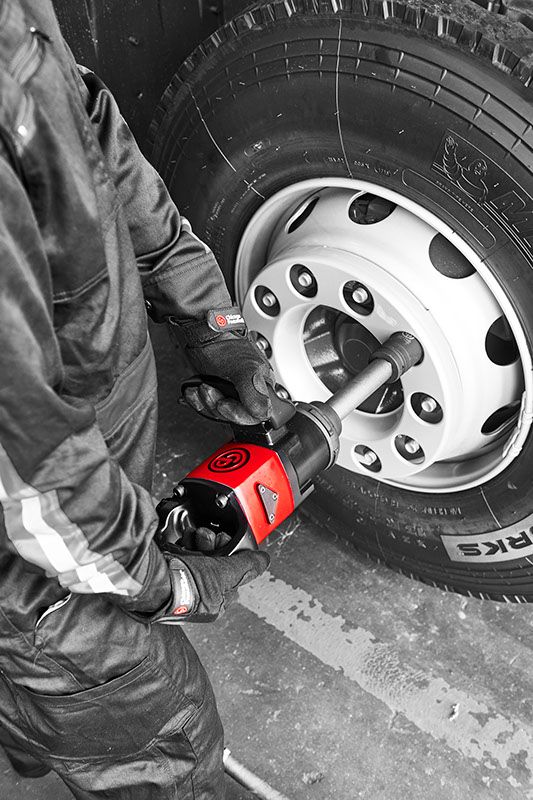

Optimal fastening and unbolting processes with this ultra lightweight 1" impact wrench. Featuring a pinless closed reinforced rocking dog impact mechanism and metal housing, this tool is designed to optimise tire changing. It delivers a maximum reverse torque up to 1,770 ft.lbs / 2,400 N. The CP7783 series consists of 2 models: 1" short anvil and 1" long anvil (6" anvil).

Country of origin is TW. Customs tariff is 84671190

Technical Specifications

Imperial Metric

Torque

Max working torque fwd

1700 Nm

Max torque reverse

2400 Nm

Min working torque fwd

560 Nm

Torque limited

Air information

Air consumption at load

19 l/s

Air inlet thread size (in)

1/2

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.75 in

Min hose diam (5 m hose length)

13 mm

Noise & vibrations

Sound Power

113 dB(A)

Sound Pressure

102 dB(A)

Uncertainty vibration-K

4.1 m/s²

Vibration (m/s²)

15.1

Speed

Free Speed

6200 rpm

Size & Weight

Length (L)

500 mm

Weight

9.5 kg

Design & Functions

Blow per minute

900

Body

Aluminium

Clutch housing

Aluminium

Clutch lubrication type

Grease

Handle type

D-handle

Impact mecanism

Pinless rocking dog

Main Material type

Aluminium

Output drive size (in)

Output drive type

Output retainer type

Dual

Side handle

Yes

Starting system

Trigger

CP7783-6

8941077836

1" Pneumatic impact wrench

Package Dimensions 53.1 x 20.7 x 12.7 cm

Package Weight 10.22 kg

Add to Quote Contact Us Find a dealer

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Lightweight tool for reduced operator fatigue

1,770 ft.lbs (2,400 Nm) max torque in reverse for high productivity

Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability

Four positions for D-handle placement to provide ultimate operator comfort

Top or down exhaust, quick and easy to change

Accessories and Services

	Name	Item #
	SS818 1" Drive Set of 8 pcs Metric Impact Sockets		SS818 1" Drive Set of 8 pcs Metric Impact Sockets
	SS808D 1'' Drive Set of 8 pcs SAE Deep Impact Sockets		SS808D 1'' Drive Set of 8 pcs SAE Deep Impact Sockets
	SS818D 1" Drive Set of 8 pcs Metric Deep Impact Sockets		SS818D 1" Drive Set of 8 pcs Metric Deep Impact Sockets
	SS814D 1'' Drive Set of 4 pcs Metric Impact Sockets		SS814D 1'' Drive Set of 4 pcs Metric Impact Sockets
	SS8205WS 1" Drive Set of 5pcs WHEEL SER SAE/Imperial&Metric Sockets		SS8205WS 1" Drive Set of 5pcs WHEEL SER SAE/Imperial&Metric Sockets
	SS8210HDW 1" 10 PC Heavy Duty Wheel Service		SS8210HDW 1" 10 PC Heavy Duty Wheel Service
	SS8208WS 1"DR WS 8PC SET		SS8208WS 1"DR WS 8PC SET
	SS8107WS 1" Drive WS Set of 7 pcs		SS8107WS 1" Drive WS Set of 7 pcs
	HOSE CONNECTOR 13MM SCREW M 1/2'' BSP		HOSE CONNECTOR 13MM SCREW M 1/2'' BSP
	HOSE CONNECTOR 13MM SCREW M 1/2'' NPT		HOSE CONNECTOR 13MM SCREW M 1/2'' NPT
