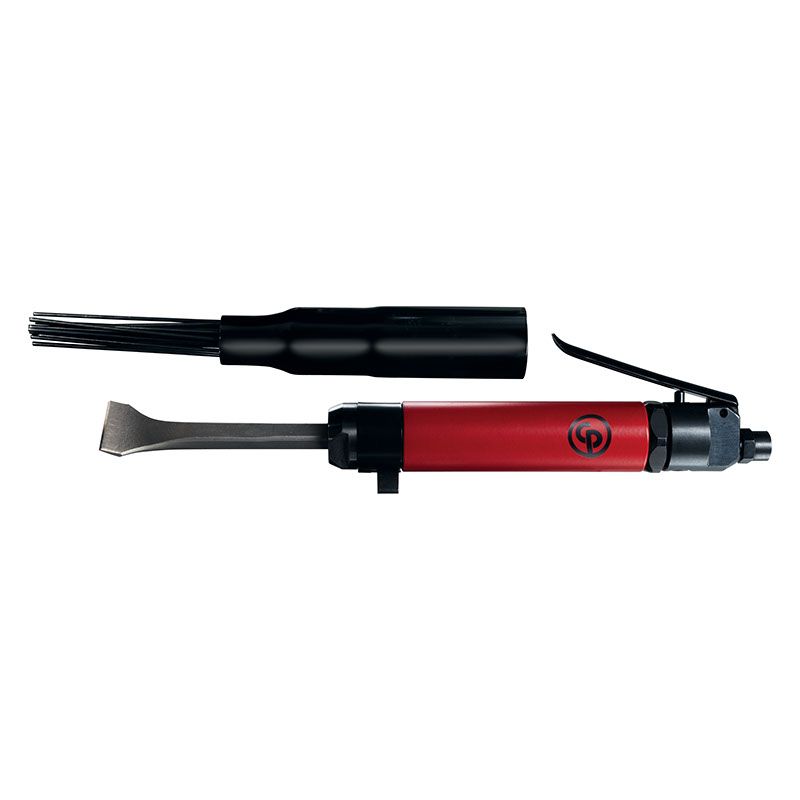

CP7120 Series - Needle Scalers/Chisel hammer
Technical Specifications
Air information
Air consumption at load
7.4 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Design & Functions
Blow per minute
4800
Chisel shank
Square
Chisel shank diameter (in)
1/2
Chisel shank diameter (mm)
12.7
Energy
5.3 J
Needle capacity
19x1/8 (3)
Starting system
Lever
Size & Weight
Bore diameter
25 mm
Length (L)
457 mm
Stroke
28.4 mm
Weight
2.8 kg
Noise & vibrations
Sound Power
110 dB(A)
Sound Pressure
99 dB(A)
Uncertainty vibration-K
3.4 m/s²
Vibration
11.4 m/s²
CP7120
8941071200
