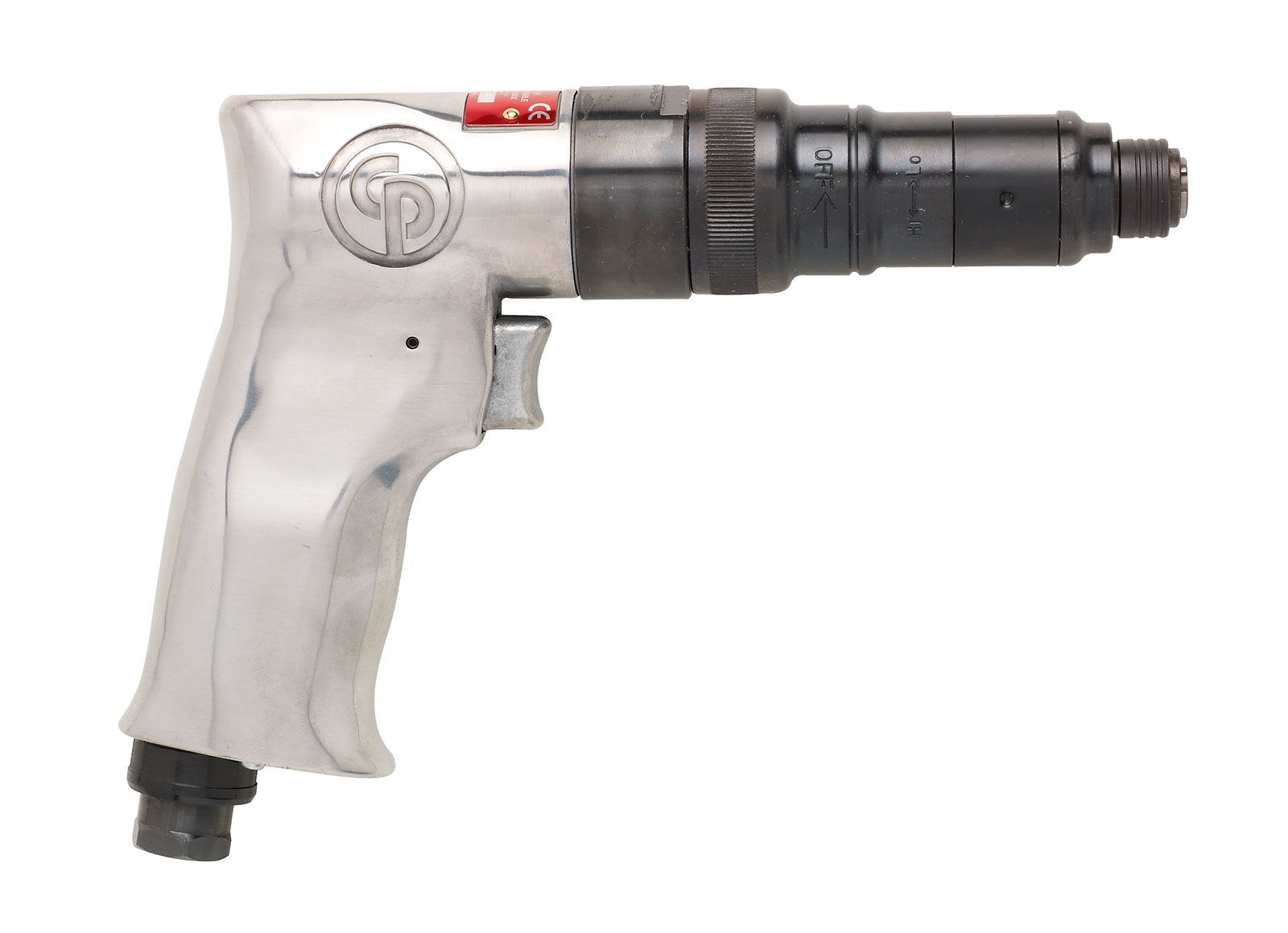

CP781

Benefits

Reliable & easy-to-adjust cushion Clutch for powerful fasteningRobust Aluminum body & Steel clutch housing Ideal tool for general assembly, metal, wood, PVC and refurbishing applications

Features

Pistol Cushion clutch screwdriverExternal clutch adjustmentBuilt-in 1/4" Female Hex quick-changeConvenient single handed forward/reverseHigh torque 75 in.lbs (8.47 Nm)

MetricImperial
ModelCP781
Part numberT025096
Actual air consumption453 l/mn16 cfm
Air inlet thread size1/4 "
Average air consumption113 l/mn4 cfm
Bit holderQuick Change Hexagonal Female
Clutch typeCushion
Diameter31 mm0.78 "
Free speed800 rpm
Free speed air consumption11.8 l/s25 cfm
Handle typePistol
Height150 mm5.9 "
Length226 mm8.88 "
Max working torque11.3 Nm8.4 ft.lbs
Min working torque6.2 Nm4.57 ft.lbs
Min. hose size10 mm3/8 "
Net weight1.36 kg3 lb
Output drive1/4 "
Sound Power110.5 db(A)
Sound pressure99.5 db(A)
Vibration<2.5 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)- m/s²
