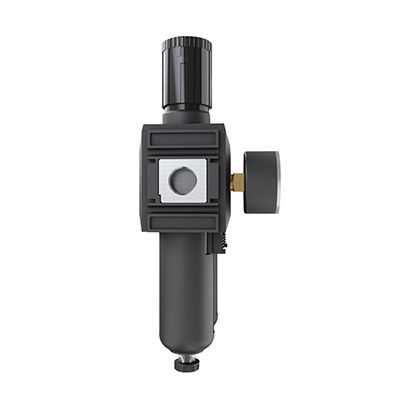

FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
Chicago Pneumatic FRL – Filters, Regulators and Lubricators - units enable your tools to run at optimal performance, hence reducing downtime and increasing productivity. FRL is key to achieving a good return on investment as it will ensure the required air pressure for the pneumatic tool, as well as good air quality by reducing the risk of moisture and dust in the air line. The FRL also helps maintain your air line and tools by providing lubrication. Country of origin is DE. Customs tariff is 84811005

Technical Specifications

ImperialMetric
Design & Functions
Housing material
Composite
Product content
Single part
Type of drain (oil)
NA
Type of drain (water)
Semi automatic
Type of FRL
2 stages FRL
气源信息
Air connection thread size (in)
1/2
Air connection thread type
BSP
Max dynamic air working pressure
10 bar
Max air flow
58 l/s
能力/尺寸
Oil capacity
80 ml
通用信息
类型
Air preparation
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo
FRL12BSP product photo

FRL12BSP

6158135640
FRL - Filter-regulator, lubricator 1/2" BSP
dimention
Dimensions 28.9 x 19.4 x 7.9 cm
weight
Weight 1.2 kg

Benefits

5μm filter with automatic or semi-automatic drain, 16 bars (232 PSI) max pressure for an optimised performance and services
Each modules of the FRL are available as a single unit to allow an easier and customized installation to fit customer’s needs
The automatic refilling system and max 180 ml oil tank capacity are making the FRL simpler and cleaner to use
The diaphragm type pressure valve insure lower pressure lost with high air flow which reduce energy consumption and CO2 emissions
