标准叶片式气动马达

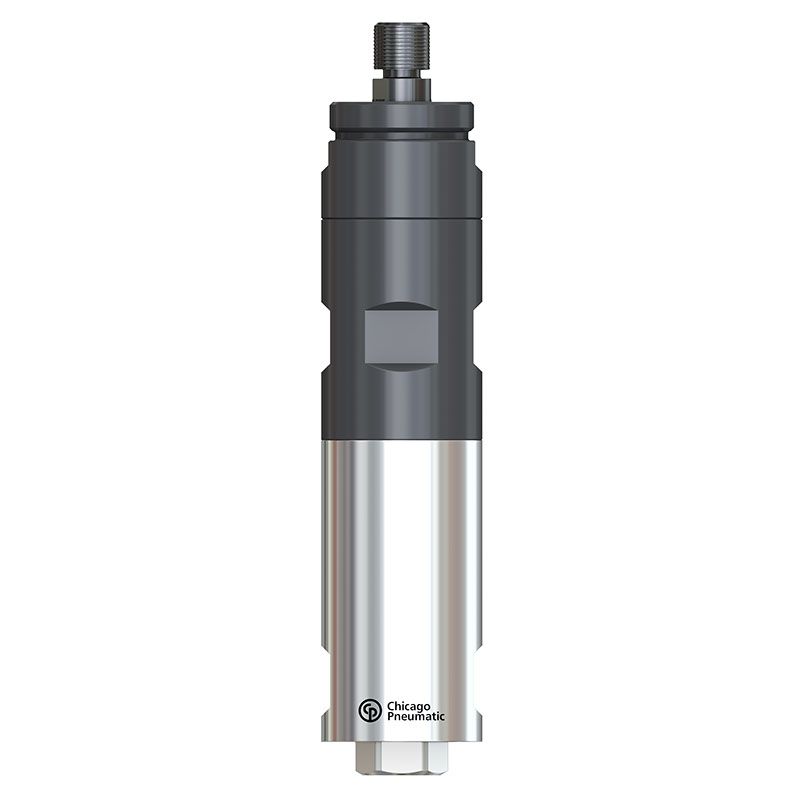

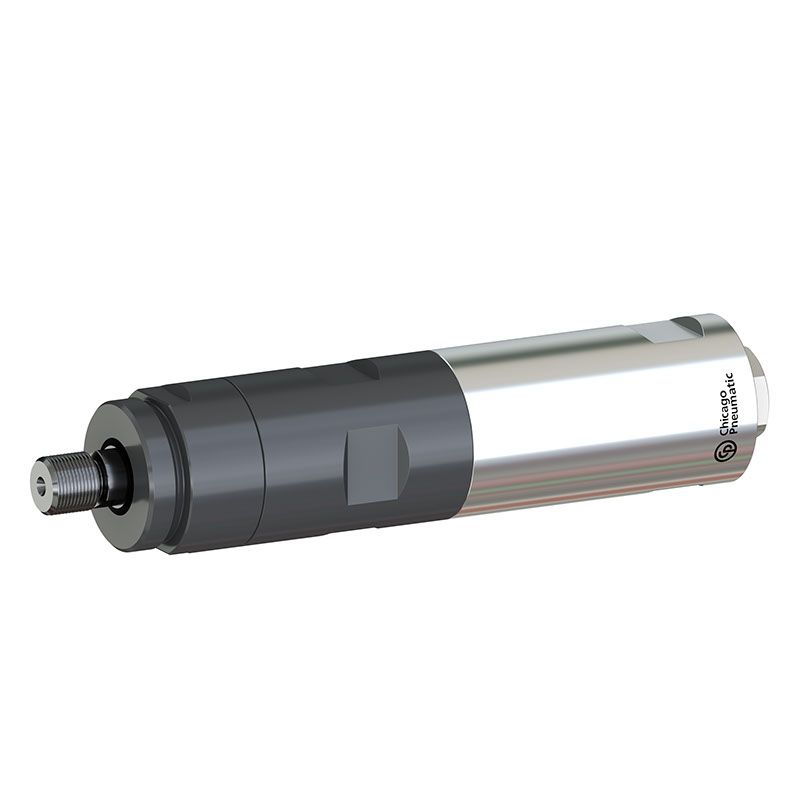

M84-4000-T-ATEX product.image.text.alttext

The standard pneumatic vane motors M84-4000-T-ATEX is compact in design, light in weight, have Threaded shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 840 W (1.13 hp), with a maximum torque of 7,6 Nm (5.6 ft.lbs) and 4000 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T4 Gb for gas and Ex II 2 D Ex h IIIC T110°C Db for dust

custom.product.country_of_origin. custom.product.commodity_code

custom.product.specification.title

custom.imperial custom.metric

安全性

保护索引 (IP代码)

IP66

气源信息

负载时排气量

16 l/s

最大气流量

16 l/s

进气管螺纹规格（in）

3/8

进气管螺纹规格

BSP

最大动态空气工作压力

6.3 bar

速度

最大空载转速范围

4000 rpm

扭矩

最小启动扭矩

6.1 Nm

停滞扭矩

7.6 Nm

最大功率时扭矩

3.8 Nm

Power & Battery

最大输出功率

0.8 kW

Design & Functions

同轴后端板

Yes

前螺母螺纹

Yes

主要材料类型

Steel

免润滑马达

输出轴螺纹

1/2-13 UNC

旋转驱动

Clockwise

转换加载代码

轴类型

Threaded shaft

启动系统

None

Size & Weight

重量

1.2 kg

M84-4000-T-ATEX

2051481434

不可反转气动马达-ATEX

custom.dimensions 33 x 10 x 7 cm

custom.weight 1.62 kg

custom.add.to.shopping.list.text helpdesk.contact_us.link custom.find_a_dealer.button

custom.product.related.documents.titlecustom.related.documents.title

custom.product.benefits

叶片低摩擦设计，坚固耐用。”

持续维持失速扭矩负载。

短而紧凑的行星齿轮系统，多功能解决方案

低耗空气设计，效率持久

强大的启动扭矩，可在操作过程中移动

custom.product.product_links.accessory_service.title

	custom.product.accessories.table.name	custom.product.accessories.table.item
	MOUNTING FLANGE HOLES M/MR84 H.SPEED		MOUNTING FLANGE HOLES M/MR84 H.SPEED
	MOUNTING FOOT M84 / MR84 K		MOUNTING FOOT M84 / MR84 K
	COMPOSITE FRL 1/2'' BSP		COMPOSITE FRL 1/2'' BSP
	COMPOSITE FRL 1/4'' BSP		COMPOSITE FRL 1/4'' BSP
	COMPOSITE FRL 1/2'' NPT		COMPOSITE FRL 1/2'' NPT
	COMPOSITE FRL 1/4'' NPT		COMPOSITE FRL 1/4'' NPT
	COMPOSITE FRL 3/8'' BSP		COMPOSITE FRL 3/8'' BSP
	COMPOSITE FRL 3/8'' NPT		COMPOSITE FRL 3/8'' NPT
	FRL12BSP		FRL12BSP
	R12BSP		R12BSP
