CP8222/32/42/52/75 Series - Impact Wrenches
Technical Specifications
Torque
Max working torque fwd
400 Nm
Max torque reverse
450 Nm
Min working torque fwd
80 Nm
Torque limited
No
Air information
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Noise & vibrations
Sound Power
100 dB(A)
Sound Pressure
89 dB(A)
Uncertainty vibration-K
2.4 m/s²
Vibration (m/s²)
5.8
Vibration
5.8 m/s²
Speed
Free Speed
11500 rpm
Size & Weight
Length (L)
177 mm
Power weight ratio
370 Nm/kg
Side to Center
30 mm
Weight
1.2 kg
Design & Functions
Blow per minute
1250
Body
Composite
Clutch housing
Aluminium
Clutch lubrication type
Grease
Handle type
Pistol
Impact mecanism
Twin hammer
Main Material type
Composite
Output drive size (in)
3/8
Output drive type
Sq
Output retainer type
Pin retainer
Starting system
Trigger

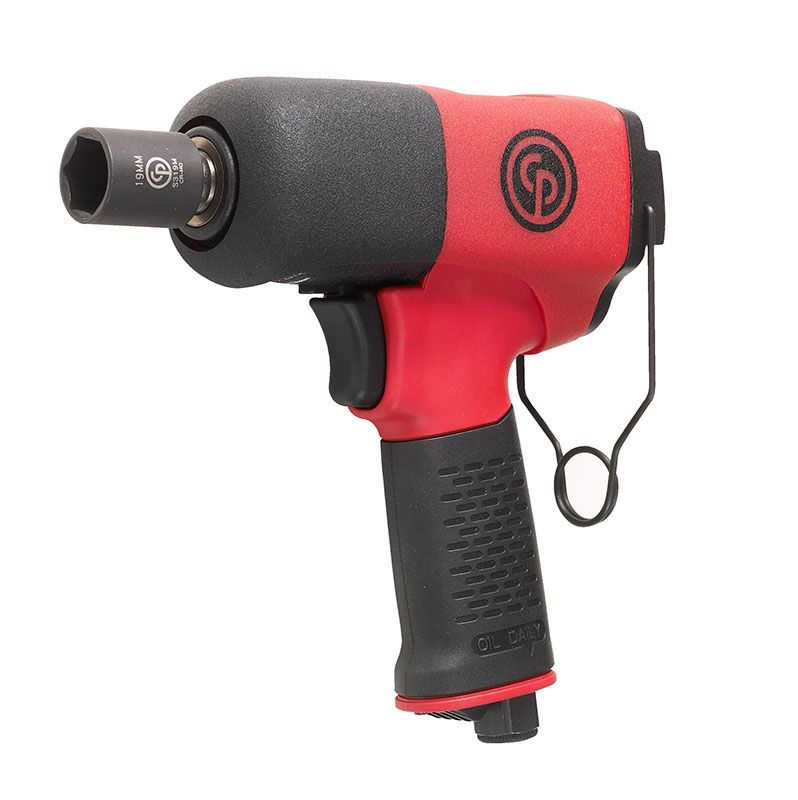

CP8222-P
6151590180
