To further extend our range of high precision, cordless torque tools, Chicago Pneumatic is introducing CP89 eTorque - Electronic Torque Wrench. CP8906TC is a 1/4” drive model covering a torque range of 2Nm (2 ft/lb) to 30Nm (22 ft/lb) at +/- 3% accuracy. CP8906TC features Torque and Angle measurement, P-Sets, Sequencing, Torque Check, Re-Hit Detection, and reporting via the CPLinQ application.
custom.product.include.item.title
CP89 eTorque - Electronic Torque Wrench is delivered with USB Connection Cable, Calibration Certificate, Molded Plastic Case, & Removable Foam Insert​

custom.product.specification.title

custom.imperialcustom.metric
Certifications, standards & directives
Type class
Type I, Class 3
Battery information
Battery type
AA Batteries
Max Ambient Operating Temperature
40 °C
Min Ambient Operating Temperature
-10 °C
Connectivity & Display
Feedback type
Acoustic Buzzer and 2x6 Leds
Torque
Max torque
30 Nm
Min torque
1.5 Nm
Overload Torque (%)
10
Overload torque
33 Nm
Size & Weight
Height (H)
45 mm
Length (L)
382 mm
Width (W)
44 mm
Lever arm length
382 mm
Weight
0.77 kg
General
Subfamily
Digital torque wrenches
Tightening Strategies
Angle accuracy (%)
±2 degree (rotating 90° at angular speed of 30°/s)
Angle measure
Yes
Tightening direction
CW Only
Design & Functions
Accuracy (ID accuracy_measurement tool) (%)
±2% (CW) and ±3%(CCW)
Autonomy (h)
8h
Communicating
Yes
Communication type
Bluetooth
Compliance
ISO 6789:2017
Curves memory capacity
N/A
Output drive size (in)
1/4
Output drive type
Sq
Quality strategies
Yes
Results memory capacity
2000
Unit measurement supported
Nm, ft/lb
Wireless communication
Yes
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext
CP8906TC product.image.text.alttext

CP8906TC

8941189061

1/4" Electronic Torque Wrench Torque Check 2 - 30 Nm​ (2 - 22 ft/lb)
dimention
custom.dimensions 48.9 x 15.1 x 7.7 cm
weight
custom.weight 770 g

custom.product.benefits

CPLinQ compatibility, high precision at +/- 3% Torque & +/- 2° Angle​
Robust gear system accurate up to 25,000 cycles
12 LED progressive light display
Strong vibration motor​
Soft grip, non-slip handle

custom.product.product_links.accessory_service.title

custom.product.accessories.table.name
custom.product.accessories.table.item
product
S210MD 1/4" Drive Deep Impact Socket 10MM
S210MD 1/4" Drive Deep Impact Socket 10MM
product
S208MDG 1/4" Drive Deep Magnetic Impact 8MM
S208MDG 1/4" Drive Deep Magnetic Impact 8MM
product

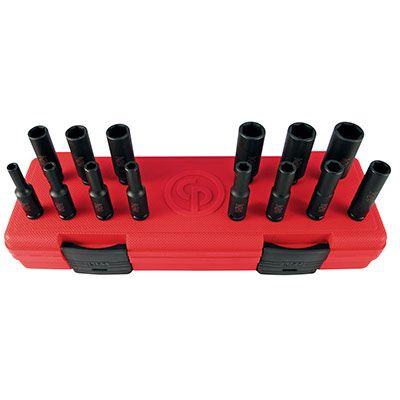

SS2114D 1/4" Drive Set of 14 pcs Metric Deep Impact Sockets
