How to choose the right industrial hydraulic torque wrench?
September 17, 2026
From wind turbines and pipelines to heavy manufacturing equipment, properly tightened bolts are critical to ensure safety, reliability, and long-term performance. Controlled bolting tools ensure the correct clamping force and joint integrity, reducing the risk of leakage or failure.
Industrial hydraulic torque wrenches are ideal tools for controlled bolting. They work by converting hydraulic pressure into controlled mechanical force, allowing operators to apply precise and repeatable torque to large bolts in critical joints. This article is designed to help you better understand how a hydraulic torque wrench works and how to help your clients select the right solution for critical bolting operations.
What is a hydraulic torque wrench?
A industrial hydraulic torque wrench is designed for industrial bolting applications where accuracy and reliability are essential. Offering extremely high-torque capacity (75 to 70 000 Nm) and excellent accuracy (+/- 3%), Hydraulic wrenches are ideal for large bolts and/or critical bolting applications. Unlike manual or impact tools, hydraulic torque wrenches use hydraulic pressure to generate controlled rotational force. The tool is typically connected to a hydraulic pump that generates pressure and then transmitted through hydraulic hoses to the torque wrench, where it is converted into mechanical force used to tighten the bolt.
Due to their performance characteristics, hydraulic torque wrenches are commonly used in industries such as energy, oil and gas, heavy manufacturing, mining, and construction, where bolt integrity and joint reliability are critical.
Discover the main components of a hydraulic torque wrench
A hydraulic torque system consists of three main components working together to deliver controlled torque:
Hydraulic pump
- Generates high-pressure hydraulic fluid (up to 700 bar).
- Can be electric or air driven.
- Equipped with a pressure gauge and control valves for accurate settings.

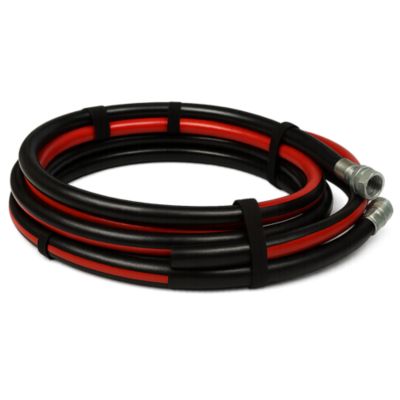

Hydraulic hoses
- Twin-line or coaxial hoses connect the pump to the wrench.
- Carry pressurized fluid safely and efficiently.
- Fitted with quick-connect couplings for easy setup.
Hydraulic torque wrench
- Converts hydraulic pressure into rotational force.
- Includes a powerhead, reaction arm, and socket.
- Operates in incremental strokes for precise torque application.
How does a hydraulic torque wrench generate torque?
The working principle of a hydraulic torque wrench is based on the conversion of hydraulic pressure into rotational force, through several steps.
Step 1: Hydraulic pressure is generated
The hydraulic pump produces pressurized hydraulic fluid (typically done in 3 stages, up to 700 bar). This pressure level can be precisely controlled, which allows operators to determine the torque output of the tool.
Step 2: Pressurized fluid moves the piston
The pressurized fluid travels through the hydraulic hose and enters the cylinder inside the torque wrench. As pressure builds inside the cylinder, the piston moves forward.
Step 3: Mechanical force is transmitted
The forward movement of the piston activates the internal ratcheting mechanism. This mechanism converts the linear motion of the piston into rotational force.
Step 4: Controlled torque is applied to the bolt
The rotational force is transferred to the socket (square drive) or hex drive (low-profile) attached to the bolt.
Step 5: Reach the desired torque by repetition
The process repeats: with each hydraulic cycle, the wrench advances incrementally, gradually tightening the bolt until the desired torque level is reached.
Because the torque output is directly related to the hydraulic pressure applied, operators can achieve very accurate and repeatable tightening results.
When should you choose hydraulic torque wrenches?
Hydraulic torque tools are essential for tightening and loosening large bolts where manual or pneumatic tools are insufficient.
Two types of hydraulic torque wrenches exist:
- Square Drive: For areas with ample clearance and/or very high torque requirements (above 40,000 Nm)
- Low-profile: For applications with limited clearance or smaller working window.
They offer 4 main advantages:
- Extremely high torque capacity
- Accurate and consistent preload
- Safer and more efficient for large flanges and heavy machinery
- Robust design for harsh environments
You want to know the difference with other torque? Many factors influence final tool selection, but there are some common grounds for comparing torque wrenches such as cost, weight, energy consumption, frequency of use...
| Criteria | Impact wrench (A) | Electronic torque wrench (B) | Pneumatic torque wrench (C) | Cordless torque wrench (D) | Hydraulic wrench (E) |
| Speed | Very fast | Moderate / controlled | Moderate / controlled | Slow / controlled | Slow / controlled |
| Price | Low to mid-range | Long-term value investment | Mid-range | Long-term value investment | Long-term value investment |
| Torque accuracy | Low | Very high precision | High precision | High precision | High precision |
| Weight / size | Compact | Lightweight | Medium | Compact | Lightweight |
| Accessibility | Moderate | Good | Moderate | Moderate | Tight access capable |
| Process traceability | No | Yes (CPLinQ) | No | Yes (CPLinQ) | No |
Industrial applications for hydraulic torque wrenches
Hydraulic torque wrenches are widely used across industries where safety, reliability, and precision are critical. These tools ensure accurate preload in bolted joints, reducing the risk of leakage, vibration, and failure.
Common applications include:
- Oil & gas and refineries: flange joints on pressure vessels and manways, BOP systems, and heat exchangers;
- Wind energy: bolting of tower flanges, blade roots;
- Power generation: high‑pressure flanges, steamvalves, and heat exchanger connections;
- Mining: wheel studs on haul trucks, crushers, processing equipment, and large slewing bearings onshovels and stackers;
- Construction: structural bolting and heavy equipment articulation points
Each industry has unique torque requirements, space constraints, and safety standards to consider.
Why these industries need controlled bolting?
- Increasing demand for safety compliance
- High-pressure and high-temperature environments
- Safety-critical joints requiring precise preload
- Reduction of downtime and maintenance costs
- Improved safety for operators and equipment
- Productivity boosted thanks to predictable performance across different tightening operations
Choosing the right tool requires careful consideration of the application environment, torque requirements, accessibility constraints, and operational efficiency. Trust Chicago Pneumatic bolting experts to help you choose the model best suited to your industry.
